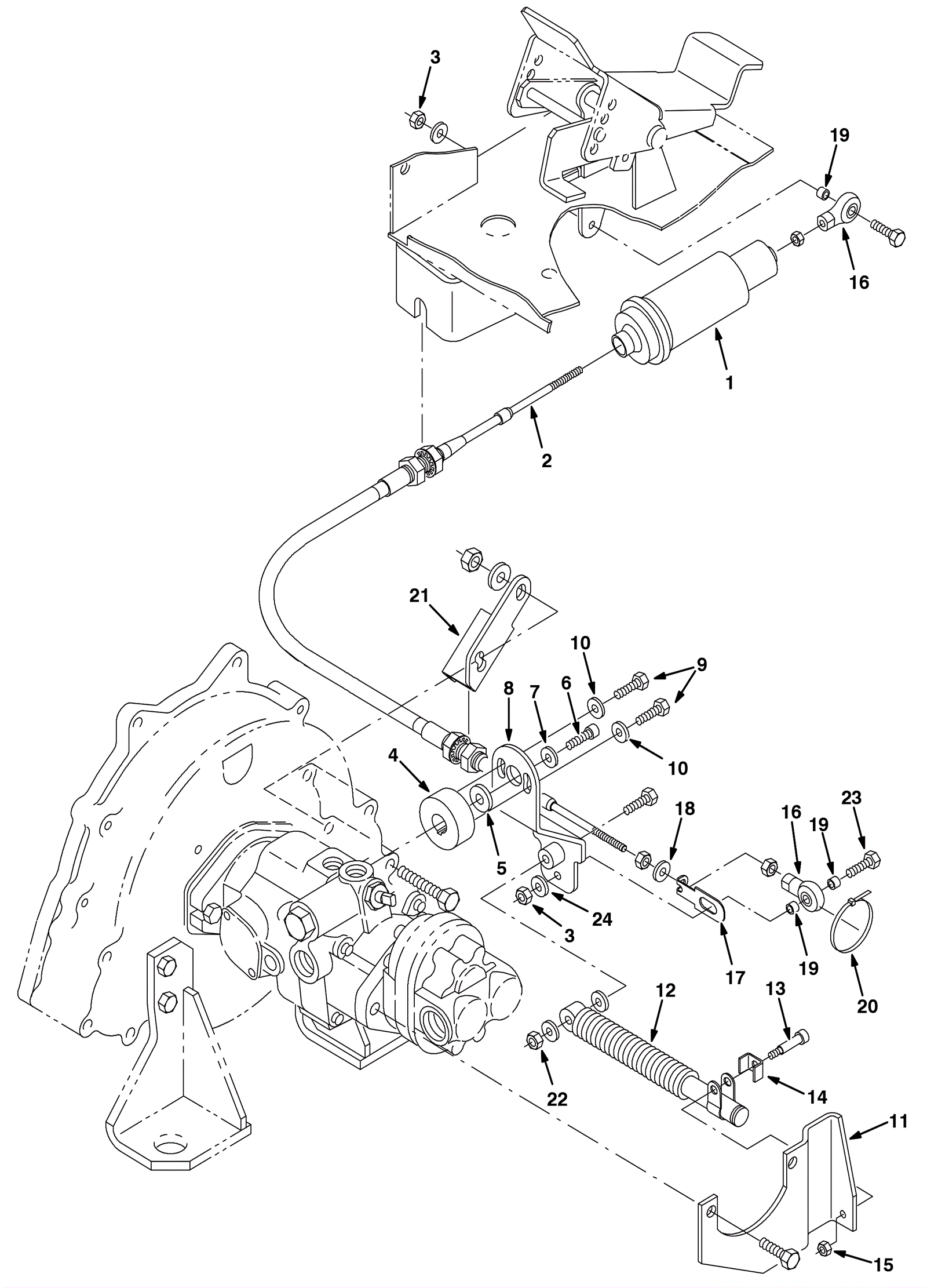

8210 Hydraulic Pump Linkage Assembly - Before SN 010000

#PartDescriptionPriceReqNotesAvailability
1 675-2924 SPRING ASSY, CENTERING, LBS . TRAVEL (Tennant Industrial $310.73 1 usually ships 10-16 days
2 675-4706 CABLE, PUSH / PULL, 047.0L .25-28/.25-28 (Tennant Industrial $703.31 1 usually ships 10-16 days
3 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 2 ships same day
4 175-7155 HUB, MTG, ARM, CNTRL, PINTLE (Tennant Industrial) $39.67 1 usually ships 1-5 days
5 175-7187 WASHER, FLAT, 0.33B 0.75D .18, STL, PL (Tennant Industrial) $11.50 1 usually ships 1-5 days
6 175-7156 SCREW, SOC, .31-24 X 0.75, AL (Tennant Industrial) $5.00 1 usually ships 1-5 days
7 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 1 ships same day
8 575-9034 LEVER WLDT, PINTLE (Tennant Industrial) $165.83 1 usually ships 10-16 days
9 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel $1.85 2 ships same day
10 999-1407 Washer 5/16 belleville $3.04 2 ships same day
11 575-2950 BRACKET, MTG, SHOCK (Tennant Industrial) $41.08 1 usually ships 10-16 days
12 275-3117 SHOCK ABSORBER, 2.3 STRK (Tennant Industrial) $177.37 1 usually ships 10-16 days
13 175-3285 Bolt 1/4-20 x 5/16-1 shoulder $6.82 1 usually ships 1-5 days
14 275-3114 BRACKET, RETAINER, SAFETY (Tennant Industrial) $17.00 1 usually ships 1-5 days
15 999-0609 Nut 1/4-20 hex stainless steel $0.99 1 ships same day
16 175-7212 ROD-END, 0.25-28RH FEM 0.25B [TEFLON] (Tennant Industrial) $68.68 2 usually ships 1-5 days
17 575-2335 BRACKET, CLIP, SAFETY (Tennant Industrial) $27.51 1 usually ships 10-16 days
18 175-7194 WASHER, FLAT, 0.25B 0.88D .06, NEO (Tennant Industrial) $5.17 1 usually ships 1-5 days
19 175-5327 Spacer $19.03 3 usually ships 10-16 days
20 175-2162 Nylon wire tie $3.04 1 usually ships 10-16 days
21 575-2952 BRACKET, MTG, CABLE, PROPEL (Tennant Industrial) $44.18 1 usually ships 10-16 days
22 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 1 ships same day
23 475-0401 SCREW, HEX, .25-20 X 1.75, G5 $5.28 1 usually ships 10-16 days
24 999-0123 Washer 1/4 SAE flat zinc plated $0.99 1 ships same day
