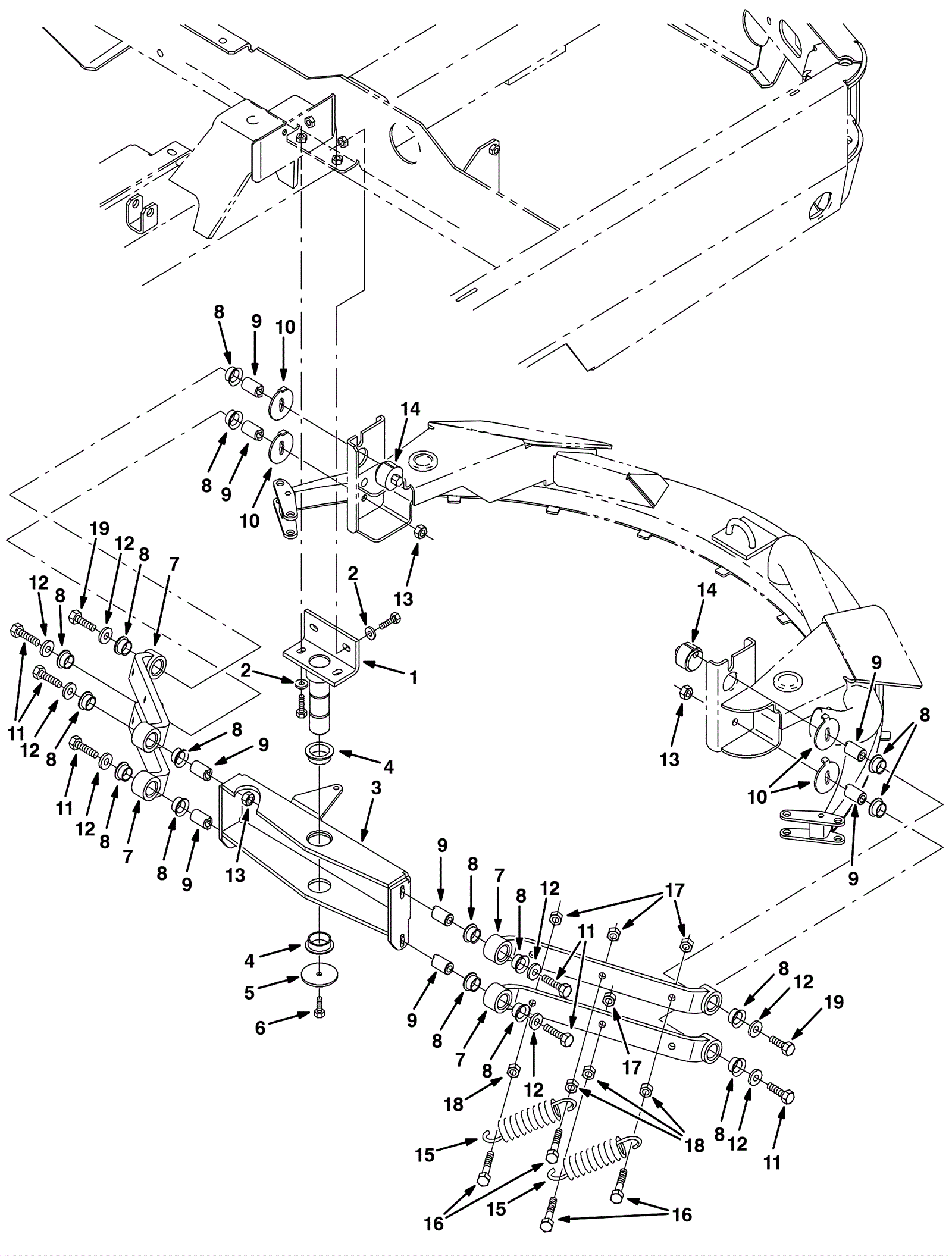

8210 Rear Squeegee Linkage Assembly

#PartDescriptionPriceReqNotesAvailability
1 675-2643 PIN WLDT, PIVOT (Tennant Industrial) $395.58 1 usually ships 5-16 days
2 999-1407 Washer 5/16 belleville $3.04 4 ships same day
3 675-2644 CHANNEL WLDT, PIVOT, SQGE, REAR (Tennant Industrial) $410.08 1 usually ships 5-16 days
4 575-5153 BUSHING, FLNG, 1.25B 1.41D 1.00L (Tennant Industrial) $54.84 2 usually ships 5-16 days
5 575-1880 WASHER, FLAT, 0.33B 2.25D .12, STL, PL (Tennant Industrial) $29.01 1 usually ships 5-16 days
6 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel $1.85 1 ships same day
7 675-3312 LINK, SQGE, REAR, MACH (Tennant Industrial) $487.76 4 usually ships 5-16 days
8 275-0082 Flange bushing .5b .59d .38l $10.23 16 usually ships 1-5 days
9 575-1328 TUBE, MACH, 0.41ID 0.75OD 1.2L, SS (Tennant Industrial) $24.50 8 usually ships 5-16 days
10 575-2653 WASHER, FLAT, ADJ, SLTD, 2.00D .12, STL (Tennant Industrial) $25.05 4 usually ships 5-16 days
11 175-0792 Bolt M10-1.5 x 60mm hex head stainless steel $6.82 6 usually ships 5-16 days
12 175-2367 Steel plated washer $3.70 8 usually ships 1-5 days
13 999-1120 Nut M10-1.5 nylon insert lock stainless steel $3.92 6 ships same day
14 575-6884 CAM, HEX (Tennant Industrial) $102.69 2 usually ships 5-16 days
15 575-3342 SPRING, EXTN, 1.40OD 0.16WIR 03.8L (Tennant Industrial) $44.84 4 usually ships 5-16 days
16 275-2056 SCREW, HEX, M8 X 1.25 X 50, FL, SS (Tennant Industrial) $6.17 8 usually ships 1-5 days
17 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 8 ships same day
18 999-1424 Nut M8-1.25 hex stainless steel $1.65 8 ships same day
19 275-8450 Screw M10-1.5 x 50mm stainless steel $8.25 2 usually ships 1-5 days
