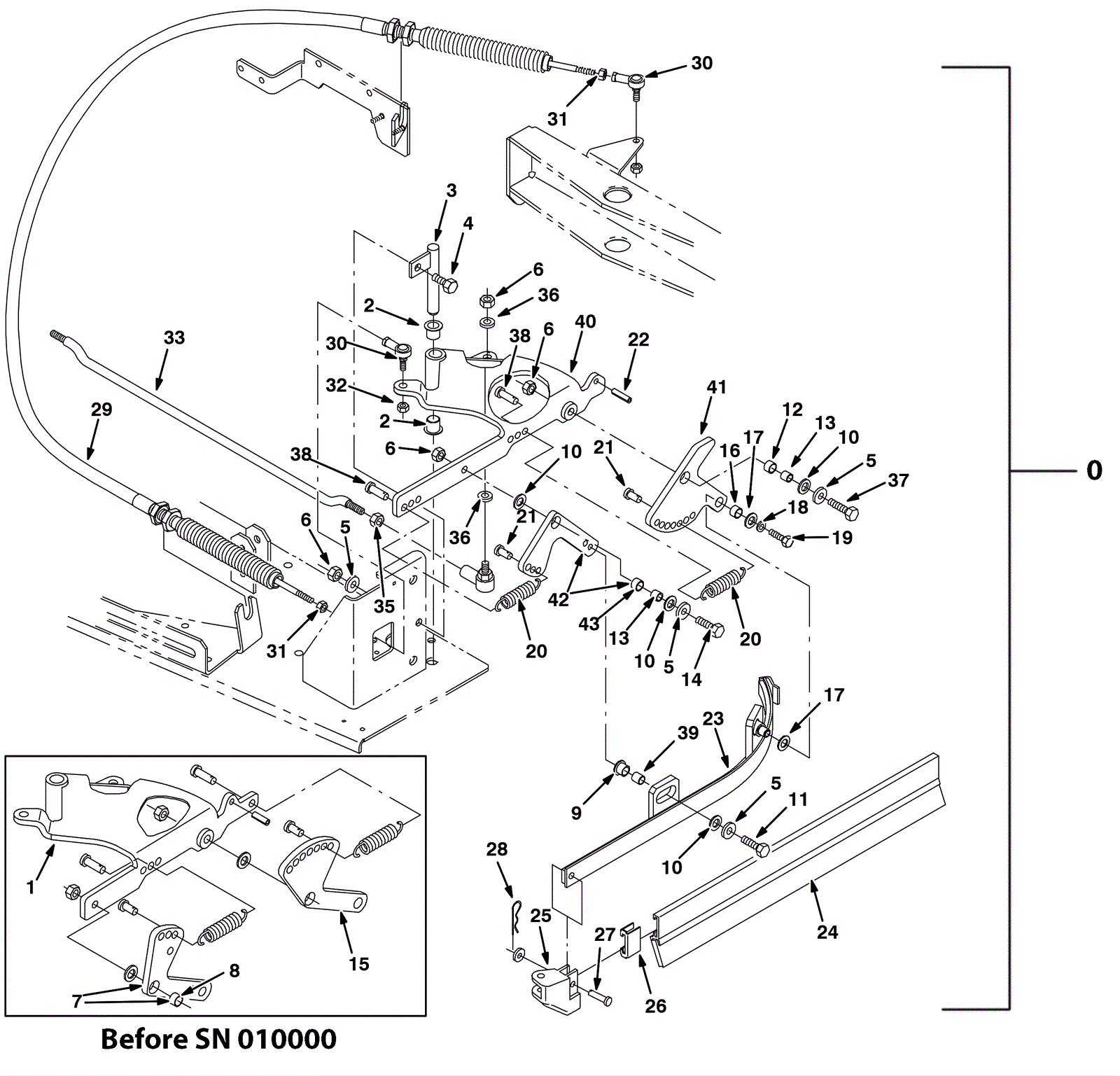

8210 Left Side Squeegee Assembly

#PartDescriptionPriceReqNotesAvailability
0 675-7179 SQUEEGEE ASSY, LH [8200/8210] (Tennant Industrial) $1,850.36 1 usually ships 5-16 days
1 675-3833 BRACKET WLDT, MTG, SIDE SQGE, LH (OBSOLETE) $372.41 1 (before SN 010000) usually ships 5-16 days
2 575-0534 BUSHING, FLNG, 0.63B 0.72D 0.75L (Tennant Industrial) $16.67 2 usually ships 5-16 days
3 675-0504 PIN WLDT, PIVOT, SQGE (Tennant Industrial) $231.88 1 usually ships 5-16 days
4 999-1372 Bolt M10-1.5 x 25mm hex head stainless steel $3.56 1 ships same day
5 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 4 ships same day
6 999-1120 Nut M10-1.5 nylon insert lock stainless steel $3.92 5 ships same day
7 575-9044 ARM ASSY, SQGE, SIDE, FRONT (OBSOLETE) $93.85 1 (includes 8) (before SN 010000) usually ships 5-16 days
8 175-3349 Sleeved bushing $12.65 1 (before SN 010000) ships same day
9 575-0765 BUSHING, FLNG, 0.63B 0.75D 0.50L (Tennant Industrial) $18.34 1 usually ships 5-16 days
10 175-3347 Washer .61 thrust $5.50 5 ships same day
11 999-0774 Bolt M10-1.5 x 30mm hex head stainless steel full thread $0.99 1 ships same day
12 175-3349 Sleeved bushing $12.65 1 ships same day
13 175-9532 Bearing sleeve 5/8 x 33/64 $17.16 2 usually ships 5-16 days
14 999-0246 Bolt M10-1.5 x 35mm hex head full thread $1.28 1 ships same day
15 575-9596 BELLCRANK, SQGE, REAR, LH (OBSOLETE) $119.74 1 (before SN 010000) usually ships 5-16 days
16 175-3355 Sleeved bushing $6.82 1 usually ships 5-16 days
17 175-3354 Thrust washer $9.90 2 usually ships 5-16 days
18 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 1 ships same day
19 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel $1.85 1 ships same day
20 175-0770 Extension spring $5.50 2 usually ships 5-16 days
21 275-0146 PIN, CLEVIS, 0.37D X 0.75L (Tennant Industrial) $5.17 2 usually ships 5-16 days
22 475-8942 PIN, ROLL, .312D X 1.00L, .312/.318 (Tennant Industrial) $21.67 1 usually ships 5-16 days
23 675-3751 FRAME WLDT, SQGE, SIDE, LH (OBSOLETE) $389.61 1 usually ships 5-16 days
24a 575-9712 BLADE ASSY, SQGE, SIDE [linatex] (OBSOLETE) $173.18 1 usually ships 5-16 days
24b 675-3890 SQUEEGEE, SIDE, URE [MP1000] (Tennant Industrial) $392.45 1 usually ships 5-16 days
25 575-6796 GUIDE, SQGE, SIDE (Tennant Industrial) $104.52 1 usually ships 5-16 days
26 175-3357 Squeegee blade retainer $11.22 1 ships same day
27 175-3351 Clevis pin $4.09 1 ships same day
28 175-7107 Cotter hair pin $3.04 1 usually ships 5-16 days
29 675-5175 CABLE, PUSH / PULL, 060.0L .31-24/.31-24 (Tennant Industrial $819.83 1 usually ships 5-16 days
30 575-6077 ROD-END, 0.31-24RH FEM 0.31-24STUD (Tennant Industrial) $81.85 2 usually ships 5-16 days
31 175-0849 Nut 5/16-24 hex $3.30 2 usually ships 1-5 days
32 999-0296 Nut 5/16-24 nylon insert lock stainless steel $0.99 2 ships same day
33 575-9148 ROD, THRD (Tennant Industrial) $171.34 1 usually ships 5-16 days
34 175-0779 ROD-END, M10 X 1.5RH FEM M10 X 1.5STUD (Tennant Industrial) $74.01 1 usually ships 5-16 days
35 999-1625 Nut M10-1.5 hex jam stainless steel $1.54 1 ships same day
36 999-0032 Washer 3/8 USS flat plain finish $2.42 2 ships same day
37 275-8450 Screw M10-1.5 x 50mm stainless steel $8.25 1 usually ships 1-5 days
38 275-2753 PIN, CLEVIS, 0.38D X 1.13L (Tennant Industrial) $6.17 2 usually ships 5-16 days
39 575-2143 TUBE, 0.41ID 0.62OD 00.6L, SS, CHAM (OBSOLETE) $26.22 1 usually ships 5-16 days
40 675-3238 ARM WLDT, LH (Tennant Industrial) $619.57 1 (after SN 009999) usually ships 5-16 days
41 575-8457 BELLCRANK, SQGE, REAR, LH (Tennant Industrial) $144.36 1 (after SN 009999) usually ships 5-16 days
42 575-9629 ARM ASSY, SQGE, SIDE, FRONT [W/ GM ENG] (Tennant Industrial) $158.82 1 (includes 43) (after SN 009999) usually ships 5-16 days
43 175-3349 Sleeved bushing $12.65 1 (after SN 009999) ships same day
