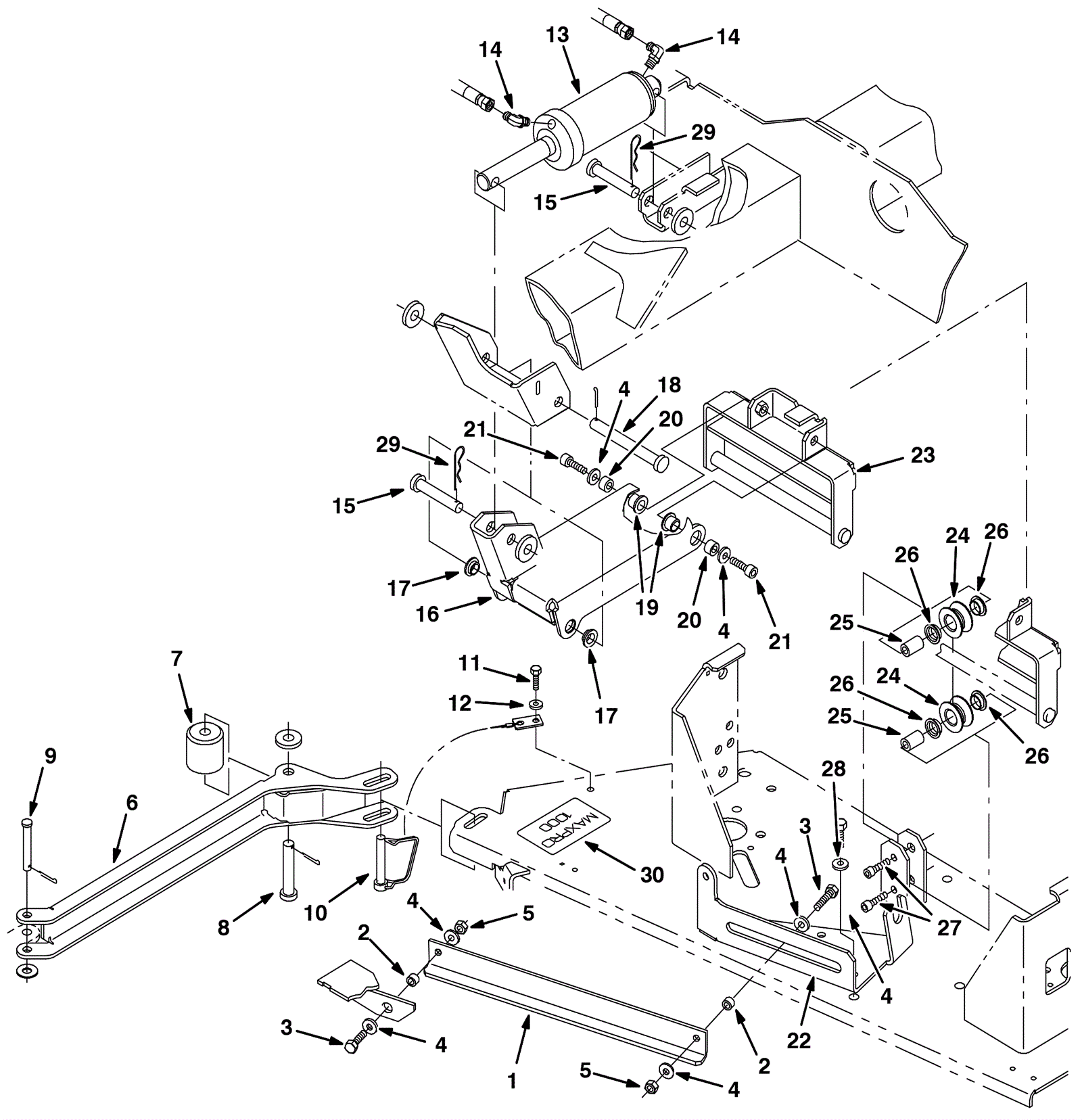

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
575-3042
|
BRACKET, ANGLE, STOP, SCB HEAD (Tennant Industrial) |
1 |
|
|
2 |
175-2263
|
Sleeve |
2 |
|
|
3 |
999-0785
|
Screw M8-1.25 x 30mm hex head stainless steel |
2 |
|
|
4 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
9 |
|
|
5 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
2 |
|
|
6 |
675-2662
|
GUARD, KICK, HEAD, SCB [MAXPRO] (Tennant Industrial) |
1 |
|
|
7 |
175-0742
|
TUBE, 0.52ID 1.75OD 01.6L, STL (Tennant Industrial) |
1 |
|
|
8 |
175-0716
|
Clevis pin |
1 |
|
|
9 |
175-0743
|
PIN, CLEVIS, 0.38D X 2.50L (Tennant Industrial) |
1 |
|
|
10 |
275-6555
|
Pin assembly (Tennant Industrial) |
1 |
|
|
11 |
175-6939
|
Screw M5 x 16mm stainless steel |
1 |
|
|
12 |
999-0998
|
Washer #10 flat stainless steel |
1 |
|
|
13 |
175-6917
|
Cylinder (Tennant Industrial) |
1 |
|
|
14 |
175-6919
|
Elbow fitting |
2 |
|
|
15 |
175-2382
|
Clevis pin |
2 |
|
|
16 |
675-2062
|
ARM WLDT, LIFT, SCB HEAD (Tennant Industrial) |
1 |
|
|
17 |
175-3335
|
Flanged bushing |
2 |
|
|
18 |
175-0720
|
Clevis pin 1/2D x 5 1/2 |
1 |
|
|
19 |
175-2099
|
Flanged bushing |
2 |
|
|
20 |
175-0755
|
Sleeve |
2 |
|
|
21 |
475-9673
|
SCREW, SOC, M8 X 1.25 X 20, 12.9 (Tennant Industrial) |
2 |
|
|
22 |
575-6165
|
BRACKET, STOP, KICK IN, SCB HEAD (Tennant Industrial) |
1 |
|
|
23 |
675-3821
|
ARM WLDT, LIFT, SCB HEAD (Tennant Industrial) |
1 |
|
|
24 |
175-0753
|
ROLLER, V-GROOVE, 1.5D 0.72B 0.8L [STL] (Tennant Industrial |
2 |
|
|
25 |
175-2563
|
Sleeve |
2 |
|
|
26 |
175-2099
|
Flanged bushing |
4 |
|
|
27 |
475-9347
|
SCREW, SOC, M8 X 1.25 X 45, 12.9 (Tennant Industrial) |
2 |
|
|
28 |
999-0501
|
Bolt M8-1.25 x 25mm hex head full thread stainless steel |
3 |
|
|
29 |
175-2117
|
Cotter pin |
2 |
|
|
30 |
175-0736
|
LABEL SET, INFO/HZRD [MAXPRO] (Tennant Industrial) |
1 |
|
|
