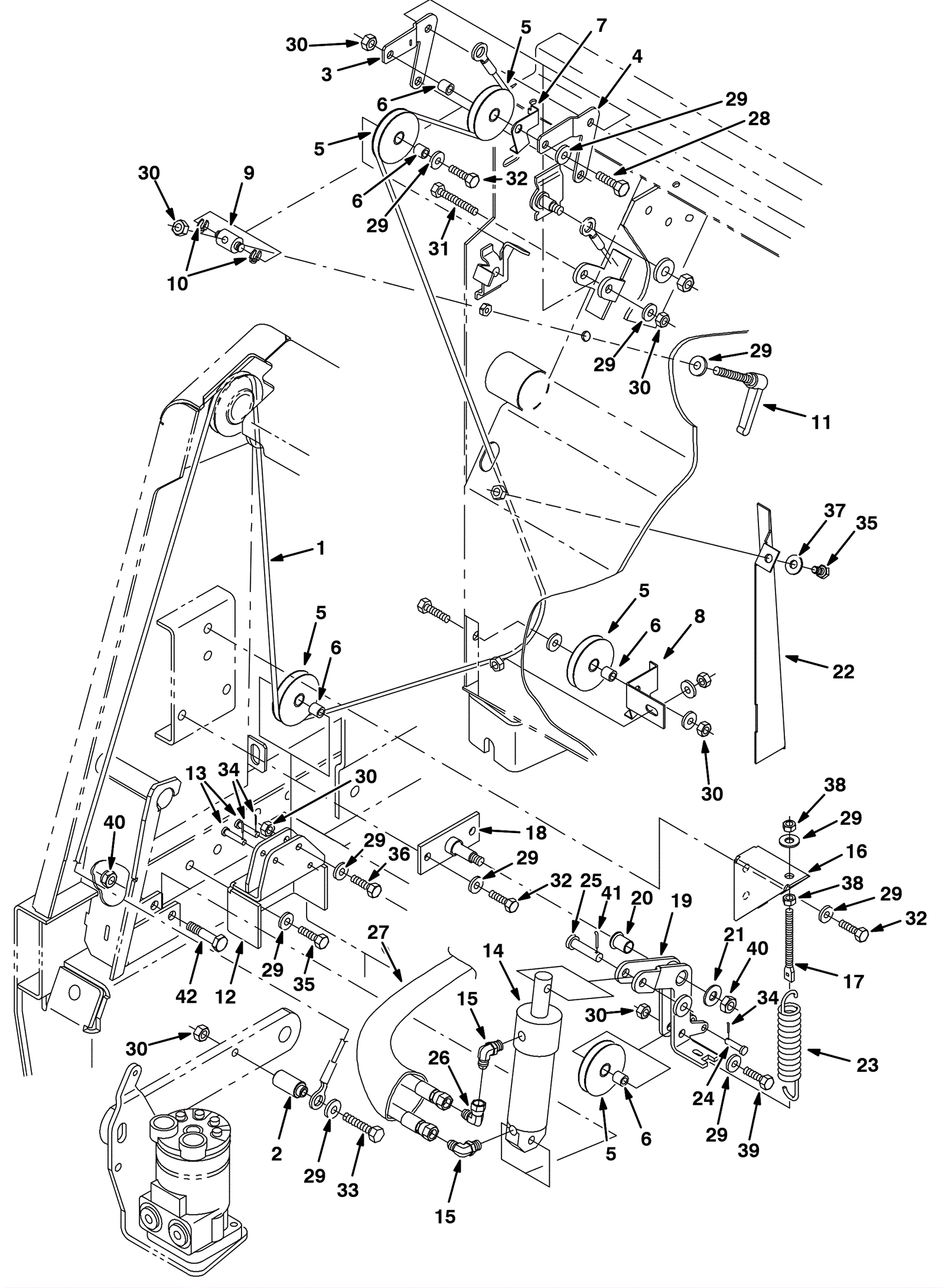

8210 Side Brush Lift Assembly

#PartDescriptionPriceReqNotesAvailability
1 575-8093 CABLE, GLV .19D 119.6L .55EYE /.55EYE (OB SOLETE) $134.69 1 usually ships 5-16 days
2 475-9799 TUBE, MACH, 0.32ID 0.75OD 1.6L, SS (Tennant Industrial) $14.84 1 usually ships 5-16 days
3 575-0649 BELLCRANK, LIFT, BRUSH, ADJ, RH (Tennant Industrial) $10.02 1 usually ships 5-16 days
4 575-0781 BELLCRANK, LIFT, BRUSH, ADJ, LH (Tennant Industrial) $10.69 1 usually ships 5-16 days
5 275-3229 PULLEY, CABLE, 2.5D 0.50B, .22D CABLE (Tennant Industrial) $94.69 5 usually ships 5-16 days
6 175-2249 Sleeve $3.83 5 ships same day
7 575-2409 ANGLE, KEEPER, CABLE (Tennant Industrial) $38.08 1 usually ships 5-16 days
8 575-1910 BRACKET, KEEPER, CABLE (Tennant Industrial) $23.88 1 usually ships 5-16 days
9 575-7541 BLOCK, ADJ, PIVOT (Tennant Industrial) $87.68 1 usually ships 5-16 days
10 275-8506 RING, RETAINING, EXT, 0.38D, [KLIPRING] (Tennant Industrial $5.17 2 usually ships 5-16 days
11 575-5088 LEVER, ADJ, METAL (Tennant Industrial) $53.84 1 usually ships 5-16 days
13 475-8574 PIN, CLEVIS, 0.25D X 1.12L (Tennant Industrial) $5.00 2 usually ships 5-16 days
14 275-6034 Cylindrical head (Tennant Industrial) $593.45 1 usually ships 5-16 days
15 175-6919 Elbow fitting $14.30 2 usually ships 5-16 days
17 275-3039 BOLT, EYE, .31-18 X 3.75, 0.18 EYE (Tennant Industrial) $21.67 1 usually ships 1-5 days
19 575-8978 LEVER WLDT (Tennant Industrial) $92.02 1 usually ships 5-16 days
20 575-1488 BUSHING, FLNG, 0.50B 0.60D 0.75L (Tennant Industrial) $19.04 1 usually ships 5-16 days
21 999-0033 Washer 7/16 SAE flat $0.99 1 ships same day
23 275-3038 SPRING, EXTN, 1.00OD 0.16WIR 05.4L (Tennant Industrial) $43.51 1 usually ships 1-5 days
24 175-9172 PIN, CLEVIS, 0.25D X 1.25L (Tennant Industrial) $5.17 1 usually ships 1-5 days
25 175-2111 Clevis pin $4.75 1 ships same day
26 275-9441 FITTING, HYD, E90, JF04/JM04 (Tennant Industrial) $12.84 1 usually ships 1-5 days
27 375-3797 Nylon sleeve (Tennant Industrial) $10.00 1 usually ships 5-16 days
28 999-0248 Bolt M8-1.25 x 30mm hex head full thread plain finish $0.99 16 ships same day
29 999-0024 Washer 5/16 flat stainless steel $1.34 9 ships same day
30 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 1 ships same day
31 175-3163 Screw M8-1.25 x 60mm hex head $4.09 5 usually ships 5-16 days
32 999-0581 Bolt M8-1.25 x 25mm hex head full thread zinc $0.99 1 ships same day
33 475-8007 SCREW, HEX, M8 X 1.25 X 65, 8.8 (Tennant Industrial) $5.00 3 usually ships 5-16 days
34 275-3232 PIN, COTTER, .062 X 1.00 (Tennant Industrial) $4.60 3 usually ships 5-16 days
36 175-0634 Bolt M8-1 1/4 x 35mm hex head $4.09 2 usually ships 1-5 days
37 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 2 ships same day
38 999-0430 Nut 5/16-18 hex jam plain finish $0.99 1 ships same day
39 175-0634 Bolt M8-1 1/4 x 35mm hex head $4.09 2 usually ships 1-5 days
40 999-1120 Nut M10-1.5 nylon insert lock stainless steel $3.92 1 ships same day
41 175-2588 Cotter pin $3.04 1 usually ships 5-16 days
42 175-3259 Screw M10-1.5 x 45mm hex head $4.88 1 usually ships 1-5 days
