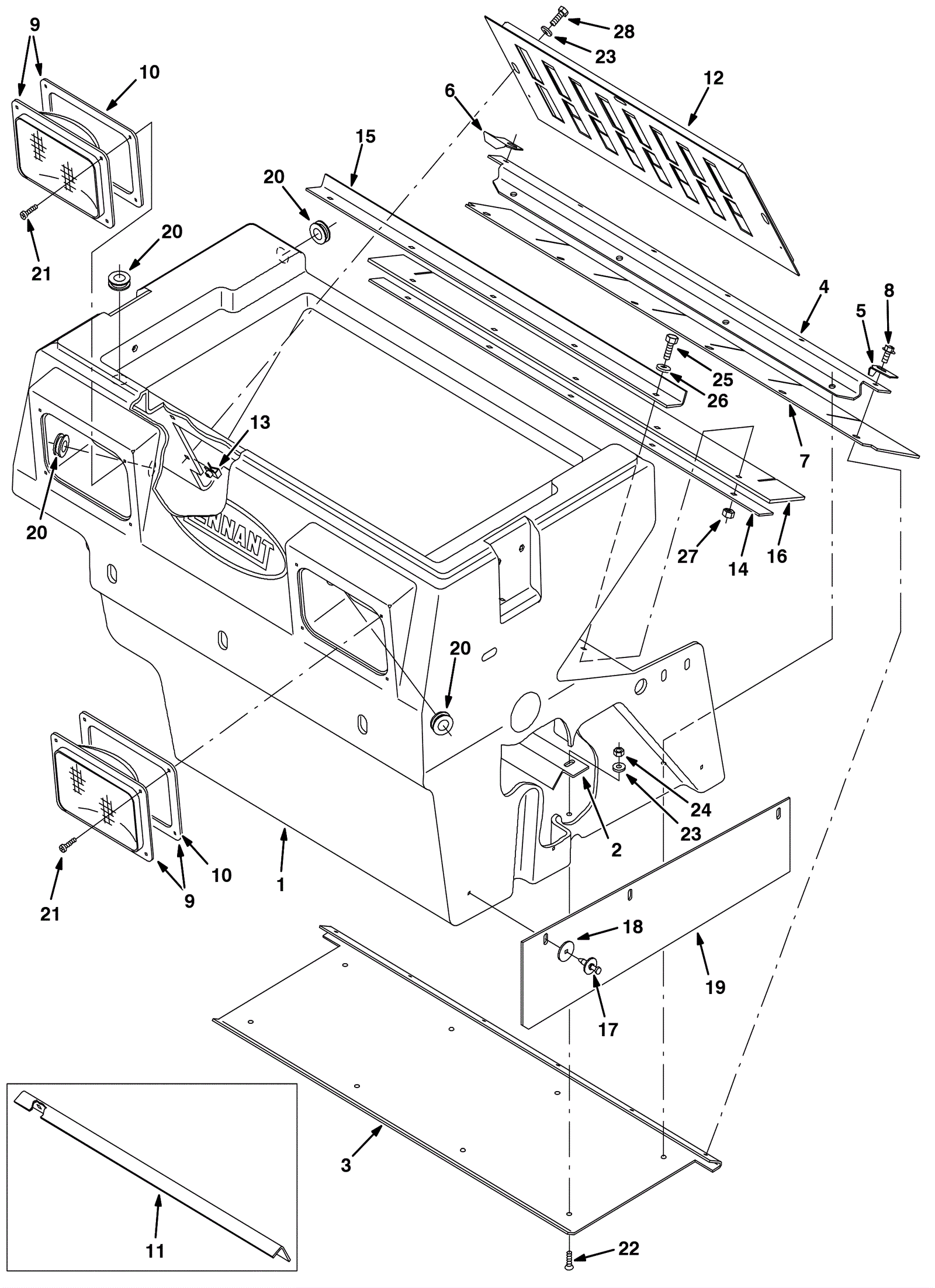

8210 Hopper Assembly

#PartDescriptionPriceReqNotesAvailability
1 675-6017 HOPPER [8200] (Tennant Industrial) $647.96 1 usually ships 5-16 days
2 575-7850 BRACKET, BOTTOM, HPPR (Tennant Industrial) $132.36 1 usually ships 5-16 days
3 675-4403 PLATE, HPPR, WEAR (Tennant Industrial) $658.63 1 usually ships 5-16 days
4 575-7140 RETAINER, SKIRT, .12, 1.7W X 33.5L, BLK (Tennant Industrial) $117.86 1 usually ships 5-16 days
5 575-2313 DEFLECTOR, HPPR, LH (Tennant Industrial) $27.51 1 usually ships 5-16 days
6 575-2314 DEFLECTOR, HPPR, RH (Tennant Industrial) $27.51 1 usually ships 5-16 days
7 575-6075 SKIRT, NEO, .12, 05.20W 35.10L, 06/ SL (Tennant Industrial) $86.18 1 usually ships 5-16 days
8 175-3166 Bolt M6-1 x 16mm hex head $4.88 6 usually ships 5-16 days
9a 675-0202 HEADLIGHT, 12VDC, 32CP 2.1A [1230023] (Tennant Industrial) $211.71 2 (includes 9b and 10) usually ships 5-16 days
9b 275-0587 Lamp 12VDC 2.1A $18.37 1 usually ships 1-5 days
10 575-0001 SEAL, RBR, CLSD, 0.19, HEADLIGHT (Tennant Industrial) $12.50 1 usually ships 5-16 days
11 675-4693 BRACKET, HPPR, UPPER (Tennant Industrial) $594.85 1 (before SN 001100) usually ships 5-16 days
12a 675-0267 HDWR KIT, PERMA-FILTER (Tennant Industrial) $190.05 1 (before SN 001100) usually ships 5-16 days
12b 675-1923 PANEL WLDT, PERMA-FILTER (Tennant Industrial) $339.73 1 (after SN001099) usually ships 5-16 days
13 475-8966 NUT, U, M6 X 1.00 (Tennant Industrial) $7.85 3 usually ships 5-16 days
14 575-6672 RETAINER, SEAL, DOOR, HPPR (Tennant Industrial) $83.83 1 usually ships 5-16 days
15 575-4693 BRACKET, SPPT, HPPR (Tennant Industrial) $65.51 1 usually ships 5-16 days
16 575-4781 SEAL, HPPR (Tennant Industrial) $68.68 1 usually ships 5-16 days
17 175-3378 Rivet 1/4 x 57/64 plastic $3.83 3 usually ships 5-16 days
18 999-1288 Washer 1/4 x 1 OD fender stainless steel $0.99 3 ships same day
19 575-6289 SKIRT, NEO, .12, ANGLE, 22.97L, 03/ SL (Tennant Industrial) $90.18 1 usually ships 5-16 days
20 275-3903 GROMMET, RBR, 0.69ID, F/1.0H, .25 MATL (Tennant Industrial) $5.00 4 usually ships 1-5 days
21 999-1352 Screw 10-14 x 3/4 phillips pan head plastic thread rolling $5.06 8 ships same day
22 999-1282 Screw M6-1 x 25mm flat head phillips zinc $0.99 8 ships same day
23 999-0123 Washer 1/4 SAE flat zinc plated $0.99 11 ships same day
24 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 8 ships same day
25 999-0248 Bolt M8-1.25 x 30mm hex head full thread plain finish $0.99 5 ships same day
26 999-0024 Washer 5/16 flat stainless steel $1.34 5 ships same day
27 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 5 ships same day
28 999-0518 Bolt M6-1 x 25mm hex head full thread zinc $0.99 3 ships same day
