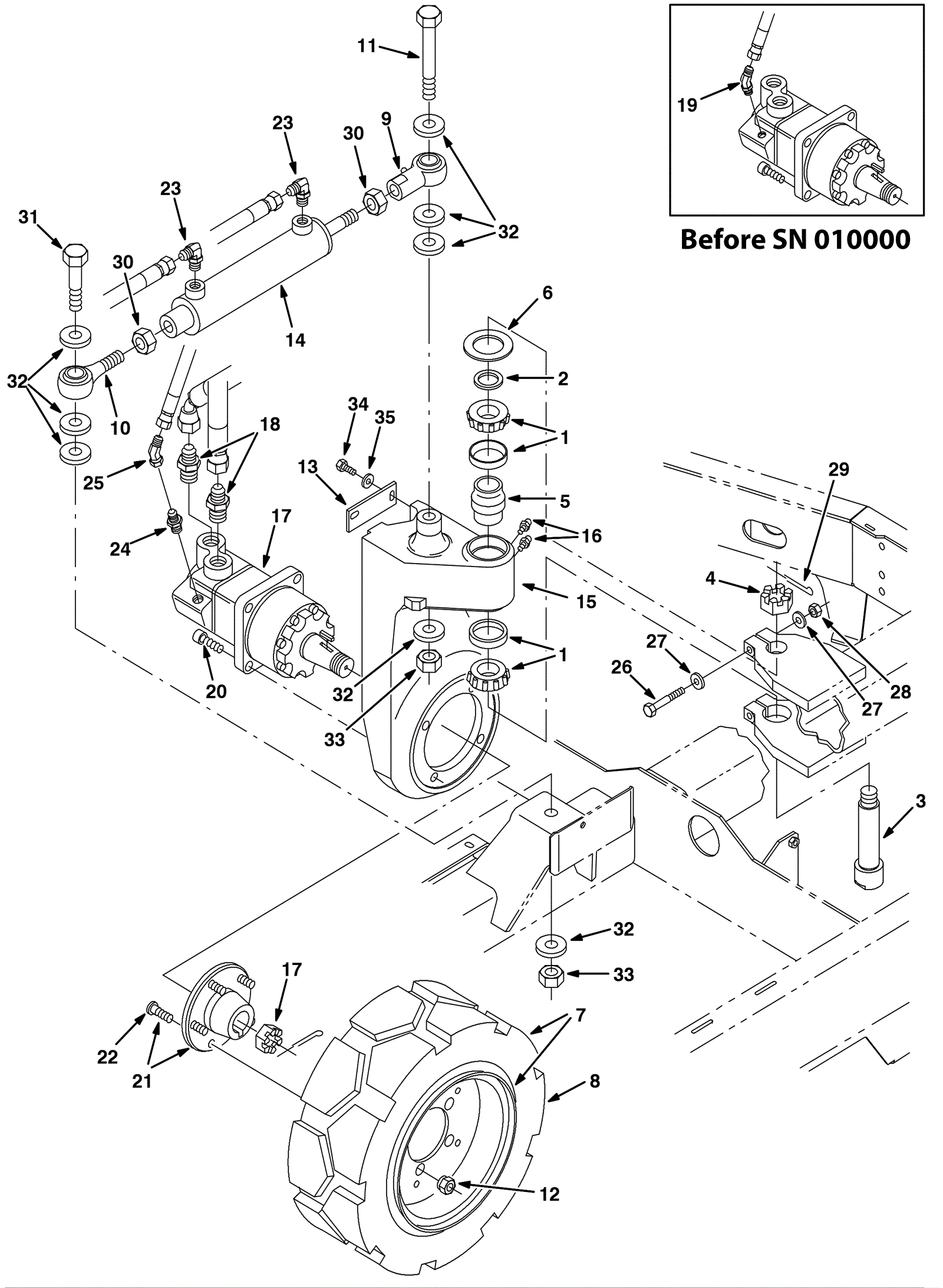

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
175-3253
|
Bearing assembly cup/cone |
2 |
|
|
2 |
175-6776
|
WASHER, FLAT, 1.26B 1.88D .13, STL (Tennant Industrial) |
1 |
|
|
3 |
675-0448
|
BOLT, SHLD, 1.25D X 4.45L,1.0-20 DRILLED (Tennant Industrial |
1 |
|
|
4 |
175-0640
|
NUT, HEX, SLTD, 1.00-20 (Tennant Industrial) |
1 |
|
|
5 |
575-3166
|
SEAL, GREASE CAV (Tennant Industrial) |
1 |
|
|
6 |
475-9172
|
WASHER, FLAT, 1.91B 3.00D .16, FELT (Tennant Industrial) |
1 |
|
|
7 |
675-7833
|
TIRE, DRIVE, SCRBR, NON-SKID, 16.0X6.0 (Tennant Industrial) |
1 |
(includes 8) |
|
8 |
N/A
|
Not available |
1 |
(non-skid tire) |
|
9 |
575-9233
|
ROD-END, 0.75-16RH FEM 0.75B (Tennant Industrial) |
1 |
|
|
10 |
575-9134
|
ROD-END, 0.75-16RH MAL 0.75B [PTFE] (Tennant Industrial) |
1 |
|
|
11 |
575-0706
|
SCREW, HEX, .75-10 X 5.00, G5 (Tennant Industrial) |
1 |
|
|
12 |
175-6797
|
NUT, WHEEL, .50-20 X 60 ANGLE (Tennant Industrial) |
5 |
|
|
13 |
375-0682
|
Flat steel bar (Tennant Industrial) |
1 |
|
|
14 |
275-4108
|
CYLINDER, HYD, 2.0B 15.0L 08.00STRK 1500 (Tennant Industria |
1 |
|
|
15 |
675-6842
|
HOUSING, SPPT, DRIVE, REAR (Tennant Industrial) |
1 |
|
|
16 |
175-6778
|
FITTING, GREASE, STR PM04 .63L (Tennant Industrial) |
2 |
|
|
17a |
275-7147
|
MOTOR, HYD, GEAR, INT 19.0 BI-DIR 3000 (TENNANT INDUSTRIAL) |
1 |
(before SN 010000) |
|
17b |
375-0665
|
Internal hydraulic gear motor (Tennant Industrial) |
1 |
(after SN 009999) |
|
18 |
275-2897
|
FITTING, HYD, STR, JM10/OM12 (Tennant Industrial) |
2 |
|
|
19 |
175-6918
|
FITTING, HYD, E45, JM04/OM04 (Tennant Industrial) |
1 |
(before SN 010000) |
|
20 |
375-0668
|
Screw 1/2-13 x 1 1/2 socket aluminum (Tennant Industrial) |
4 |
|
|
21 |
275-4793
|
HUB ASSY, WHEEL, 5 BOLT 4.50BC TAPER B (Tennant Industrial) |
1 |
(includes 22) |
|
22 |
375-0669
|
Wheel stud (Tennant Industrial) |
5 |
|
|
23 |
175-7214
|
Hydraulic fitting |
2 |
|
|
24 |
175-6968
|
FITTING, HYD, STR, JM04/OM06 (Tennant Industrial) |
1 |
(after SN 009999) |
|
25 |
575-1733
|
FITTING, HYD, E45, JF04/JM04 (Tennant Industrial) |
1 |
(after SN 009999) |
|
26 |
275-2926
|
SCREW, HEX, M10 X 1.50 X 70, 8.8 (Tennant Industrial) |
2 |
|
|
27 |
999-0120
|
Washer 3/8 SAE flat |
4 |
|
|
28 |
999-1120
|
Nut M10-1.5 nylon insert lock stainless steel |
2 |
|
|
29 |
275-0418
|
Cotter pin 5/32 x 2 |
1 |
|
|
30 |
475-9195
|
NUT, HEX, STD, .75-16 (Tennant Industrial) |
2 |
|
|
31 |
375-0687
|
Screw 3/4-10 x 3 1/4 hex head grade 5 (Tennant Industrial) |
1 |
|
|
32 |
999-0630
|
Washer 3/4 SAE flat |
7 |
|
|
33 |
275-2942
|
NUT, HEX, LOCK, .75-10, NL (Tennant Industrial) |
2 |
|
|
35 |
999-0024
|
Washer 5/16 flat stainless steel |
2 |
|
|
