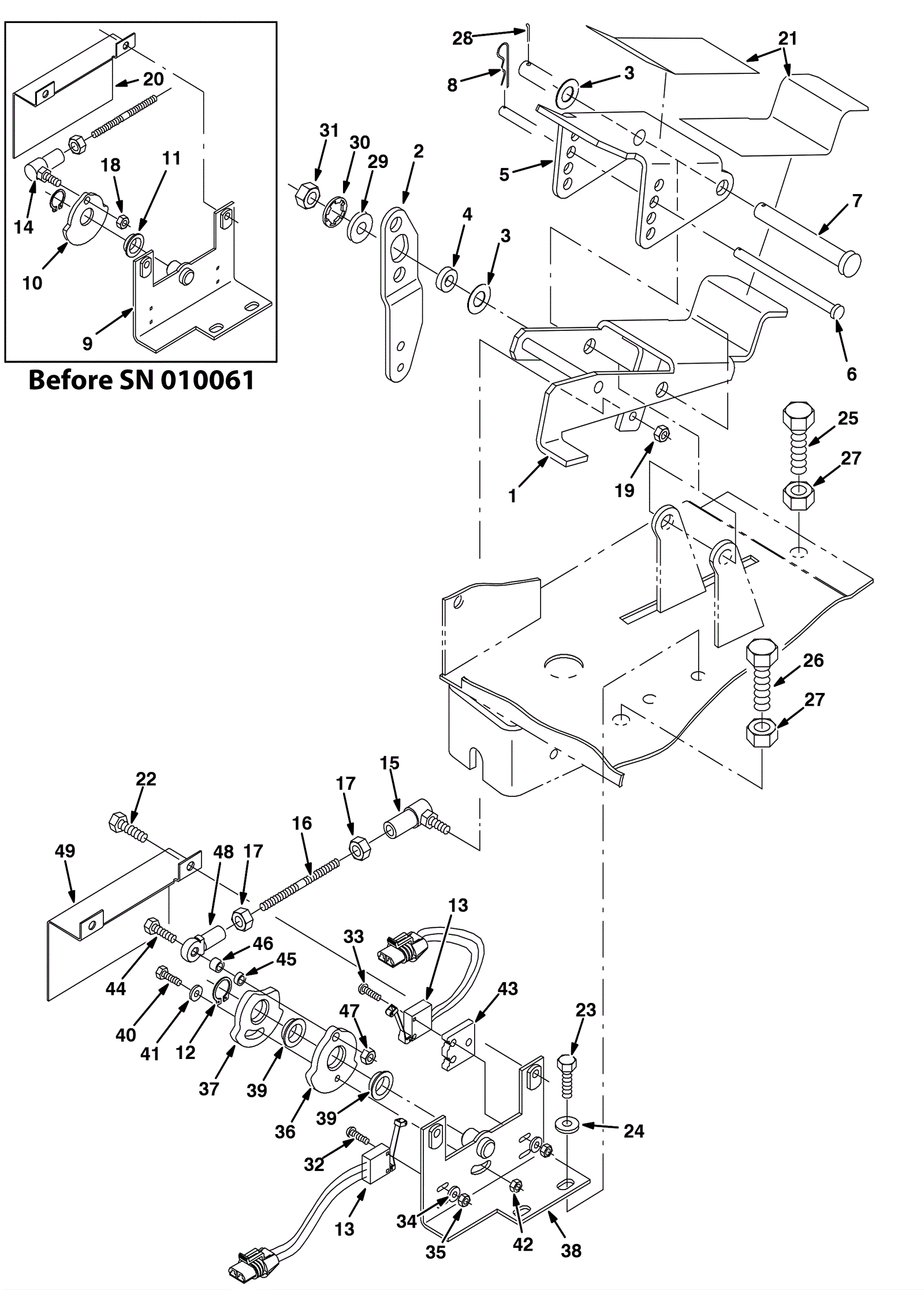

8210 Directional Pedal Assembly

#PartDescriptionPriceReqNotesAvailability
1 675-1544 PEDAL WLDT, LOWER (Tennant Industrial) $333.73 1 usually ships 10-13 days
2 675-4475 ARM, PEDAL, FOOT [8210] (Tennant Industrial) $602.62 1 usually ships 10-13 days
3 175-7812 Washer flat $5.28 3 ships same day
4 475-8151 WASHER, FLAT, 0.39B 0.81D .25, RBR (Tennant Industrial) $23.50 1 usually ships 10-13 days
5 275-2975 PEDAL, PROPEL, UPPER (Tennant Industrial) $51.34 1 usually ships 10-13 days
6 275-2976 PIN, CLEVIS, 0.37D X 4.50L (Tennant Industrial) $6.67 1 usually ships 10-13 days
7 175-2116 Clevis pin $6.49 1 usually ships 10-13 days
8 275-2977 PIN, COTTER, HAIR, 13MMD 3MM WIR (Tennant Industrial) $6.50 1 usually ships 1-5 days
9 575-5553 BRACKET WLDT, MTG, CAM SWITCH (Tennant Industrial) $71.68 1 (before SN 010061) usually ships 10-13 days
10 575-9314 CAM (Tennant Industrial) $186.70 1 (before SN 010061) usually ships 10-13 days
11 175-2099 Flanged bushing $10.01 1 (before SN 010061) usually ships 10-13 days
12 475-8149 RING, RETAINING, EXT, 0.62D (Tennant Industrial) $5.33 1 usually ships 10-13 days
13 575-9128 SWITCH ASSY, SNAP, 10A (Tennant Industrial) $131.93 2 usually ships 10-13 days
14 175-3302 Balljoint 1/4-28 $10.01 1 (before SN 010061) usually ships 10-13 days
15 575-1763 BALLJOINT, .25-28 LH FEM, .25-28 MAL (Tennant Industrial) $23.84 1 usually ships 10-13 days
16 575-6166 ROD, THRD, 2 END, .25-28 03.4L, 1LEFT (Tennant Industrial) $132.03 1 usually ships 10-13 days
17 999-1201 Nut 1/4-28 nylon insert lock hex stainless steel $0.99 2 ships same day
18 999-0718 Nut 1/4-28 hex jam zinc plated $0.99 1 (before SN 010061) ships same day
19 375-3643 Nut (Tennant Industrial) $6.67 1 usually ships 10-13 days
21 275-2978 TREAD, NON-SKID, 02.2W 15.5L (Tennant Industrial) $12.50 1 usually ships 1-5 days
22 175-5113 Bolt M6 x 12mm hex head $3.30 2 usually ships 1-5 days
24 999-0024 Washer 5/16 flat stainless steel $1.34 2 ships same day
25 175-3266 Bolt 10mm-1 1/2 x 50 hex head $4.22 1 usually ships 1-5 days
26 999-9081 Screw M10-1.5 x 65mm hex head stainless steel $2.99 1 ships same day
27 999-0767 Nut M10-1.5 hex coarse thread $0.99 2 ships same day
28 275-2977 PIN, COTTER, HAIR, 13MMD 3MM WIR (Tennant Industrial) $6.50 1 usually ships 1-5 days
29 999-0032 Washer 3/8 USS flat plain finish $2.42 1 ships same day
30 999-0120 Washer 3/8 SAE flat $0.99 1 ships same day
31 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 1 ships same day
32 999-1040 Screw M3-.5 x 20mm pan head $0.99 1 ships same day
34 999-1305 Washer M3 split lock stainless steel $0.99 2 ships same day
35 999-0768 Nut M3-.5 hex coarse thread plain finish $1.54 2 ships same day
36 575-4044 CAM (Tennant Industrial) $59.68 1 (after SN 010060) usually ships 10-13 days
37 575-2638 CAM (Tennant Industrial) $44.84 1 (after SN 010060) usually ships 10-13 days
38 575-5553 BRACKET WLDT, MTG, CAM SWITCH (Tennant Industrial) $71.68 1 (after SN 010060) usually ships 10-13 days
39 175-2099 Flanged bushing $10.01 2 (after SN 010060) usually ships 10-13 days
40 999-0502 Bolt M6-1 x 20mm hex head full thread zinc $0.99 1 (after SN 010060) ships same day
41 999-0006 Washer 3/16 flat zinc plated $0.99 1 (after SN 010060) ships same day
42 999-0439 Nut M6-1 hex coarse thread $0.99 1 (after SN 010060) ships same day
43 575-2435 SPACER, SWITCH, CAM, PROPEL [8200/8210] (Tennant Industrial) $28.51 1 (after SN 010060) usually ships 10-13 days
44 475-8712 SCREW, HEX, .25-20 X 1.50, G5 (Tennant Industrial) $5.33 1 (after SN 010060) usually ships 10-13 days
45 175-0777 P/M sleeve $5.50 1 (after SN 010060) usually ships 10-13 days
46 175-5327 Spacer $20.46 1 (after SN 010060) usually ships 10-13 days
47 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 1 (after SN 010060) ships same day
48 175-7212 ROD-END, 0.25-28RH FEM 0.25B [TEFLON] (Tennant Industrial) $73.51 1 (after SN 010060) usually ships 1-5 days
49 575-2166 COVER, LINKAGE, CAM [8210] (Tennant Industrial) $21.54 1 (after SN 010060) usually ships 10-13 days
