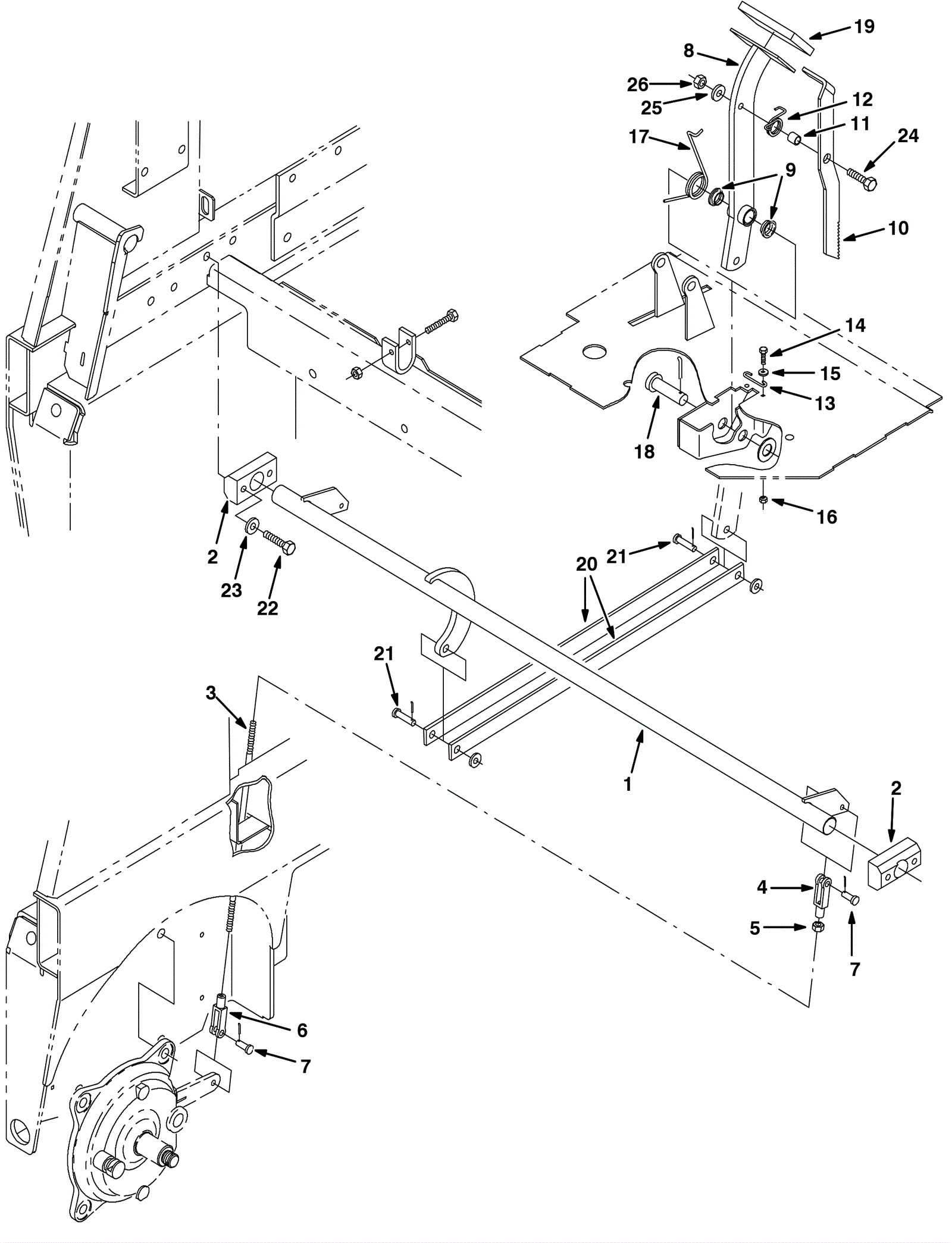

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
675-4337
|
SHAFT WLDT, BRUSH (Tennant Industrial) |
1 |
|
|
2 |
175-6804
|
BEARING, FLNG, 2HOLE, 1.02B [SOLID PYE] (Tennant Industrial |
2 |
|
|
3 |
375-4340
|
Rod (Tennant Industrial) |
2 |
|
|
4 |
275-8412
|
CLEVIS, ADJ, 0.25PIN, 0.25-28 RH, PL (Tennant Industrial) |
2 |
|
|
5 |
999-0718
|
Nut 1/4-28 hex jam zinc plated |
2 |
|
|
6 |
375-3644
|
Clevis (Tennant Industrial) |
2 |
|
|
7 |
175-9987
|
Clevis pin 1/4 x 3/4 |
4 |
|
|
9 |
175-2099
|
Flanged bushing |
2 |
|
|
10 |
575-2953
|
PEDAL, BRAKE, LOCK (Tennant Industrial) |
1 |
|
|
11 |
175-0632
|
Sleeve bushing |
1 |
|
|
12 |
175-0633
|
Spring |
1 |
|
|
13 |
175-3290
|
Parking brake spring |
1 |
|
|
14 |
175-6939
|
Screw M5 x 16mm stainless steel |
2 |
|
|
15 |
999-0998
|
Washer #10 flat stainless steel |
2 |
|
|
16 |
999-0740
|
Nut M5-.8 hex stainless steel |
2 |
|
|
17 |
175-9984
|
Torsion spring |
1 |
|
|
18 |
175-2105
|
Clevis pin |
1 |
|
|
19 |
175-3279
|
Pedal pad |
1 |
|
|
20 |
575-4112
|
LINK, 0.18, 1.0W 22.3L, 2/0.4H (Tennant Industrial) |
2 |
|
|
21 |
275-2753
|
PIN, CLEVIS, 0.38D X 1.13L (Tennant Industrial) |
2 |
|
|
22 |
175-3436
|
Bolt 8mm-1.25 x 40mm hex head |
4 |
|
|
23 |
475-3199
|
WASHER, FLAT, 1.00, STD |
4 |
|
|
24 |
175-0634
|
Bolt M8-1 1/4 x 35mm hex head |
1 |
|
|
25 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
1 |
|
|
26 |
999-0471
|
Nut M8-1.25 nylon insert lock zinc plated |
1 |
|
|
