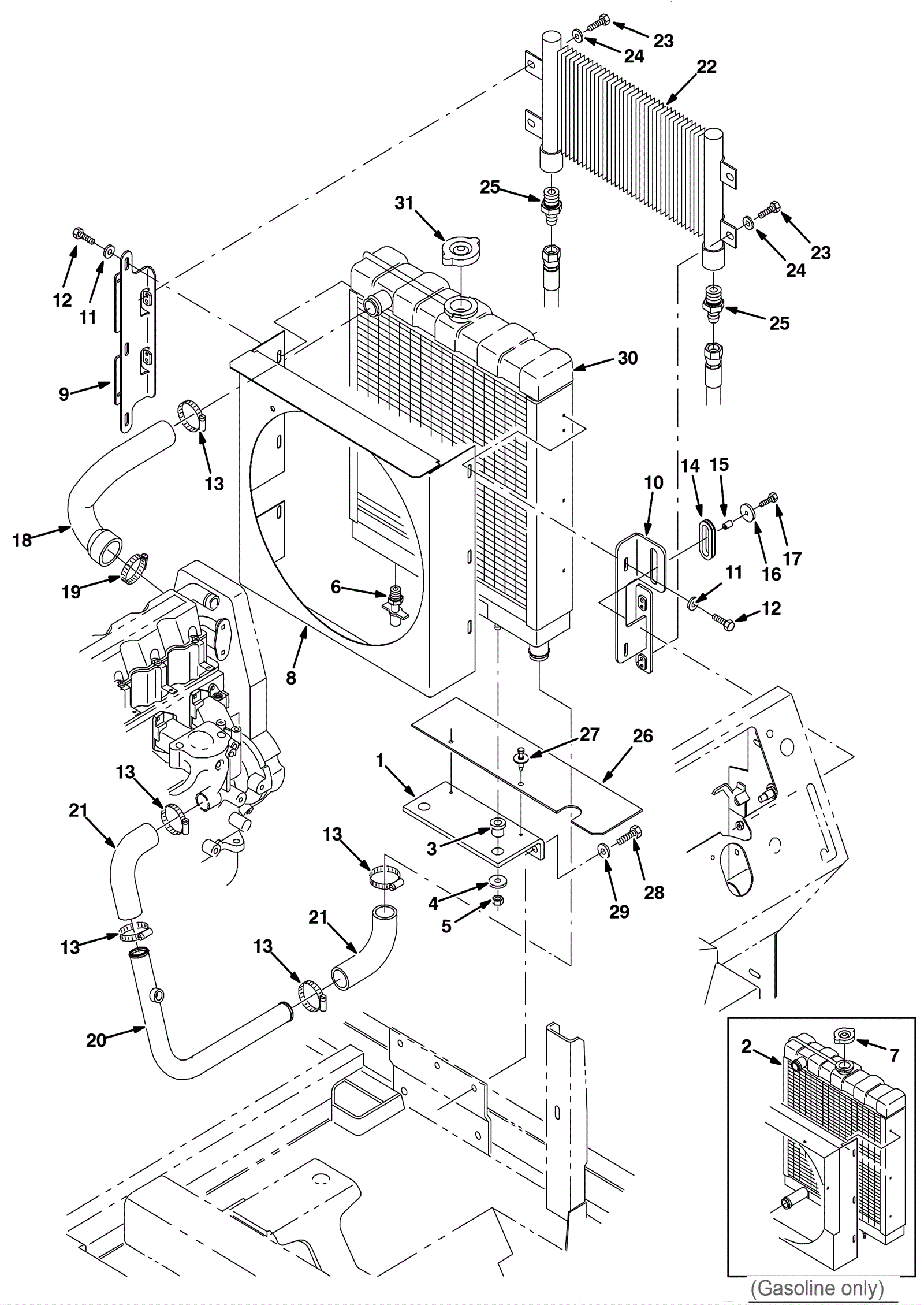

8210 Engine Radiator Assmebly - After SN 009999

#PartDescriptionPriceReqNotesAvailability
3 175-2429 Vibration isolator $14.30 1 usually ships 5-16 days
4 175-2367 Steel plated washer $3.70 1 usually ships 1-5 days
5 999-1120 Nut M10-1.5 nylon insert lock stainless steel $3.92 1 ships same day
6 575-0722 FITTING, DRAINCOCK, .25NPT (Tennant Industrial) $14.50 2 usually ships 5-16 days
10 575-7011 BRACKET, RADIATOR (Tennant Industrial) $60.62 1 usually ships 5-16 days
11 999-0123 Washer 1/4 SAE flat zinc plated $0.99 1 ships same day
12 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 1 ships same day
13 997-2000 Hose clamp $2.37 5 ships same day
14 175-2366 Rubber grommet $6.05 1 ships same day
15 575-1979 TUBE, 0.38D 0.28B 0.6L STL Z (Tennant Industrial) $29.06 1 usually ships 5-16 days
16 999-0123 Washer 1/4 SAE flat zinc plated $0.99 1 ships same day
17 999-0518 Bolt M6-1 x 25mm hex head full thread zinc $0.99 2 ships same day
18 375-3622 Upper radiator hose (Tennant Industrial) $88.52 1 usually ships 5-16 days
19 997-2003 Hose clamp $2.66 1 ships same day
20 575-9396 TUBE, RADIATOR, LOWER (Tennant Industrial) $102.04 1 usually ships 5-16 days
21 275-7308 Hose (Tennant Industrial) $31.34 2 usually ships 1-5 days
22 675-6231 COOLER, HYD, GPM BTU REP.BYNONE (Tennant Industrial) $814.96 1 usually ships 5-16 days
23 999-0783 Screw M8-1.25 x 16mm hex head $0.99 4 ships same day
24 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
25 175-6967 Strainer fitting $15.18 2 usually ships 1-5 days
26 575-2150 SEAL, DOOR, SIDE, LOWER (Tennant Industrial) $31.34 1 usually ships 5-16 days
27 175-3378 Rivet 1/4 x 57/64 plastic $3.83 2 usually ships 5-16 days
28 175-3258 Bolt M10-1.5 x 35mm hex head $4.88 2 usually ships 1-5 days
29 999-0032 Washer 3/8 USS flat plain finish $2.42 2 ships same day
30b 375-3585 Radiator kit (Tennant Industrial) $1,649.83 1 usually ships 5-16 days
31 275-6393 Radiator cap (Tennant Industrial) $18.17 1 (after SN 010040) usually ships 5-16 days
