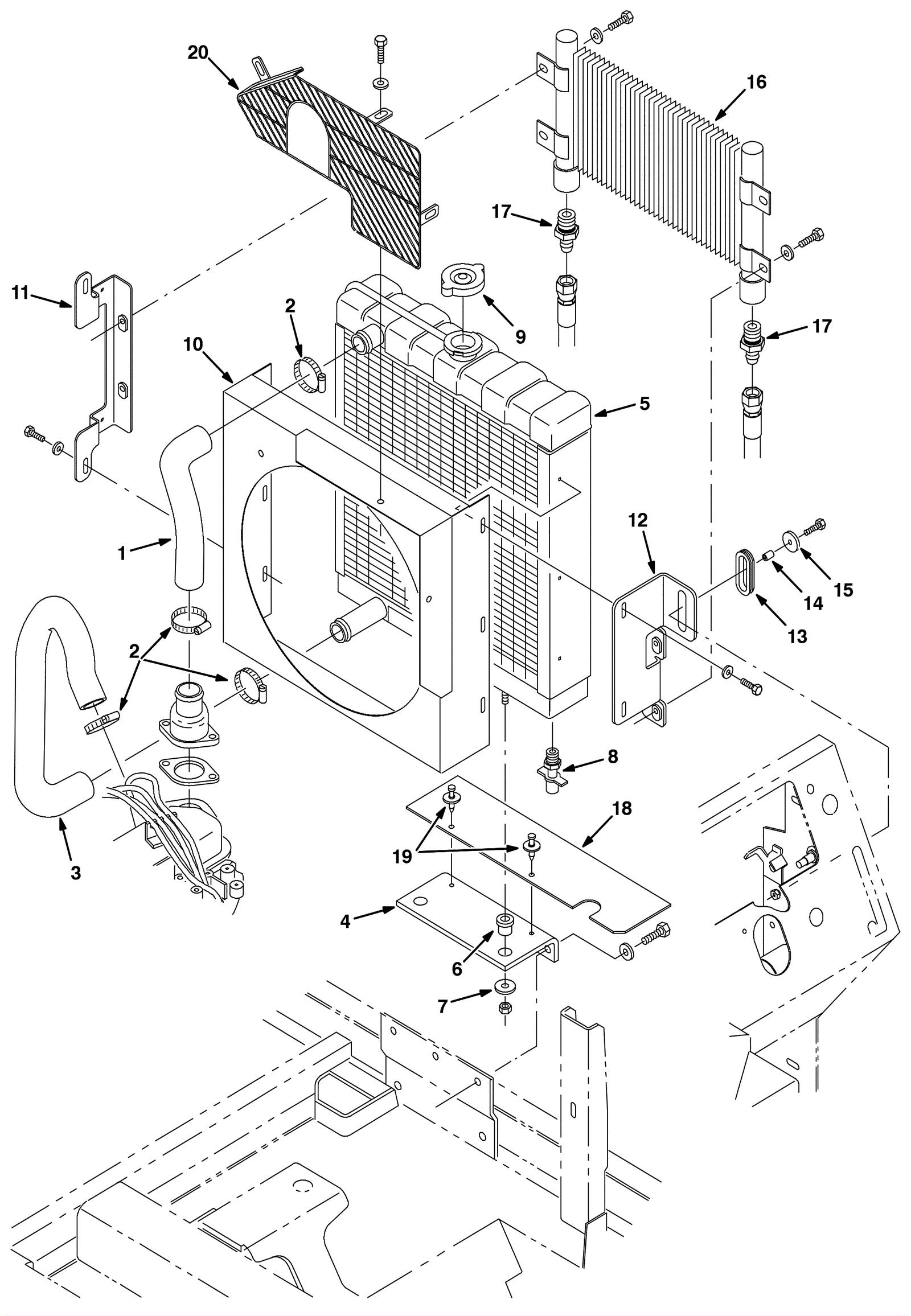

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
575-4777
|
HOSE, COOLANT, MOLD, 1.25ID TO 1.25ID (Tennant Industrial) |
1 |
|
|
2 |
997-2000
|
Hose clamp |
4 |
|
|
3 |
575-6882
|
HOSE, COOLANT, MOLD, 1.25ID TO 1.25ID (Tennant Industrial) |
1 |
|
|
4 |
675-3118
|
BRACKET, ANGLE, RADIATOR (Tennant Industrial) |
1 |
|
|
6 |
175-2429
|
Vibration isolator |
2 |
|
|
7 |
175-2367
|
Steel plated washer |
2 |
|
|
8 |
575-0722
|
FITTING, DRAINCOCK, .25NPT (Tennant Industrial) |
1 |
|
|
11 |
675-0280
|
BRACKET, MTG, COOLER, HYD (Tennant Industrial) |
1 |
|
|
12 |
575-9231
|
BRACKET, MTG, RADIATOR (Tennant Industrial) |
1 |
|
|
13 |
175-2366
|
Rubber grommet |
1 |
|
|
14 |
575-1979
|
TUBE, 0.38D 0.28B 0.6L STL Z (Tennant Industrial) |
1 |
|
|
15 |
999-1288
|
Washer 1/4 x 1 OD fender stainless steel |
1 |
|
|
16 |
675-6231
|
COOLER, HYD, GPM BTu(Tennant Industrial) (OBSOLETE) |
1 |
|
|
17 |
175-6967
|
Strainer fitting |
2 |
|
|
18 |
575-2150
|
SEAL, DOOR, SIDE, LOWER (Tennant Industrial) |
1 |
|
|
19 |
175-3378
|
Rivet 1/4 x 57/64 plastic |
2 |
|
|
