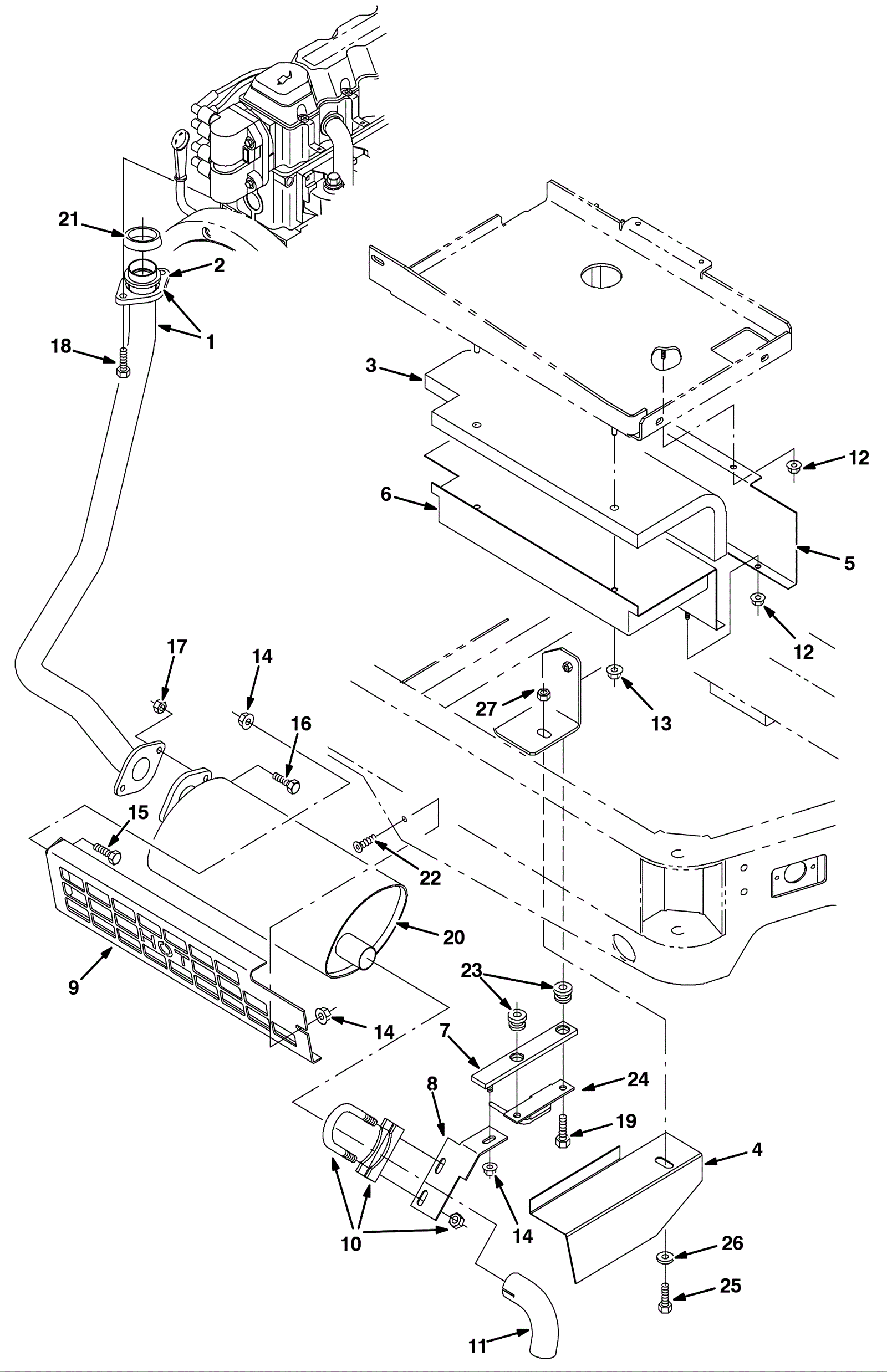

Engine Muffler Assembly - After SN 009999

#PartDescription ReqNotesAvailability
1 675-3412 TUBE, EXHAUST, 2 FLNG (Tennant Industrial) 1 (includes item 2)
2 575-8669 FLANGE, MTG, TAILPIPE [GAS/LPG] (Tennant Industrial) 1
3 675-1287 INSULATION, 1.0, NTCH [DURABLANKET] (Tennant Industrial) 1
4 575-3715 PANEL, SHIELD, HEAT (Tennant Industrial) 1
5 575-4903 PANEL, SHIELD, HEAT (Tennant Industrial) 1
6 575-9777 PANEL WLDT, SHIELD, HEAT (Tennant Industrial) 1
7 575-4846 STRIP (Tennant Industrial) 1
8 575-2069 ANGLE, MTG, MUFFLER (Tennant Industrial) 1
9 575-6810 GUARD, MUFFLER (Tennant Industrial) 1
10 275-4692 CLAMP, MUFFLER, 1.62D (Tennant Industrial) 1
11 275-4693 TUBE WLDT, EXHAUST, 1.5D (Tennant Industrial) 1
12 999-6694 Nut M6-1 hex serrated flange stainless steel 4
13 275-4518 NUT, HEX, STOVER, M8 X 1.25 (Tennant Industrial) 2
14 999-0665 Nut M8-1.25 flange lock 3
15 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel 1
16 275-0033 Screw M10-1.5 x 30mm hex head 8.8 2
17 275-7137 Nut M10 x 1.5mm hex stover (TENNANT INDUSTRIAL) 2
18 175-3258 Bolt M10-1.5 x 35mm hex head 2
19 275-8450 Screw M10-1.5 x 50mm stainless steel 2
20 375-3617 Catalytic muffler (Tennant Industrial) 1
21 275-7358 VR, GASKET, FLNG, PIPE, EXHAUST (Tennant Industrial) 1
22 999-0770 Screw M8-1.25 x 30mm flat head socket stainless steel 1
23 575-5184 ISOLATOR, VIB, BSHG, 1.1D 0.6L .4B 0.78H (Tennant Industrial 2
24 575-5571 RETAINER WLDT, HOSE, SQGE (Tennant Industrial) 2
25 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel 1
26 175-2367 Steel plated washer 1
27 999-0496 Nut M8-1.25 nylon insert lock stainless steel 1
