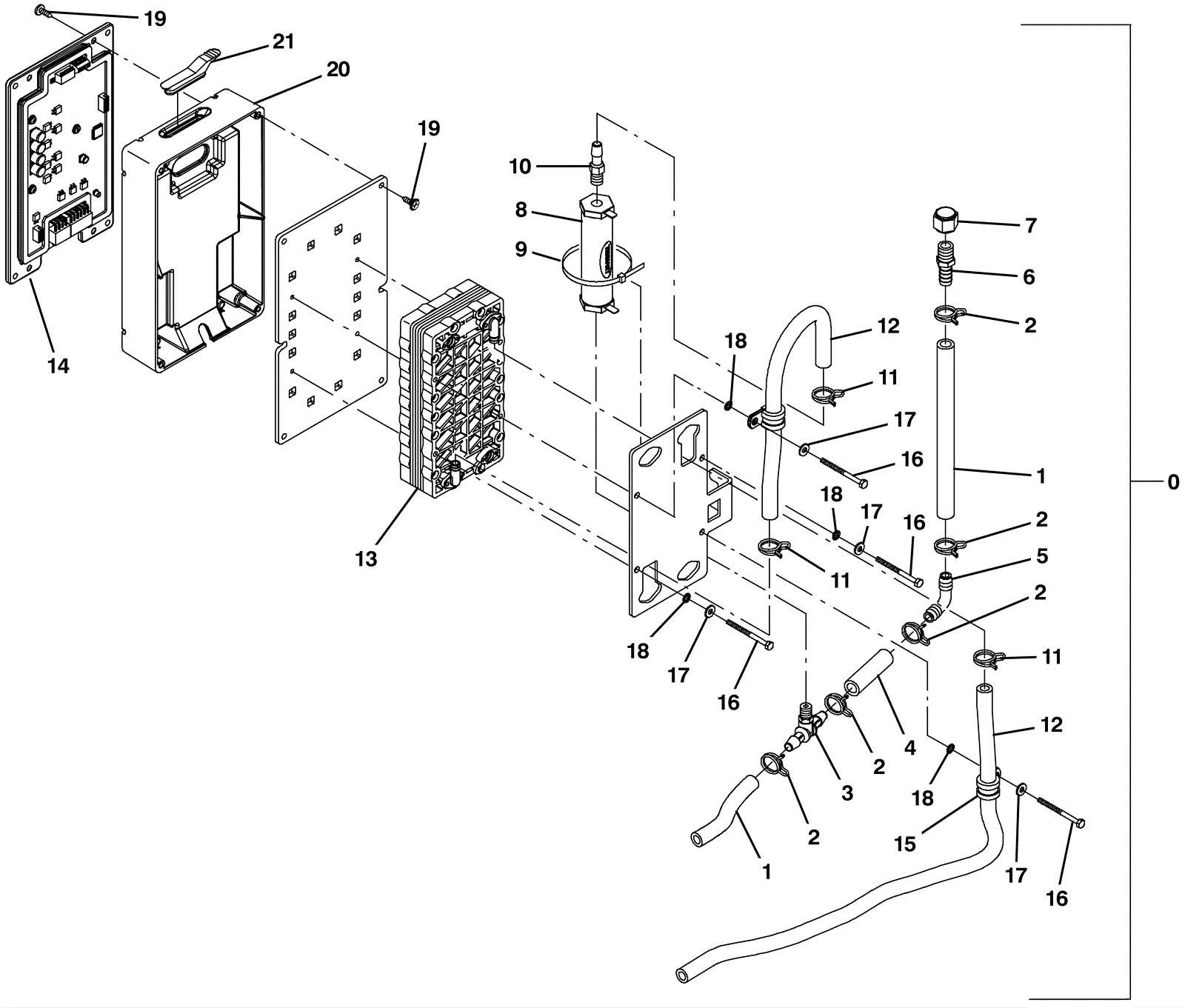

| # | Part | Description |
Req | Notes | Availability |
|---|
0 |
375-1004
|
Module kit (Tennant Industrial) |
1 |
(includes 1-21) |
|
1 |
275-8237
|
HOSE, AFMKT, PVC, BRD, 0.38ID, 02FT, CLR (Tennant Industria |
2 |
|
|
2 |
175-3671
|
Hose clamp |
5 |
|
|
3 |
375-1116
|
Plastic tee fitting (Tennant Industrial) |
1 |
|
|
4 |
275-4939
|
1 foot PVC hose clear |
1 |
|
|
5 |
175-8716
|
FITTING, PLSTC, E90, BM06/BM06 (Tennant Industrial) |
1 |
|
|
6 |
175-7218
|
Plastic straight fitting |
1 |
|
|
7 |
175-5313
|
Plastic cap fitting |
1 |
|
|
8 |
275-9936
|
Cylindrical electrode |
1 |
|
|
9 |
175-2226
|
Nylon wire tie |
1 |
|
|
10 |
375-1117
|
Plastic fitting (Tennant Industrial) |
1 |
|
|
11 |
275-2632
|
Hose clamp (yellow) (Tennant Industrial) |
3 |
|
|
12 |
275-2601
|
3 foot braided PVC hose (clear) |
1 |
|
|
13 |
275-4956
|
5 plate electrode |
1 |
|
|
14 |
375-1118
|
Controller kit (Tennant Industrial) |
1 |
|
|
15 |
175-7808
|
1/2 inch insulated P clamp |
2 |
|
|
16 |
999-1947
|
Screw M4-.7 x 50 hex stainless steel |
4 |
|
|
17 |
999-0266
|
Washer #8 SAE flat stainless steel |
4 |
|
|
18 |
999-1083
|
Washer #8 internal star lock stainless steel |
4 |
|
|
19 |
999-0531
|
Screw M5-.8 x 16mm pan head slotted zinc |
8 |
|
|
20 |
275-4761
|
Rear module housing |
1 |
|
|
21 |
275-5946
|
Grommet |
1 |
|
|
