| # | Part | Description |
Req | Notes | Availability |
|---|
0 |

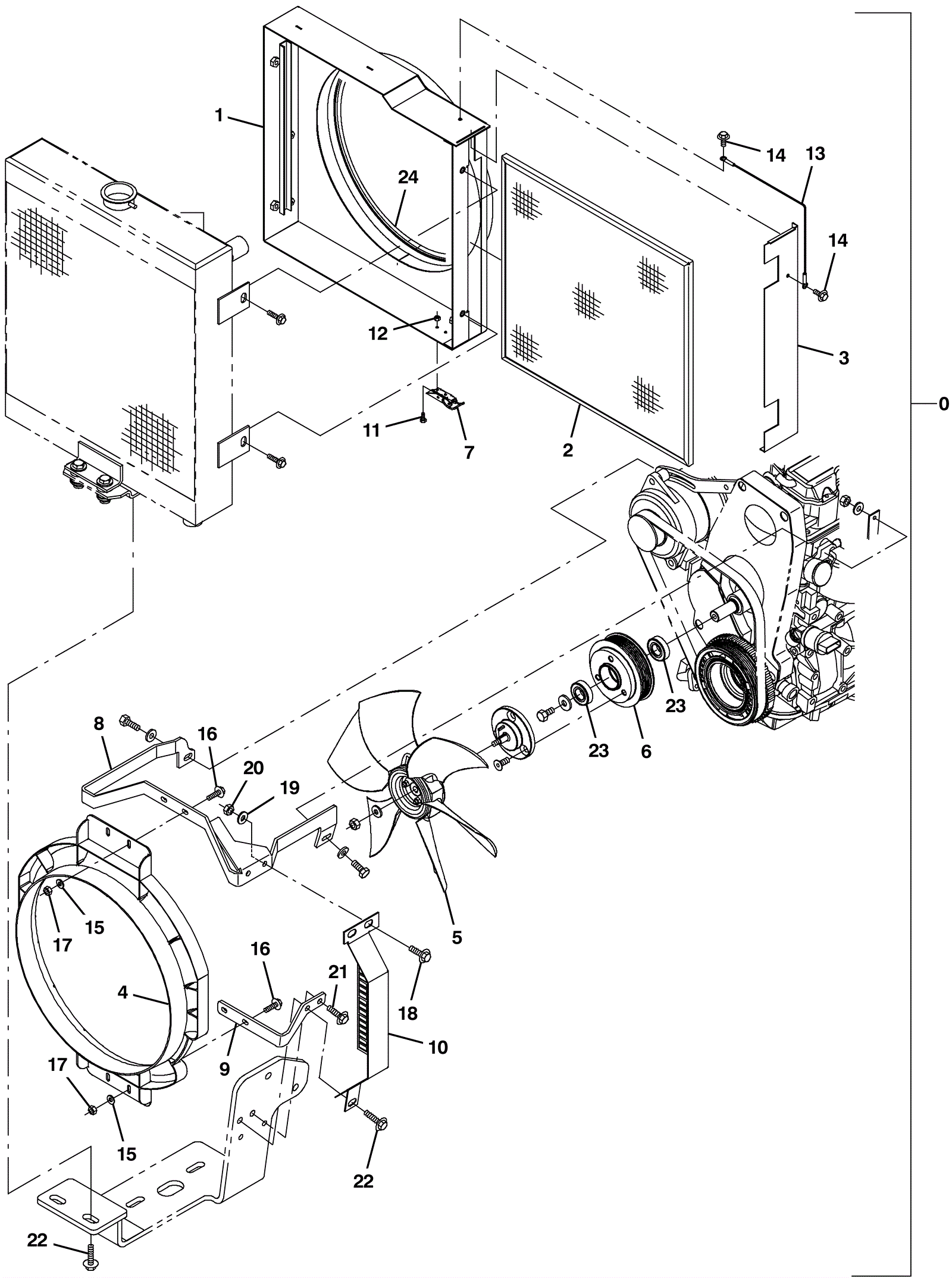

375-1106
|
Radiator screen kit (Tennant Industrial) |
1 |
(includes 1-24) |
|
1 |
375-1107
|
Radiator fan bracket weldment (Tennant Industrial) (OBS) |
1 |
|
|
2 |
375-1108
|
Radiator screen frame weldment (Tennant Industrial) (OBS) |
1 |
|
|
3 |
375-1109
|
Screen cover plate (Tennant Industrial) (OBSOLETE) |
1 |
|
|
4 |
375-0618
|
Fan shroud (Tennant Industrial) |
1 |
|
|
5 |
375-0606
|
Cooling fan (Tennant Industrial) |
1 |
|
|
6 |
375-1110
|
Sheave (Tennant Industrial) |
1 |
|
|
7 |
375-1111
|
Latch concept (Tennant Industrial) |
1 |
|
|
8 |
375-1112
|
Upper fan support bracket (Tennant Industrial) |
1 |
|
|
9 |
375-1113
|
Lower fan support bracket (Tennant Industrial) |
1 |
|
|
10 |
375-1114
|
Gas/LPG radiator bracket (Tennant Industrial) |
1 |
|
|
11 |
999-0777
|
Screw M4-.7 x 10mm hex head plain finish |
2 |
|
|
12 |
999-0954
|
Nut M4-.7 nylon insert lock stainless steel |
2 |
|
|
13 |
275-5539
|
12 inch cable (Tennant Industrial) |
1 |
|
|
14 |
175-3166
|
Bolt M6-1 x 16mm hex head |
2 |
|
|
15 |
999-0016
|
Washer 1/4 flat plain finish |
6 |
|
|
16 |
999-0779
|
Screw M6-1 x 25mm hex head plain finish |
4 |
|
|
17 |
999-0469
|
Nut M6-1 nylon insert lock zinc plated |
4 |
|
|
18 |
275-9575
|
SCREW, HEX, M8 X 1.25 X 25, 9.8, SEMS (Tennant Industrial) |
2 |
|
|
19 |
999-0024
|
Washer 5/16 flat stainless steel |
2 |
|
|
20 |
999-0471
|
Nut M8-1.25 nylon insert lock zinc plated |
2 |
|
|
21 |
999-0785
|
Screw M8-1.25 x 30mm hex head stainless steel |
3 |
|
|
22 |
999-0786
|
Screw M8-1.25 x 35mm hex head stainless steel |
1 |
|
|
23 |
375-0533
|
Ball bearing (Tennant Industrial) |
2 |
|
|
24 |
275-0294
|
SEAL, BULB, STR, 0.58D .06-.09GRIP 41.1L (Tennant Industria |
1 |
|
|
