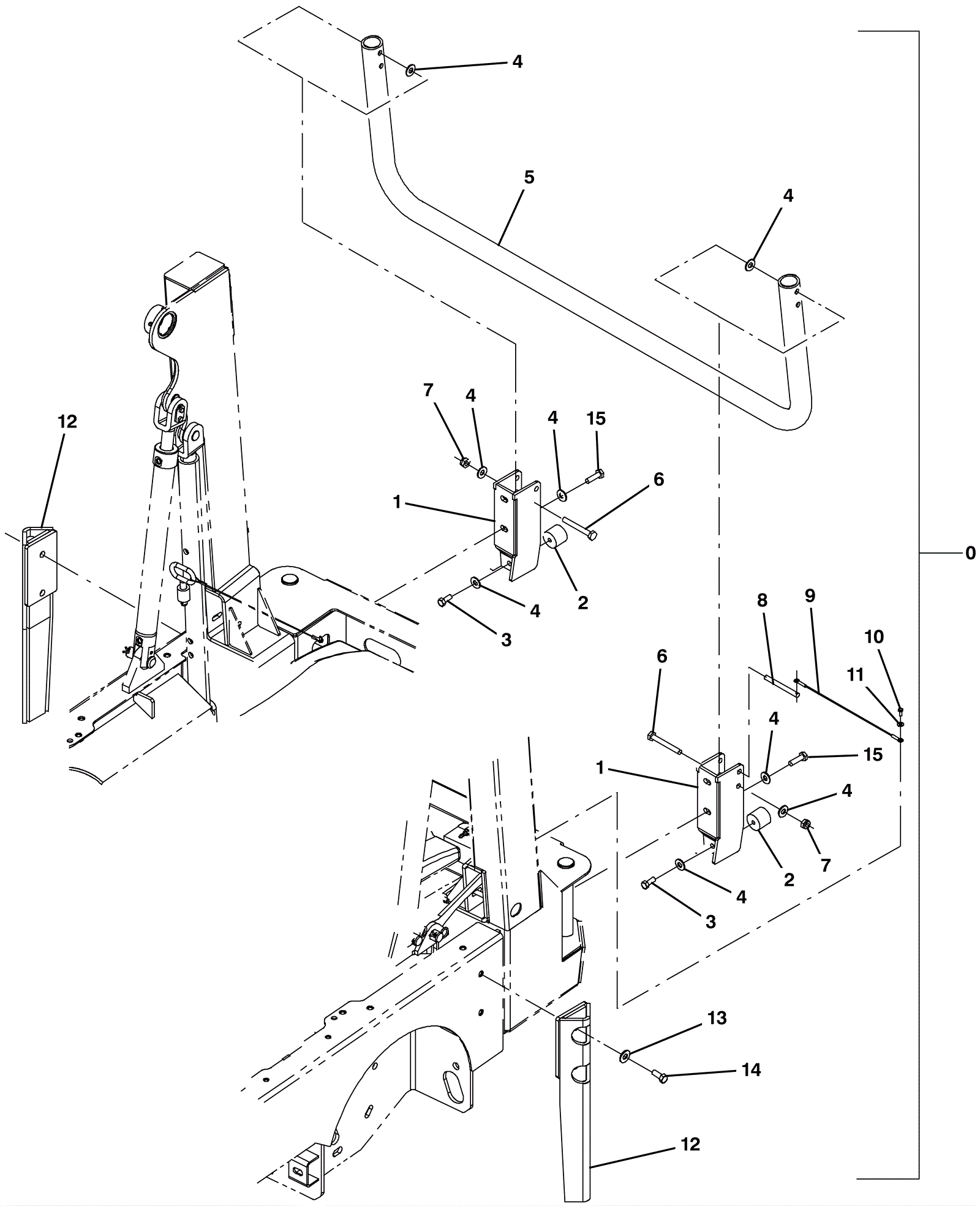

Squeegee Guard Kit Assembly

#PartDescription ReqNotesAvailability
0 375-1102 Squeegee guard kit (Tennant Industrial) 1 (includes 1-15)
1 375-1103 Squeegee guard bracket weldment (Tennant Industrial) 2
2 275-7776 Bumper (Tennant Industrial) 2
3 275-2205 SCREW, HEX, .38-16 X 0.88, G5 (Tennant Industrial) 2
4 999-0032 Washer 3/8 USS flat plain finish 10
5 375-1104 Squeegee guard weldment (Tennant Industrial) 1
6 275-8451 SCREW, HEX, M10 X 1.50 X 80, 8.8 (Tennant Industrial) 2
7 999-9133 Nut M10-1.5 nut hex head stainless steel 2
8 175-9789 PIN, HITCH, .375D X 3.12L, PL (Tennant Industrial) 1
9 275-5539 12 inch cable (Tennant Industrial) 1
10 999-1228 Screw M5-.8 x 10mm hex head stainless steel 1
11 999-0998 Washer #10 flat stainless steel 1
12 375-1105 Squeegee guard weldment (Tennant Industrial) 2
13 999-0114 Washer 1/2 SAE flat 2
14 275-2982 SCREW, HEX, M10 X 1.50 X 35, 10.9 (Tennant Industrial) 4
15 175-3258 Bolt M10-1.5 x 35mm hex head 4
