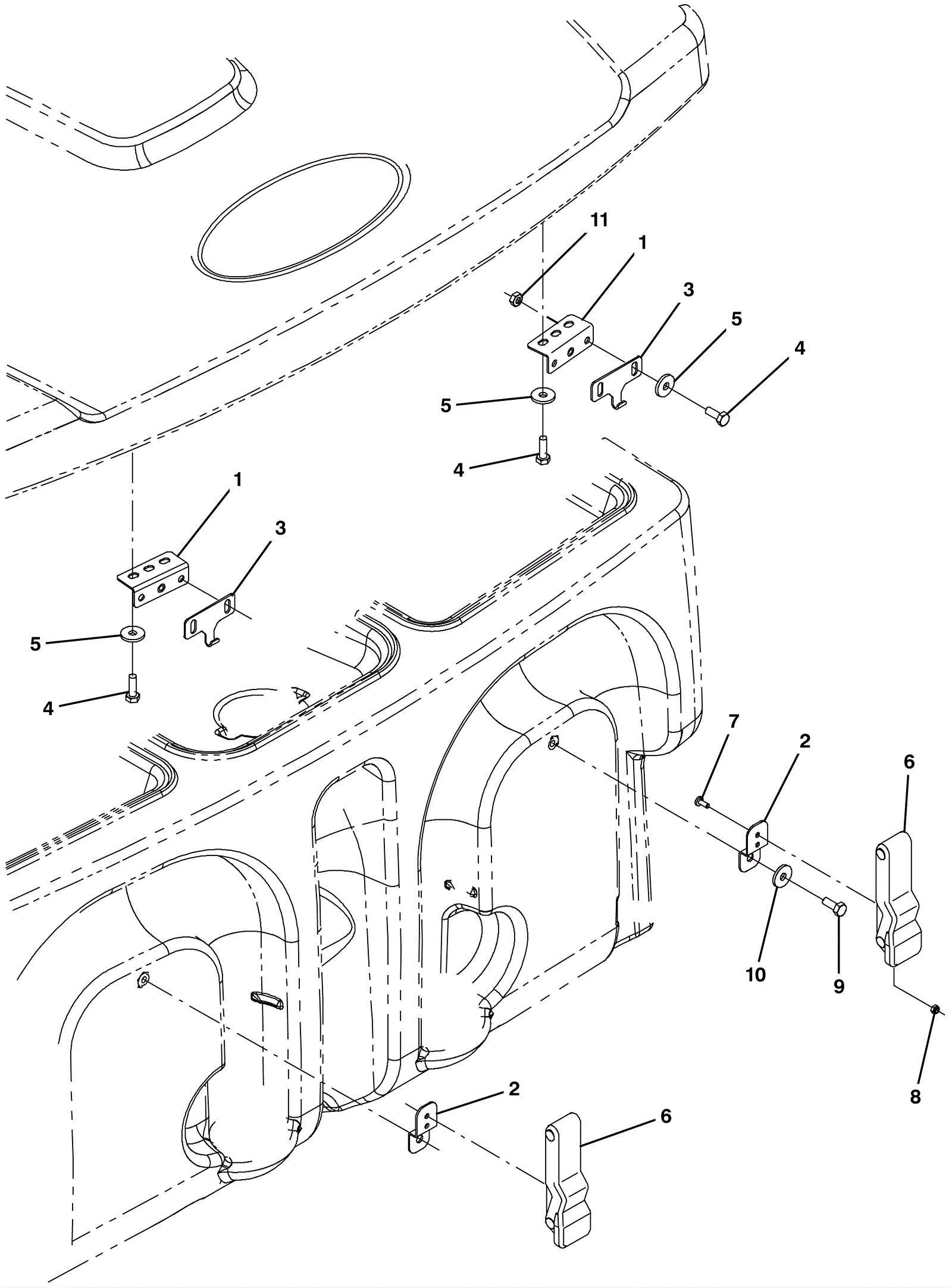

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
375-1099
|
Latch cover bracket (Tennant Industrial) |
2 |
|
|
2 |
375-1100
|
Retaining hose bracket (Tennant Industrial) |
2 |
|
|
3 |
375-1101
|
Hook latch plate (Tennant Industrial) |
2 |
|
|
4 |
175-8867
|
SCREW, HEX, M6 X 1.00 X 12, SS (Tennant Industrial) |
8 |
|
|
5 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
8 |
|
|
6 |
275-8500
|
LATCH (Tennant Industrial) |
2 |
|
|
7 |
999-1225
|
Screw M5-.8 x 12mm pan head phillips zinc |
4 |
|
|
8 |
999-0740
|
Nut M5-.8 hex stainless steel |
4 |
|
|
9 |
175-4927
|
Screw M8-1.25 x 20mm button head |
2 |
|
|
10 |
999-0024
|
Washer 5/16 flat stainless steel |
2 |
|
|
11 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
4 |
|
|
