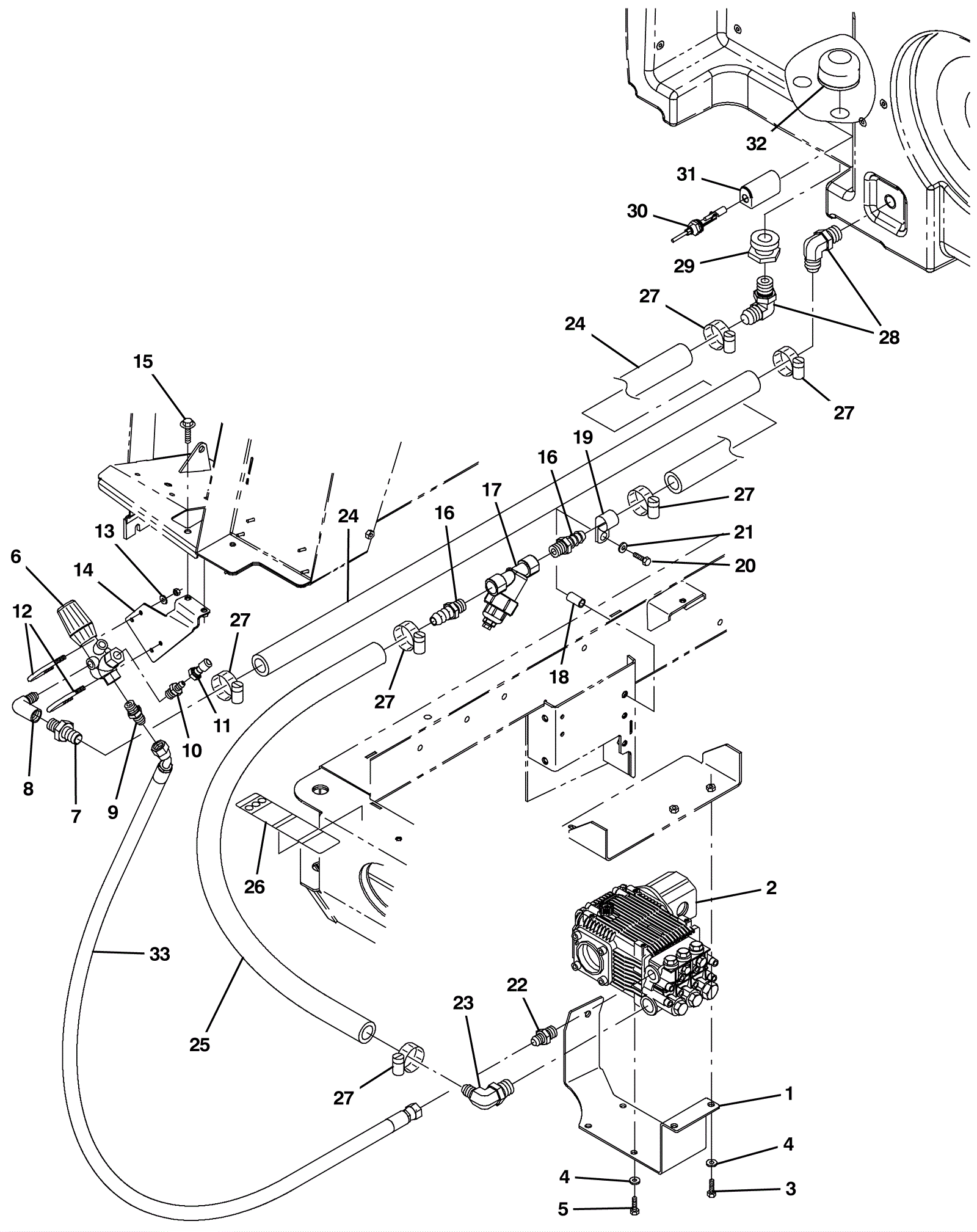

Pressure Washer Solution Assembly

#PartDescription ReqNotesAvailability
1 375-1075 Motor bracket (Tennant Industrial) 1
2 375-4449 Pressure washer pump (Tennant Industrial) 1
3 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel 3
4 999-9097 Washer M8 flat stainless steel 7
5 999-0784 Screw M8-1.25 x 16mm hex head stainless steel 4
6 375-1077 Needle valve (Tennant Industrial) 1
7 375-1078 Brass fitting (Tennant Industrial) 1
8 375-1079 Brass fitting (Tennant Industrial) 1
9 375-1080 Stainless steel fitting (Tennant Industrial) 1
10 375-1070 Brass fitting (Tennant Industrial) 1
11 375-1071 Stainless steel fitting (Tennant Industrial) 1
12 375-1081 U-bolt 1/4-20 x 2 (Tennant Industrial) 2
13 175-4544 Washer M6 locking 4
14 375-1082 Needle bracket (Tennant Industrial) 1
15 275-9575 SCREW, HEX, M8 X 1.25 X 25, 9.8, SEMS (Tennant Industrial) 2
16 375-1083 Brass fitting (Tennant Industrial) 2
17 375-1084 In-line Y filter (Tennant Industrial) 1
18 275-9521 SLEEVE, 0.48B 0.68D 1.2L, CHAM [304SS] (Tennant Industrial) 1
19 175-5314 P clamp (Tennant Industrial) 1
20 275-8450 Screw M10-1.5 x 50mm stainless steel 1
21 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 1
22 375-1080 Stainless steel fitting (Tennant Industrial) 1
23 275-4206 FITTING, BRS, E90, EM12/PM08 (Tennant Industrial) 1
24 375-1085 8 foot clear PVC hose (Tennant Industrial) 1
25 375-1086 2 foot clear PVC hose (Tennant Industrial) 1
26 375-1087 Hazard decal set (Tennant Industrial) 1
27 175-0199 Hose clamp 6
28 375-1088 Brass fitting (Tennant Industrial) 2
29 175-9552 Plastic fitting 1
30 175-9554 Float switch 1
31 275-4664 Float switch protector bracket 1
32 275-9543 FILTER, SOLTN, 20MESH, PM12 3.1D 02.6L 1
33 375-0865 Hydraulic hose (Tennant Industrial) 1
