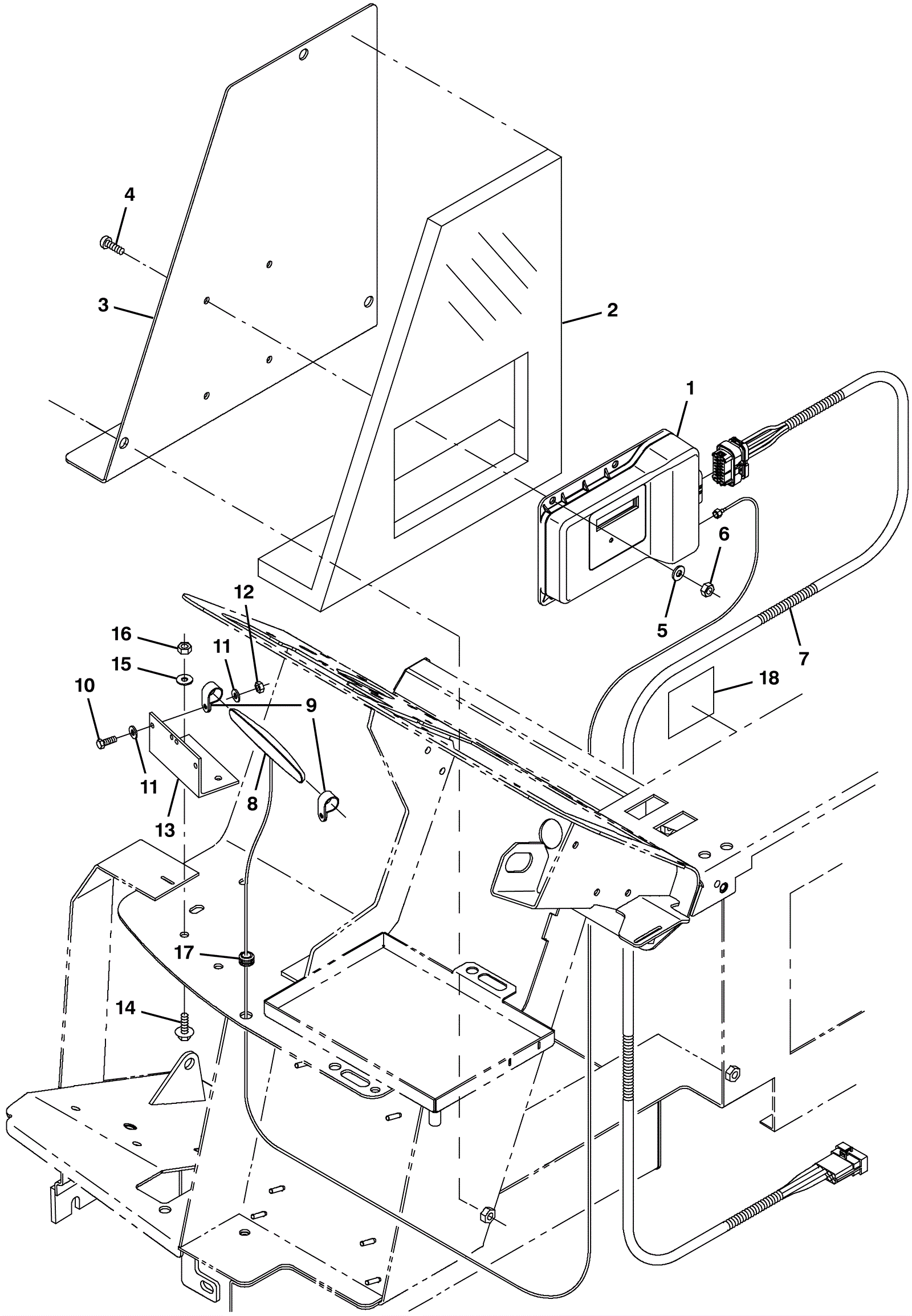

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
275-2615
|
Telemetry control box assembly kit |
1 |
|
|
2 |
375-1044
|
Flame-retardant insulation (Tennant Industrial) |
1 |
|
|
3 |
375-1045
|
Access door panel (Tennant Industrial) |
1 |
|
|
4 |
999-1591
|
Screw M6-1 x 20mm button head socket stainless steel |
4 |
|
|
5 |
999-0016
|
Washer 1/4 flat plain finish |
4 |
|
|
6 |
999-0469
|
Nut M6-1 nylon insert lock zinc plated |
4 |
|
|
7 |
375-1046
|
Extension harness (Tennant Industrial) |
1 |
|
|
8 |
375-1047
|
Antenna |
1 |
|
|
9 |
175-0988
|
P clamp |
2 |
|
|
10 |
175-6939
|
Screw M5 x 16mm stainless steel |
2 |
|
|
11 |
999-0998
|
Washer #10 flat stainless steel |
4 |
|
|
12 |
175-2894
|
Nut M5-.8 hex nylon locking |
2 |
|
|
13 |
275-7896
|
Antennna mounting angle (Tennant Industrial) |
1 |
|
|
14 |
999-1312
|
Screw M6-1 x 20mm hex head stainless steel |
2 |
|
|
15 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
2 |
|
|
16 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
2 |
|
|
17 |
175-4401
|
GROMMET, RBR, 0.38ID, F/0.5H, .12 MATL (Tennant Industrial) |
1 |
|
|
18 |
275-7899
|
Telemetry decal |
1 |
|
|
