| # | Part | Description |
Req | Notes | Availability |
|---|
0 |
375-1036
|

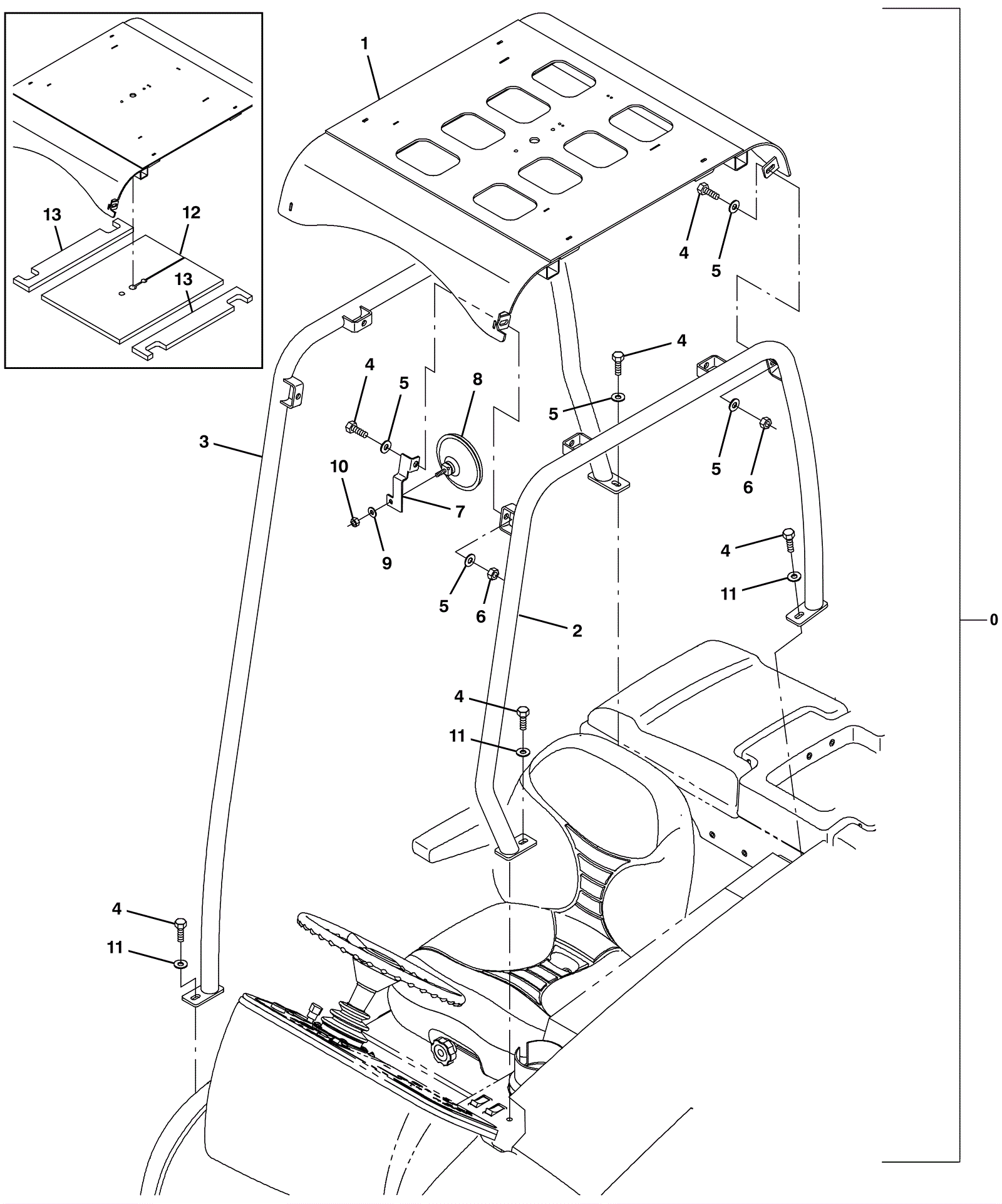

Overhead guard kit (Tennant Industrial) |
1 |
(includes 1-11) |
|
1 |
375-1037
|
Top overhead guard weldment (Tennant Industrial) |
1 |
|
|
2 |
375-1038
|
Left hand tube weldment (Tennant Industrial) |
1 |
|
|
3 |
375-1039
|
Right hand tube weldment (Tennant Industrial) |
1 |
|
|
4 |
275-0033
|
Screw M10-1.5 x 30mm hex head 8.8 |
12 |
|
|
5 |
999-0032
|
Washer 3/8 USS flat plain finish |
17 |
|
|
6 |
999-9133
|
Nut M10-1.5 nut hex head stainless steel |
8 |
|
|
7 |
375-1040
|
Rearview mirror bracket (Tennant Industrial) |
1 |
|
|
8 |
375-1041
|
Convex mirror (Tennant Industrial) |
1 |
|
|
9 |
999-0024
|
Washer 5/16 flat stainless steel |
1 |
|
|
10 |
275-2899
|
NUT, HEX, STD, .31-18 (Tennant Industrial) |
1 |
|
|
11 |
275-1169
|
Washer .40 x 12mm flat |
3 |
|
|
12 |
375-1042
|
Accoustic insulation (Tennant Industrial) |
1 |
|
|
13 |
375-1043
|
Accoustic insulation (Tennant Industrial) |
2 |
|
|
