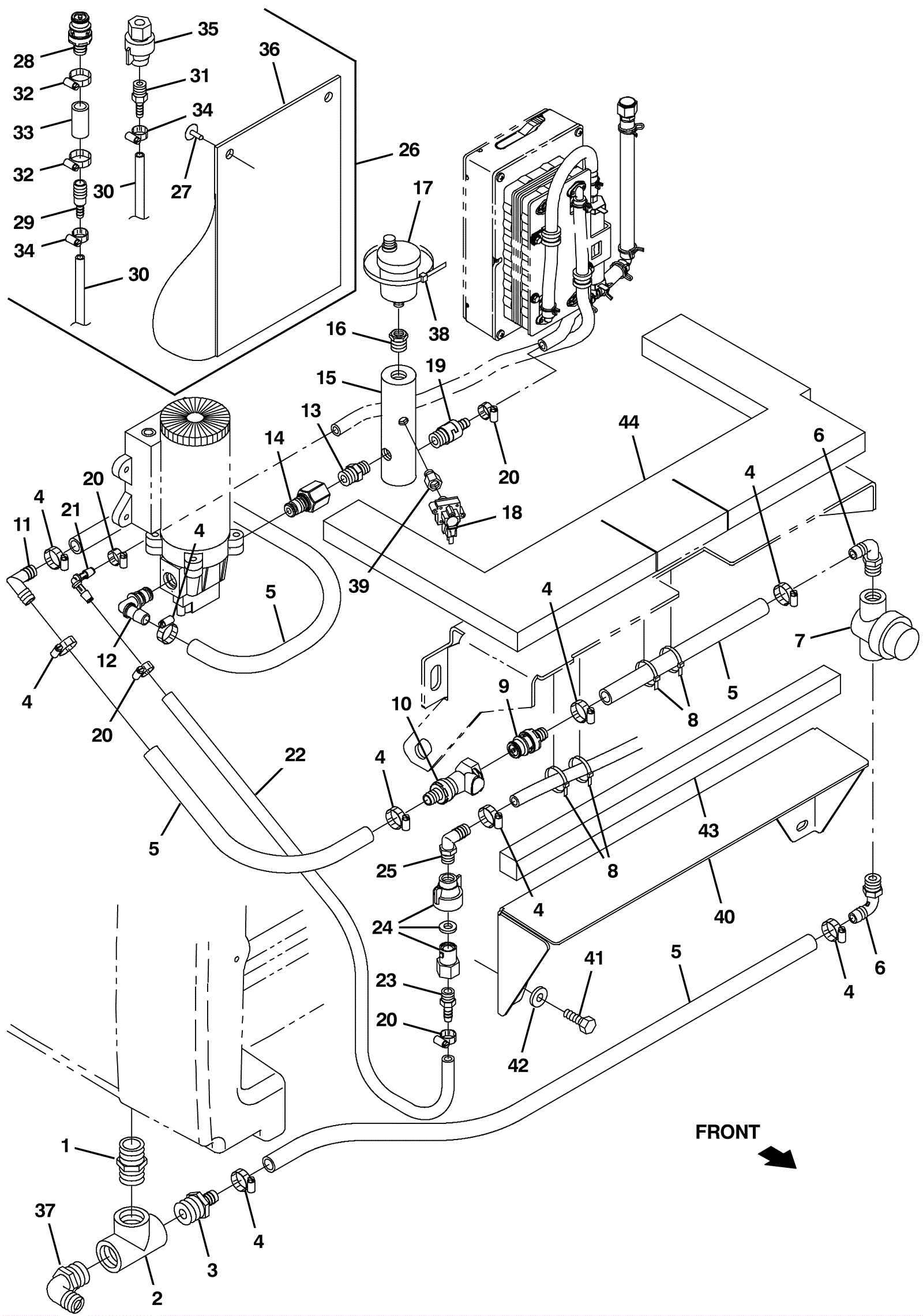

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
175-0663
|
FITTING, PLSTC, STR, PM12/PM12 1.60L (Tennant Industrial) |
1 |
|
|
2 |
175-0664
|
Plastic tee fitting |
1 |
|
|
3 |
175-2523
|
Plastic fitting |
1 |
|
|
4 |
175-6081
|
Hose clamp |
9 |
|
|
5 |
175-9703
|
HOSE, AFMKT, PVC, BRD, 0.50ID, 08FT, CLR (Tennant Industria |
1 |
|
|
6 |
175-5241
|
90 degree elbow |
2 |
|
|
7a |
175-9025
|
In-line screen filter assembly |
1 |
|
|
7b |
991-8582
|
Mesh inline filter |
1 |
|
|
8 |
275-0080
|
TIE, CABLE, NYL, 15.3L . W 4.5 MAX D (Tennant Industrial) |
4 |
|
|
9 |
275-9307
|
INSERT, CPLG, QM, BM08 (Tennant Industrial) |
1 |
|
|
10 |
275-9306
|
HOUSING, CPLG, QF / PM08 (Tennant Industrial) |
1 |
|
|
11 |
175-5233
|
Plastic fitting |
1 |
|
|
12 |
275-9303
|
FITTING, NYL, QDC, E90, BM08/ QM10 (Tennant Industrial) |
1 |
|
|
13 |
375-1012
|
Plastic PVC fitting (Tennant Industrial) |
1 |
|
|
14 |
175-8702
|
Plastic strainer fitting |
1 |
|
|
15 |
375-1013
|
Water manifold (Tennant Industrial) |
1 |
|
|
16 |
175-6863
|
Straight brass fitting |
1 |
|
|
17 |
175-7941
|
Air vent valve |
1 |
|
|
18 |
375-1014
|
Press switch (Tennant Industrial) |
1 |
|
|
19 |
375-1015
|
Check valve (Tennant Industrial) |
1 |
|
|
20 |
175-3594
|
Hose clamp |
4 |
|
|
21 |
375-1016
|
Plastic fitting (Tennant Industrial) |
1 |
|
|
22 |
275-2601
|
3 foot braided PVC hose (clear) |
2 |
|
|
23 |
275-7246
|
Straight plastic fitting (Tennant Industrial) |
1 |
|
|
24 |
275-4757
|
Fitting assembly |
1 |
|
|
25 |
275-4308
|
FITTING, PLSTC, E90, BM08/PM04 (Tennant Industrial) |
1 |
|
|
26 |
375-1017
|
Flush ec-H2O kit (Tennant Industrial) |
1 |
(includes 27-36) |
|
27 |
175-3378
|
Rivet 1/4 x 57/64 plastic |
2 |
|
|
28 |
275-9307
|
INSERT, CPLG, QM, BM08 (Tennant Industrial) |
1 |
|
|
29 |
175-4738
|
Fitting |
1 |
|
|
30 |
175-5305
|
Hose 1/4 x 3 foot |
2 |
|
|
31 |
275-1796
|
Straight plastic fitting (Tennant Industrial) |
1 |
|
|
32 |
175-6081
|
Hose clamp |
2 |
|
|
33 |
175-5249
|
Hose 1/2 x 1 foot (Tennant Industrial) |
1 |
|
|
34 |
175-3594
|
Hose clamp |
2 |
|
|
35 |
275-4757
|
Fitting assembly |
1 |
|
|
36 |
175-9796
|
Pouch |
1 |
|
|
37 |
175-9679
|
90 degree plastic elbow |
1 |
|
|
38 |
175-2162
|
Nylon wire tie |
1 |
|
|
39 |
375-1018
|
Brass snubber fitting (Tennant Industrial) |
1 |
|
|
40 |
375-1019
|
Support plate (Tennant Industrial) |
1 |
|
|
41 |
999-0499
|
Bolt M8-1.25 x 20mm hex head full thread stainless steel |
2 |
|
|
42 |
175-7920
|
Washer M8 flat stainless steel |
2 |
|
|
43 |
375-1020
|
Rear accoustic insulation (Tennant Industrial) |
1 |
|
|
44 |
375-1021
|
Accoustic insulation (Tennant Industrial) |
1 |
|
|
