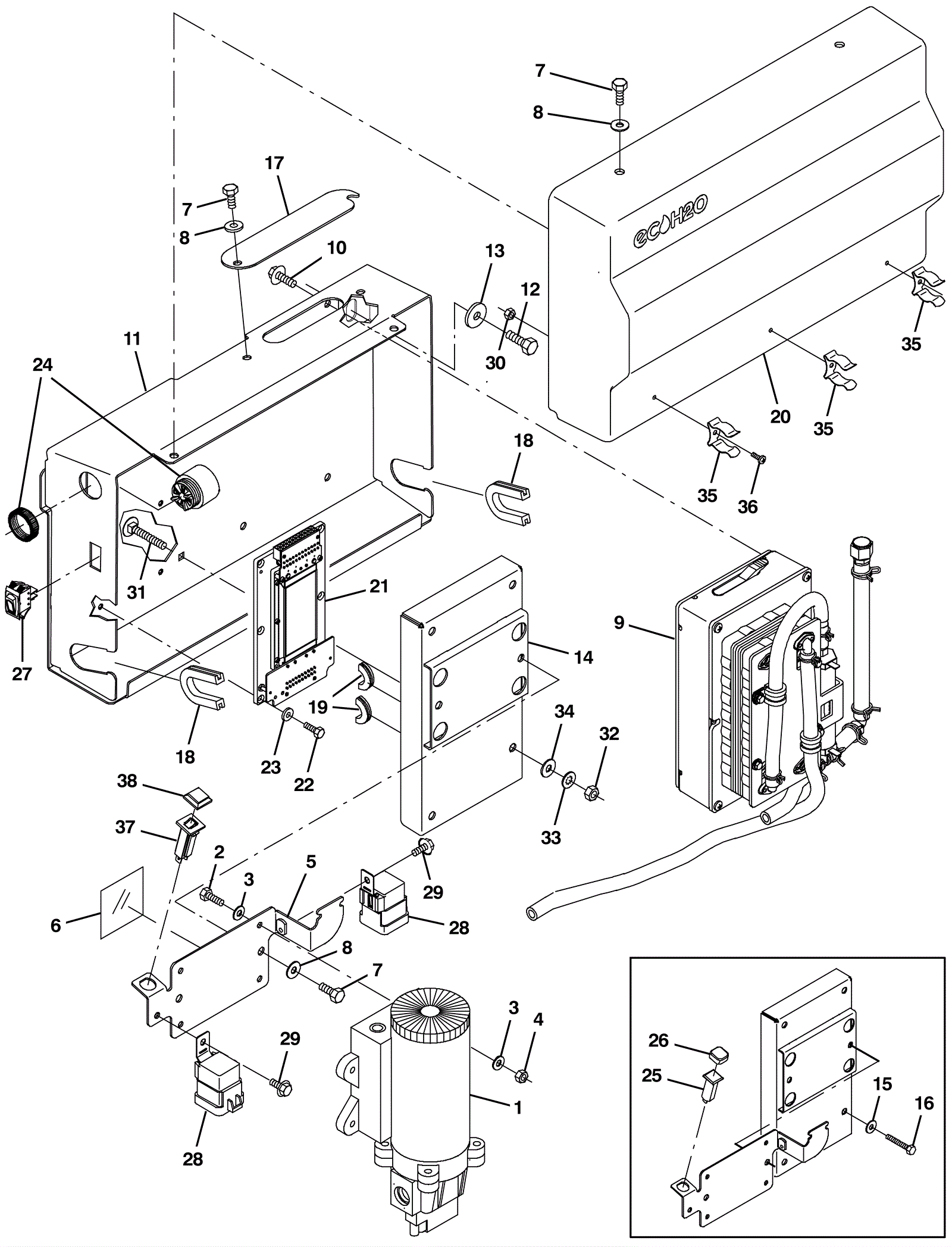

ec-H20 Solution Pump Assembly

#PartDescription ReqNotesAvailability
1 375-1001 Solution pump (Tennant Industrial) 1
2 275-0923 Screw M5 - 7/8 hex lock 4
3 999-0006 Washer 3/16 flat zinc plated 8
4 175-2894 Nut M5-.8 hex nylon locking 4
5 375-1002 Pump plate (Tennant Industrial) 1
6 375-1003 Rubber strip (Tennant Industrial) 1
7 175-8867 SCREW, HEX, M6 X 1.00 X 12, SS (Tennant Industrial) 6
8 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 6
9 375-1004 Module kit (Tennant Industrial) 1
10 999-1312 Screw M6-1 x 20mm hex head stainless steel 4
11 375-1005 Plate weldment (Tennant Industrial) 1
12 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel 2
13 175-7920 Washer M8 flat stainless steel 2
14 375-1006 Power supply cover weldment (Tennant Industrial) 1
15 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 4
16 175-9662 Screw M6-1 x 35mm hex head stainless steel 4
17 375-1007 Inspection plate (Tennant Industrial) 1
18 275-8203 Molding 1
19 275-0684 Rubber grommet 1
20 375-1008 Trimmed cover (Tennant Industrial) 1
21 375-1009 Converter (Tennant Industrial) 1
22 999-0521 Screw M4-.7 x 12mm pan head phillips zinc 4
23 999-0412 Washer #8 SAE flat 4
24 275-4942 Alarm 1
25 275-2595 2amp circuit breaker (Tennant Industrial) 1
26 275-2596 Circuit breaker boot (Tennant Industrial) 1
27 275-4773 Rocker switch 1
28 175-5970 RELAY, 12VDC, 040A, SPDT NO (Tennant Industrial) 2
29 999-1228 Screw M5-.8 x 10mm hex head stainless steel 2
30 999-0954 Nut M4-.7 nylon insert lock stainless steel 3
31 375-1010 Bolt M6-1 x 40 carriage (Tennant Industrial) 4
32 999-0439 Nut M6-1 hex coarse thread 4
33 999-0238 Washer 1/4 internal star lock zinc plated 4
34 999-0016 Washer 1/4 flat plain finish 4
35 375-1011 Finger grip clip (Tennant Industrial) 3
36 175-5326 Screw M4-.7 x 20mm pan head phillips stainless steel 3
37 275-2595 2amp circuit breaker (Tennant Industrial) 1
38 275-2596 Circuit breaker boot (Tennant Industrial) 1
