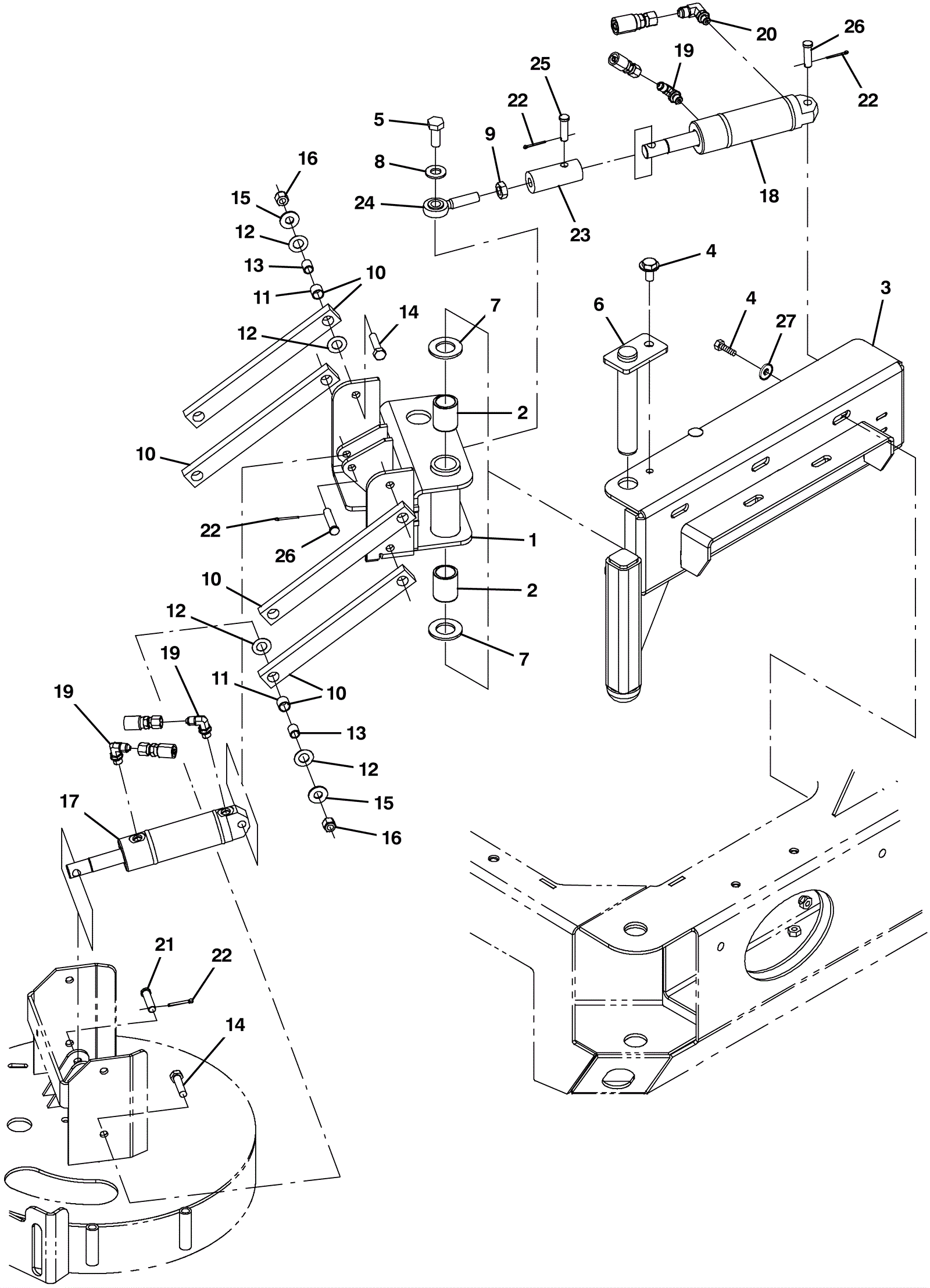

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
375-0962
|
Side brush pivot weldment (Tennant Industrial) |
1 |
|
|
2 |
375-0963
|
Sleeve bushing (Tennant Industrial) |
2 |
|
|
3 |
375-0964
|
Pivot channel weldment (Tennant Industrial) |
1 |
|
|
4 |
999-0501
|
Bolt M8-1.25 x 25mm hex head full thread stainless steel |
6 |
|
|
5 |
175-6784
|
Screw M12- 1.75 x 30mm hexhead |
1 |
|
|
6 |
375-0965
|
Pin weldment (Tennant Industrial) |
1 |
|
|
7 |
375-0966
|
Washer thrust (Tennant Industrial) |
2 |
|
|
8 |
999-0114
|
Washer 1/2 SAE flat |
1 |
|
|
9 |
275-9446
|
NUT, HEX, JAM, .50-20 (Tennant Industrial) |
1 |
|
|
10 |
375-0967
|
Link arm (Tennant Industrial) |
4 |
(includes 11) |
|
11 |
275-9799
|
Bushing |
2 |
|
|
12 |
275-0817
|
Thrust bearing |
16 |
|
|
13 |
275-7304
|
Sleeve (Tennant Industrial) |
8 |
|
|
14 |
999-1489
|
Screw 3/8-16 x 1 1/2 hex head stainless steel |
8 |
|
|
15 |
999-9097
|
Washer M8 flat stainless steel |
8 |
|
|
16 |
999-0513
|
Nut 3/8-16 nylon insert lock type NE stainless steel |
8 |
|
|
17 |
275-6034
|
Cylindrical head (Tennant Industrial) |
1 |
|
|
18 |
375-0759
|
Hydraulic cylinder (Tennant Industrial) |
1 |
|
|
19 |
175-6919
|
Elbow fitting |
3 |
|
|
20 |
275-9450
|
FITTING, HYD, E90, JM06/OM04 (Tennant Industrial) |
1 |
|
|
21 |
175-2111
|
Clevis pin |
1 |
|
|
22 |
175-2588
|
Cotter pin |
4 |
|
|
23 |
375-0968
|
Rod-end side brush adapter (Tennant Industrial) |
1 |
|
|
24 |
375-0969
|
Rod-end (Tennant Industrial) |
1 |
|
|
25 |
175-0744
|
Clevis pin .37D x 1 5/16 |
1 |
|
|
26 |
175-2592
|
Clevis Pin 0.37 D X 1.75 L |
2 |
|
|
27 |
999-0024
|
Washer 5/16 flat stainless steel |
2 |
|
|
