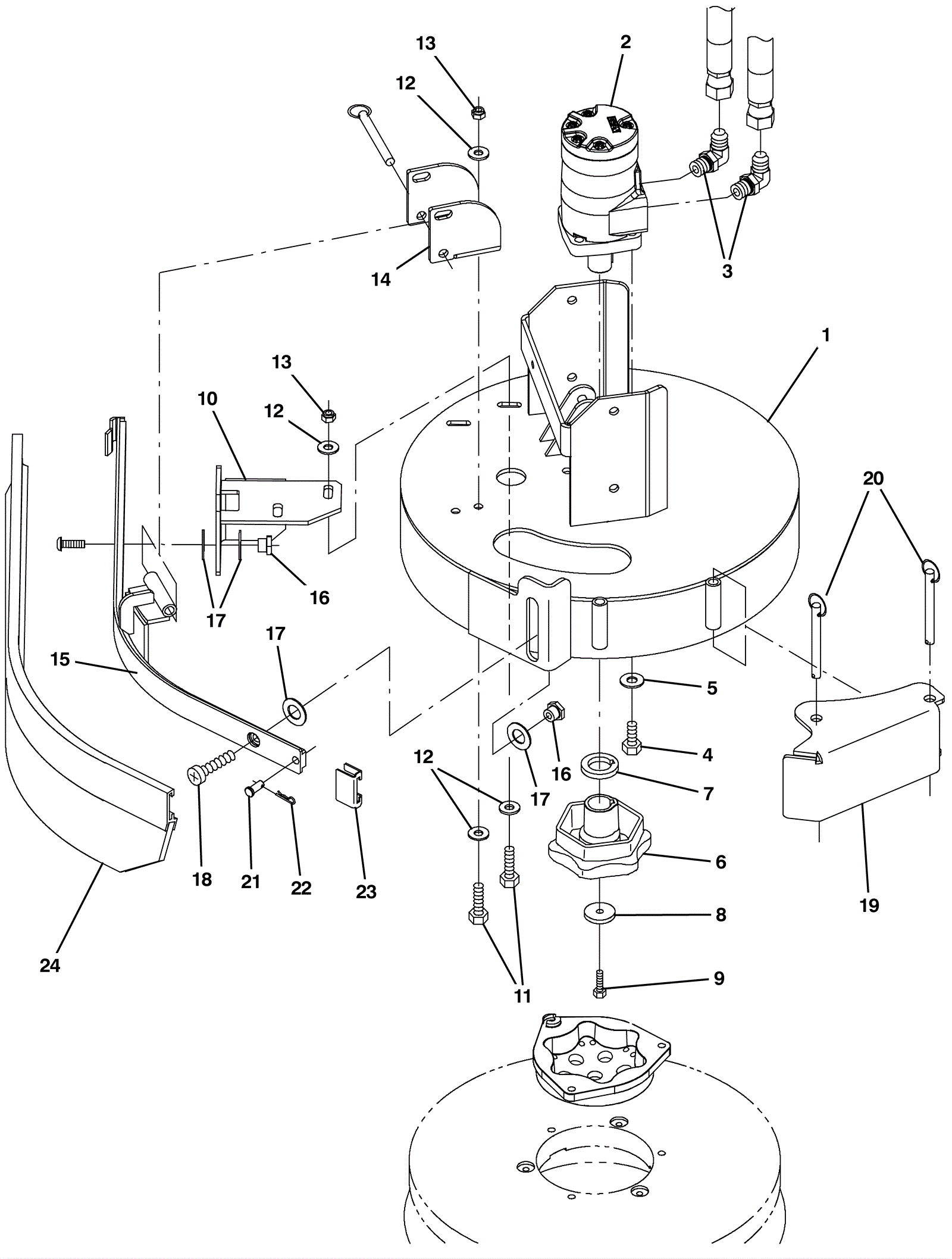

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
375-0937
|
Side brush bracket weldment (Tennant Industrial) |
1 |
|
|
2 |
375-0938
|
Side brush motor kit (Tennant Industrial) |
1 |
|
|
3 |
175-6893
|
Elbow fitting |
2 |
|
|
4 |
275-9428
|
SCREW, HEX, .38-16 X 0.75, NL (Tennant Industrial) |
4 |
|
|
5 |
999-0032
|
Washer 3/8 USS flat plain finish |
4 |
|
|
6 |
375-0939
|
Brush drive hub (Tennant Industrial) |
1 |
|
|
7 |
375-0940
|
Keyed hub spacer (Tennant Industrial) |
1 |
|
|
8 |
375-0941
|
Spacer (Tennant Industrial) |
1 |
|
|
9 |
999-0830
|
Screw 1/4-20 x 1 hex head plain finish |
1 |
|
|
10 |
375-0942
|
Squeegee bracket (Tennant Industrial) |
1 |
|
|
11 |
999-0501
|
Bolt M8-1.25 x 25mm hex head full thread stainless steel |
4 |
|
|
12 |
999-9097
|
Washer M8 flat stainless steel |
8 |
|
|
13 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
4 |
|
|
14 |
375-0943
|
Retainer bar (Tennant Industrial) |
1 |
|
|
15 |
375-0944
|
Side brush frame weldment (Tennant Industrial) |
1 |
|
|
16 |
375-0945
|
T-nut M8-1.25 x 14.5 (Tennant Industrial) |
2 |
|
|
17 |
175-3347
|
Washer .61 thrust |
4 |
|
|
18 |
275-0443
|
Screw M8-1.25 x 25 button head stainless steel |
2 |
|
|
19 |
375-0946
|
Side bumper weldment (Tennant Industrial) |
1 |
|
|
20 |
175-9789
|
PIN, HITCH, .375D X 3.12L, PL (Tennant Industrial) |
3 |
|
|
21 |
275-0485
|
Clevis pin |
1 |
|
|
22 |
175-2588
|
Cotter pin |
1 |
|
|
23 |
175-3357
|
Squeegee blade retainer |
1 |
|
|
24a |
275-7364
|
SQUEEGEE ASSY, SBA, linatex (Tennant Industrial) |
1 |
|
|
24b |
275-7386
|
SQUEEGEE ASSY, SBA, URE (Tennant Industrial) |
1 |
|
|
