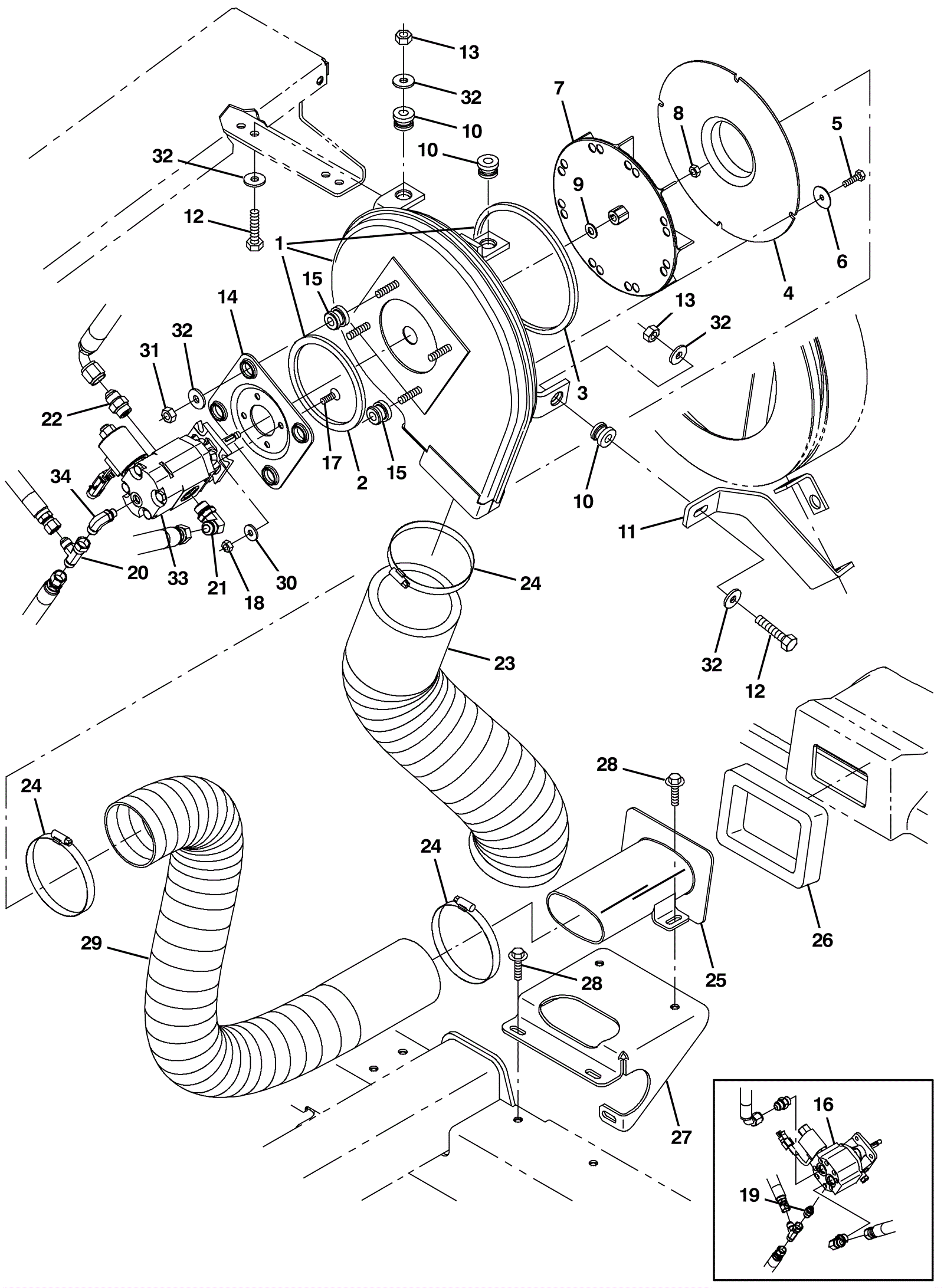

M30 Vacuum Fan Assembly - Sweeping

#PartDescriptionPriceReqNotesAvailability
1 275-9628 HOUSING ASSY, VACFAN, SWPR (Tennant Industrial) $555.11 1 (includes 2 and 3) usually ships 5-16 days
2 275-9629 SEAL, URE, 0.38, 0.75W 13.2L ADH (Tennant Industrial) $35.24 1 usually ships 5-16 days
3 N/A Not available Call for price 1 usually ships 3-26 days
4 275-9631 PLATE, INLET (Tennant Industrial) $71.98 1 usually ships 5-16 days
5 275-2405 Screw 1/4-20 x 3/4 hex head $10.40 4 usually ships 5-16 days
6 999-1288 Washer 1/4 x 1 OD fender stainless steel $0.99 4 ships same day
7 275-8520 IMPELLER, 9.00D X 1.40W X 0.376B (Tennant Industrial) $195.22 1 usually ships 1-5 days
8 275-9632 NUT, HEX, LOCK, .31-24, NL, THIN (Tennant Industrial) $5.01 1 usually ships 1-5 days
9 999-0120 Washer 3/8 SAE flat $0.99 1 ships same day
10 275-9633 ISOLATOR, VIB, BSHG, 1.1D 0.6L .4B 0.78H (Tennant Industria $22.55 3 usually ships 1-5 days
11 375-0830 Vacuum fan isolator bar (Tennant Industrial) $29.73 1 usually ships 1-5 days
12 175-0592 Bolt M10-1.5 x 40mm hex head $2.80 3 usually ships 1-5 days
13 999-9133 Nut M10-1.5 nut hex head stainless steel $1.25 3 usually ships 1-5 days
14 275-9614 BRACKET, MTG, MOTOR (Tennant Industrial) $55.78 1 usually ships 1-5 days
15 175-2429 Vibration isolator $6.99 4 ships same day
16 675-7991 MOTOR, HYD, GEAR, EXT 0.17 LH 1800 (Tennant Industrial) $2,309.28 1 usually ships 5-16 days
17 275-9618 SCREW, FLT, SOC, .25-20 X 1.00, AL (Tennant Industrial) $4.68 4 usually ships 5-16 days
18 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 4 ships same day
19 275-9634 FITTING, HYD, STR, JM06/OM04 (Tennant Industrial) $10.02 1 usually ships 1-5 days
20 275-9635 FITTING, HYD, TEE, JF06/JM06/JM06, RUN (Tennant Industrial) $50.60 1 usually ships 1-5 days
21 175-7165 FITTING, HYD, E90, JM08/OM08 (Tennant Industrial) $14.86 1 usually ships 1-5 days
22 275-0415 Straight hydraulic fitting $6.00 1 usually ships 1-5 days
23 275-9636 MUFFLER, VACFAN, 4.0ID (Tennant Industrial) $107.05 1 usually ships 1-5 days
24 175-7146 Wormdrive clamp (Tennant Industrial) $8.85 3 usually ships 5-16 days
25 275-9637 DUCT, VACFAN, CASTING (Tennant Industrial) $50.94 1 usually ships 1-5 days
26 275-9638 GASKET, NEO, 1.25, 04.45W 06.42L, ADH (Tennant Industrial) $15.03 1 usually ships 5-16 days
27 375-0831 Inlet channel (Tennant Industrial) $63.46 1 usually ships 1-5 days
28 275-9575 SCREW, HEX, M8 X 1.25 X 25, 9.8, SEMS (Tennant Industrial) $3.67 5 ships same day
29 375-0832 Vacuum flex hose (Tennant Industrial) $210.42 1 usually ships 1-5 days
30 999-0016 Washer 1/4 flat plain finish $0.99 4 ships same day
31 999-0324 Nut 3/8-16 nylon insert lock jam zinc plated $0.99 4 ships same day
32 275-1169 Washer .40 x 12mm flat $5.10 10 ships same day
33 375-0833 Hydraulic gear motor (Tennant Industrial) $2,198.05 1 usually ships 1-5 days
34 275-9450 FITTING, HYD, E90, JM06/OM04 (Tennant Industrial) $22.55 1 usually ships 1-5 days
