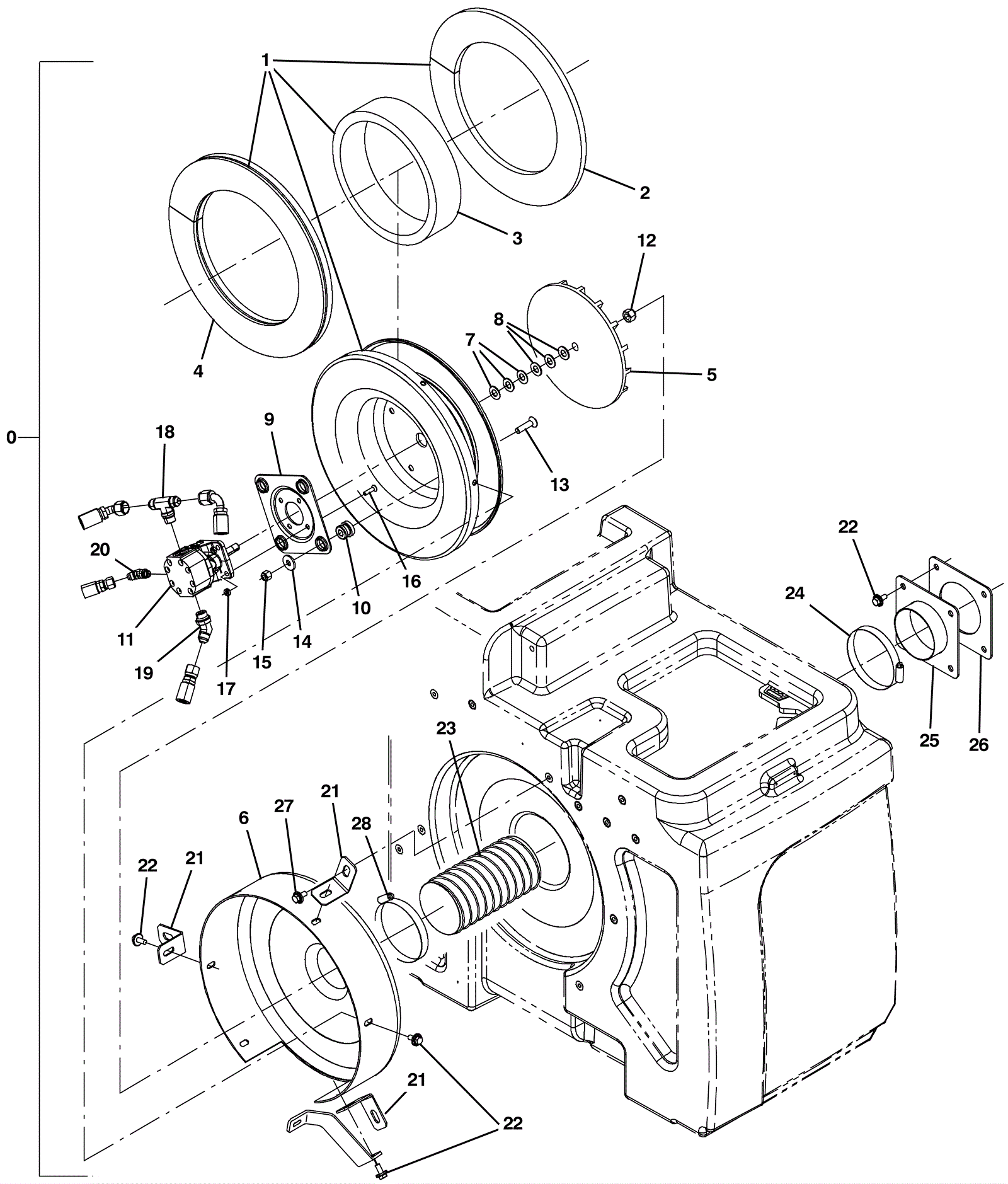

| # | Part | Description |
Req | Notes | Availability |
|---|
0 |
275-9605
|
FAN KIT, SCRUB, REPLMT [M20&T20] (Tennant Industrial) |
1 |
(includes 1-22) |
|
1 |
275-9606
|
HOUSING ASSY, VACFAN, SCRBR (Tennant Industrial) |
1 |
(includes 2-4) |
|
2 |
275-9607
|
INSULATION, FLAME-RETARDANT, 0.50 (Tennant Industrial) |
1 |
|
|
3 |
275-9608
|
INSULATION, FLAME-RETARDANT, 0.75-0.88 (Tennant Industrial) |
1 |
|
|
4 |
275-9609
|
INSULATION, FLAME-RETARDANT, 0.75-0.88 (Tennant Industrial) |
1 |
|
|
5 |
275-9610
|
IMPELLER, 9.5D, 18 BLADE MACH (Tennant Industrial) |
1 |
|
|
6 |
275-9611
|
HOUSING WLDT, VACFAN, FRONT [528] (Tennant Industrial) |
1 |
|
|
7 |
275-9612
|
SHIM, WASHER, 0.88D 0.51B .020 (Tennant Industrial) |
3 |
|
|
8 |
275-9613
|
SHIM, WASHER, 0.88D 0.51B .060 (Tennant Industrial) |
3 |
|
|
9 |
275-9614
|
BRACKET, MTG, MOTOR (Tennant Industrial) |
1 |
|
|
10 |
175-2429
|
Vibration isolator |
4 |
|
|
11a |
275-9615
|
MOTOR KIT, REPLMT [M20&T20] (Tennant Industrial) |
1 |
(includes 11b-20) |
|
11b |
175-4202
|
Square keyway |
1 |
|
|
11c |
275-4070
|
VR, SEAL KIT, MOTOR, HYD, GEAR [BARNS] (Tennant Industrial) |
1 |
|
|
12 |
275-9616
|
NUT, LOW CROWN, .50-20 (Tennant Industrial) |
1 |
|
|
13 |
275-9617
|
SCREW, FLT, SOC, .38-16 X 1.50, AL (Tennant Industrial) |
4 |
|
|
14 |
275-1169
|
Washer .40 x 12mm flat |
4 |
|
|
15 |
999-0324
|
Nut 3/8-16 nylon insert lock jam zinc plated |
4 |
|
|
16 |
275-9618
|
SCREW, FLT, SOC, .25-20 X 1.00, AL (Tennant Industrial) |
4 |
|
|
17 |
999-0152
|
Nut 1/4-20 nylon insert lock zinc plated |
4 |
|
|
18 |
275-9619
|
FITTING, HYD, TEE, JM08/JM08/OM08, BR (Tennant Industrial) |
1 |
|
|
19 |
275-9620
|
FITTING, HYD, E45, JM08/OM08 (Tennant Industrial) |
1 |
|
|
20 |
275-9621
|
FITTING, HYD, E45, JM06/OM04 (Tennant Industrial) |
1 |
|
|
21 |
275-9622
|
ANGLE, SPPT, FAN (Tennant Industrial) |
3 |
|
|
22 |
275-4736
|
Screw M8-1.25 x 20mm hex washer head stainless steel SEMS |
10 |
|
|
23 |
275-9624
|
HOSE, FLEX, 4.00D, 24.0L (Tennant Industrial) |
1 |
|
|
24 |
275-9625
|
CLAMP, HOSE, WORMDRIVE, 3.75-4.62D, .62W (Tennant Industria |
1 |
|
|
25 |
275-9626
|
PLATE WLDT, HOSE, VACUUM (Tennant Industrial) |
1 |
|
|
26 |
275-9627
|
GASKET, PLT, HOSE, VACUUM (Tennant Industrial) |
1 |
|
|
27 |
275-9575
|
SCREW, HEX, M8 X 1.25 X 25, 9.8, SEMS (Tennant Industrial) |
3 |
|
|
28 |
175-7146
|
Wormdrive clamp (Tennant Industrial) |
1 |
|
|
