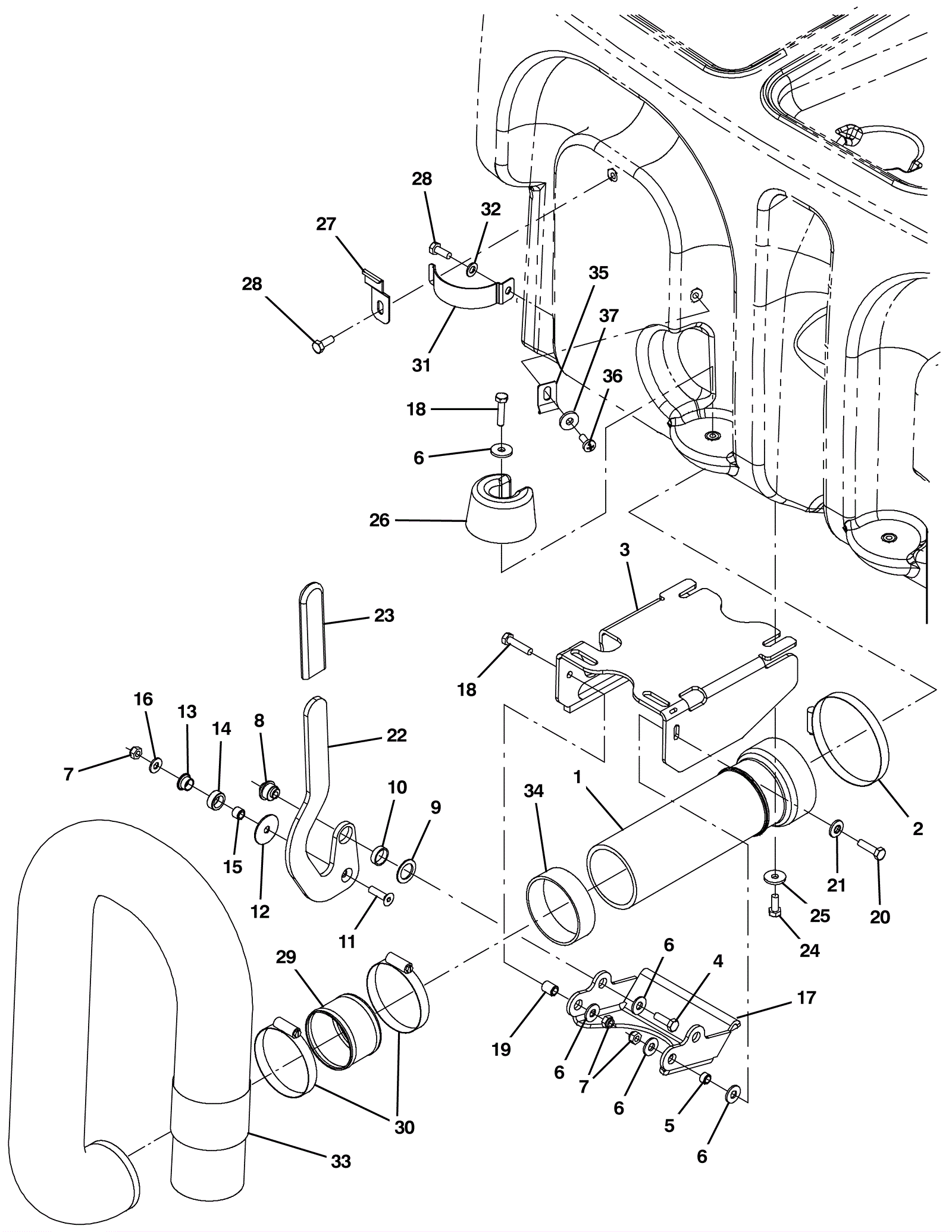

Recovery Tank Drain Assembly

#PartDescription ReqNotesAvailability
1 275-9601 TUBE KIT, TANK, RECVY, REPLMT (Tennant Industrial) 1
2 175-7146 Wormdrive clamp (Tennant Industrial) 1
3 275-9602 MOUNT WLDT, VALVE, PINCH, LH (Tennant Industrial) 1
4 999-0581 Bolt M8-1.25 x 25mm hex head full thread zinc 1
5 175-2263 Sleeve 1
6 999-0024 Washer 5/16 flat stainless steel 5
7 999-0496 Nut M8-1.25 nylon insert lock stainless steel 3
8 275-9549 BUSHING, ECCENTRIC, ADJ (Tennant Industrial) 1
9 275-9550 WASHER, FLAT, 0.79B 1.18D .06, NYL (Tennant Industrial) 1
10 275-9551 BUSHING, SLEEVE, 0.75B 0.88D 0.25L (Tennant Industrial) 1
11 999-0770 Screw M8-1.25 x 30mm flat head socket stainless steel 1
12 275-9552 WASHER, THRUST, 0.34B 1.50D .06 (Tennant Industrial) 1
13 175-3335 Flanged bushing 1
14 275-9553 ROLLER, BRG (Tennant Industrial) 1
15 275-9554 TUBE, 0.32ID 0.50OD 00.4L, SS (Tennant Industrial) 1
16 175-7920 Washer M8 flat stainless steel 1
17 275-9555 Pinch arm (Tennant Industrial) 1
18 175-0634 Bolt M8-1 1/4 x 35mm hex head 2
19 175-9263 Sleeve 1
20 999-0248 Bolt M8-1.25 x 30mm hex head full thread plain finish 1
21 999-1407 Washer 5/16 belleville 1
22 275-9603 HANDLE, VALVE, PINCH, LH (Tennant Industrial) 1
23 275-9557 GRIP, HANDLE (Tennant Industrial) 1
24 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel 4
25 175-7920 Washer M8 flat stainless steel 4
26 275-9558 Hose plug 2
27 275-9559 BRACKET, RETAINING, HOSE (Tennant Industrial) 1
28 999-0784 Screw M8-1.25 x 16mm hex head stainless steel 2
29 275-9560 TUBE, 2.90ID 3.00OD 02.4L, SS (Tennant Industrial) 1
30 997-2009 Hose clamp 2
31 275-9561 STRAP, RETAINING, HOSE (Tennant Industrial) 1
32 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 1
33 275-9562 HOSE, DRAIN, 3.00ID X 48.0L (Tennant Industrial) 1
34 275-9604 TUBE, ACRYLIC, CLR, 3.25ID 3.50OD 01.0L (Tennant Industrial 1
35 375-0812 Retaining hose bracket (Tennant Industrial) 1
36 275-2235 SCREW, BTN, M8 X 1.25 X 16, SS (Tennant Industrial) 1
37 999-9097 Washer M8 flat stainless steel 1
