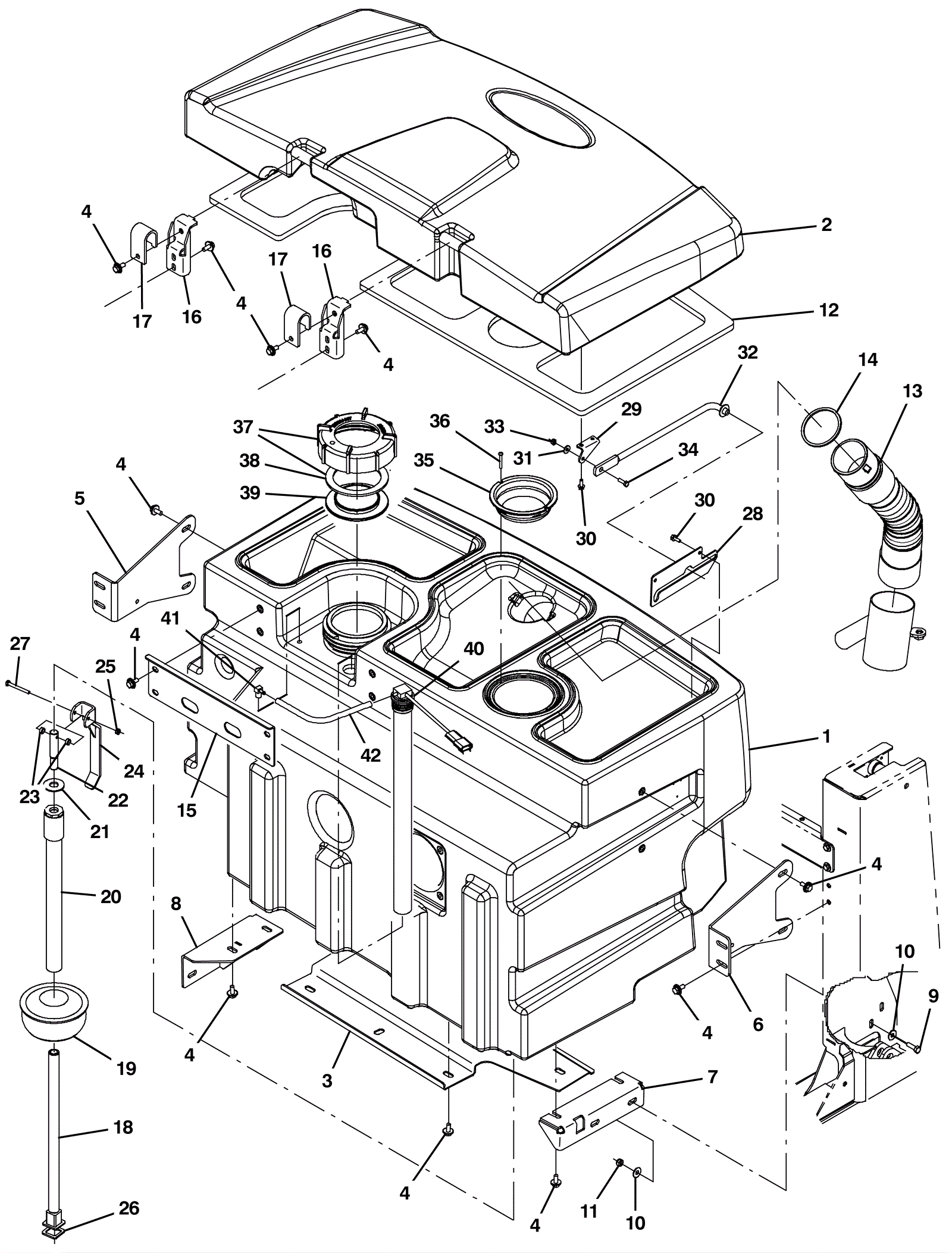

M30 Recovery Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1 375-0814 Recovery tank (Tennant Industrial) $1,936.39 1 usually ships 1-5 days
2 375-0815 Recovery tank cover (Tennant Industrial) $1,003.37 1 usually ships 1-5 days
3 375-0816 Bottom tank plate (Tennant Industrial) $98.02 1 usually ships 10-16 days
4 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS $4.49 25 usually ships 10-16 days
5 275-9596 BRACKET, SPPT, TANK, RH (Tennant Industrial) $42.18 1 usually ships 1-5 days
6 275-9597 BRACKET, SPPT, TANK, LH (Tennant Industrial) $42.18 1 usually ships 1-5 days
7 375-0817 Left hand recovery tank bracket (Tennant Industrial) $64.35 1 usually ships 1-5 days
8 375-0818 Right hand bracket weldment (Tennant Industrial) $73.51 1 usually ships 1-5 days
9 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel $2.64 4 ships same day
10 999-0024 Washer 5/16 flat stainless steel $1.34 8 usually ships 12-18 days
11 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.34 4 ships same day
12 375-0819 Recovery tank cover gasket (Tennant Industrial) $305.39 1 usually ships 10-16 days
13 275-9579 HOSE ASSY, SQGE (Tennant Industrial) $355.40 1 usually ships 10-16 days
14 275-9580 GASKET, URE, .16, 3.23ID 3.63OD (Tennant Industrial) $7.17 1 usually ships 10-16 days
15 275-9576 PLATE, SPPT, TANK (Tennant Industrial) $40.51 1 usually ships 1-5 days
16 275-9599 BRACKET, SPPT, COVER, TANK, RECVY (Tennant Industrial) $59.18 2 usually ships 1-5 days
17a 275-9600 BRACKET, MTG, COVER, RECVY TANK (Tennant Industrial) $24.84 2 usually ships 10-16 days
17b 275-9585 PLUG KIT, DRAIN, RECVY, CI [M20 & T20] (Tennant Industrial) $1,006.87 1 (includes 18-27) usually ships 1-5 days
18 275-9587 TUBE WLDT, PLUG, DRAIN (Tennant Industrial) $247.88 1 usually ships 1-5 days
19 275-9586 PLUG, DRAIN, EXPANDABLE, 4.75-6.00 (Tennant Industrial) $154.53 1 ships same day
20 275-9589 TUBE ASSY, PLUG, DRAIN $121.00 1 usually ships 10-16 days
21 275-9590 WASHER, FLAT, 0.78B 1.75D .18, SS (Tennant Industrial) $7.38 1 ships same day
22 275-9588 PIN, LIFT, DRAIN (Tennant Industrial) $59.18 1 usually ships 1-5 days
23 175-0550 Sleeve $5.02 2 ships same day
24 275-9591 HANDLE WLDT, DRAIN (Tennant Industrial) $102.35 1 usually ships 1-5 days
25 999-0497 Nut M6-1 nylon insert lock stainless steel $0.99 1 ships same day
26 275-9592 SEAL, SHAFT, DRAIN PLUG (Tennant Industrial) $4.50 1 usually ships 10-16 days
27 175-3400 Bolt M6-1 x 55mm hex head stainless steel $5.28 1 usually ships 1-5 days
28 275-9581 PLATE, MTG, PROP ROD (Tennant Industrial) $31.01 1 usually ships 1-5 days
29 275-9582 BRACKET, MTG, PROP ROD (Tennant Industrial) $29.51 1 usually ships 1-5 days
30 275-9583 SCREW, HEX, .25-10 X 0.75, FMG/A, SS (Tennant Industrial) $4.17 4 usually ships 10-16 days
31 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 1 ships same day
32 175-9358 Seat rod $69.19 1 usually ships 10-16 days
33 999-0497 Nut M6-1 nylon insert lock stainless steel $0.99 1 ships same day
34 999-1312 Screw M6-1 x 20mm hex head stainless steel $0.99 1 ships same day
35 275-2445 Vacuum screen (Tennant Industrial) $43.60 1 usually ships 10-16 days
36 175-5918 SCREW, PAN, PHL, 12-16 X 0.50, F/ PLSTC (Tennant Industrial $4.17 2 usually ships 1-5 days
37 175-3384 Tank cap $44.00 1 (includes 38) usually ships 10-16 days
38 275-4663 Gasket $9.79 1 usually ships 10-16 days
39 175-3414 Tank cover $37.40 1 usually ships 10-16 days
40 275-6589 Switch assembly (TENNANT INDUSTRIAL) (OBSOLETE) $193.72 1 usually ships 10-16 days
41 175-6851 FITTING, BRS, E90, BM03/PM02 (Tennant Industrial) $15.67 1 usually ships 10-16 days
42 175-0698 HOSE, VACUUM, 0.16ID X 006.0L (Tennant Industrial) $19.17 1 usually ships 10-16 days
