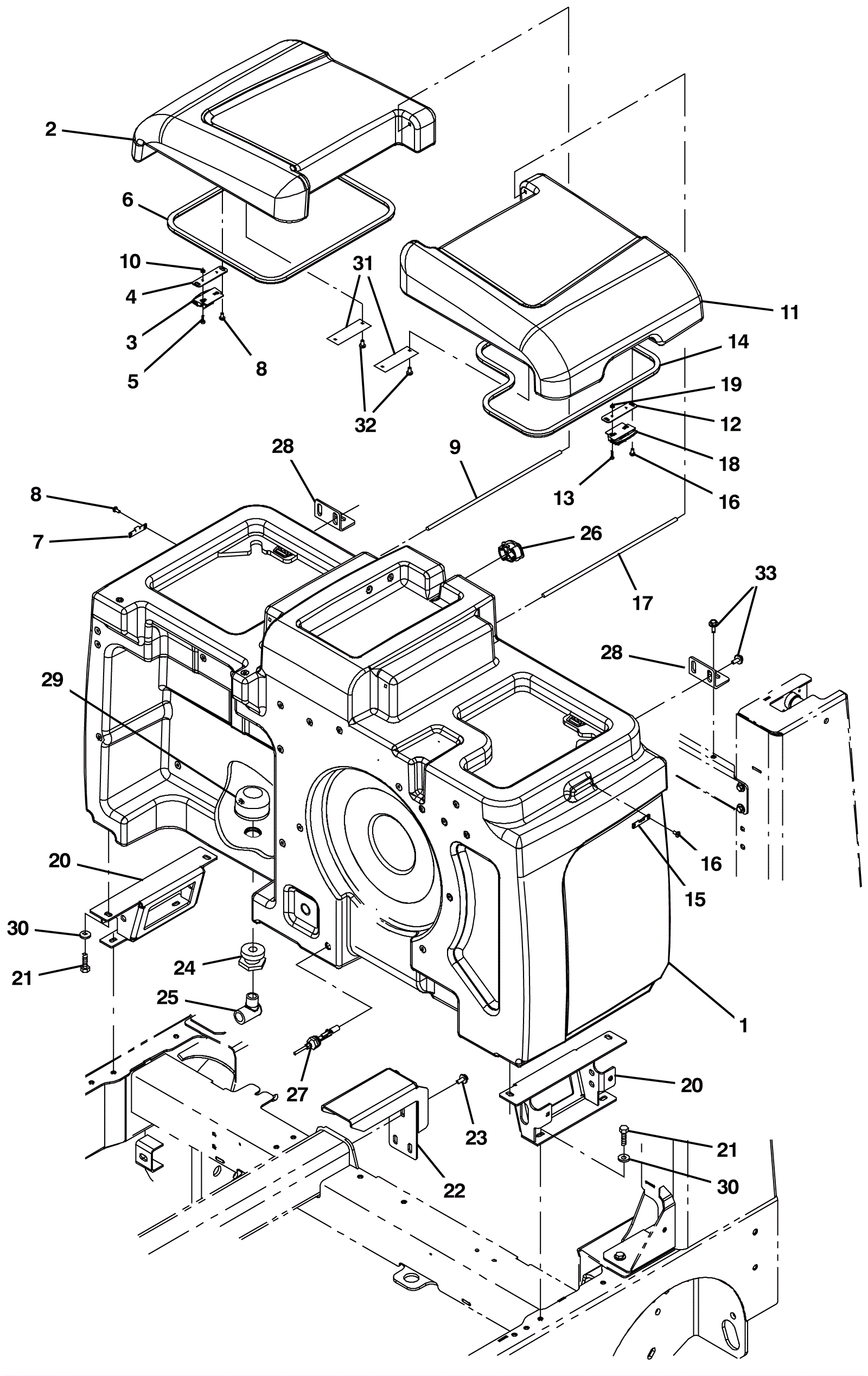

Solution Tank Assembly

#PartDescription ReqNotesAvailability
1 375-0804 Solution tank (Tennant Industrial) 1
2 375-0805 Right hand solution tank cover kit (Tennant Industrial) 1 (includes 3-10)
3 275-9545 LATCH, COVER (Tennant Industrial) 1
4 275-9537 PLATE, MTG, LATCH (Tennant Industrial) 1
5 999-0463 Screw 6-32 x 3/8 pan head slotted zinc plated 2
6 375-0806 Bulb seal (Tennant Industrial) 1
7 275-9546 BRACKET, KEEPER, LATCH (Tennant Industrial) 1
8 175-5918 SCREW, PAN, PHL, 12-16 X 0.50, F/ PLSTC (Tennant Industrial 4
9 375-0807 Round bar (Tennant Industrial) 1
10 375-0808 Nut 06-32 standard hex (Tennant Industrial) 2
11 375-0809 Left hand solution tank cover kit (Tennant Industrial) 1 (includes 12-19)
12 275-9537 PLATE, MTG, LATCH (Tennant Industrial) 1
13 999-0463 Screw 6-32 x 3/8 pan head slotted zinc plated 2
14 375-0806 Bulb seal (Tennant Industrial) 1
15 275-9546 BRACKET, KEEPER, LATCH (Tennant Industrial) 1
16 175-5918 SCREW, PAN, PHL, 12-16 X 0.50, F/ PLSTC (Tennant Industrial 4
17 375-0807 Round bar (Tennant Industrial) 1
18 275-9545 LATCH, COVER (Tennant Industrial) 1
19 375-0808 Nut 06-32 standard hex (Tennant Industrial) 2
20 375-0810 Solution tank bracket (Tennant Industrial) (OBSOLETE) 2
21 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel 8
22 375-0811 Center support tank bracket (Tennant Industrial) 1
23 275-9575 SCREW, HEX, M8 X 1.25 X 25, 9.8, SEMS (Tennant Industrial) 3
24 175-9552 Plastic fitting 1
25 175-0662 90 degree plastic fitting 1
26 175-3415 Solution tank plug 1
27 175-9554 Float switch 1
28 275-9530 ANGLE, SPPT, TANK, REAR (Tennant Industrial) 2
29 275-9543 FILTER, SOLTN, 20MESH, PM12 3.1D 02.6L 1
30 175-7920 Washer M8 flat stainless steel 8
31 275-4666 Solution tank decal plate 2
32 175-3223 Screw 12-16 x 1/2 pan head plastic 4
33 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS 4
