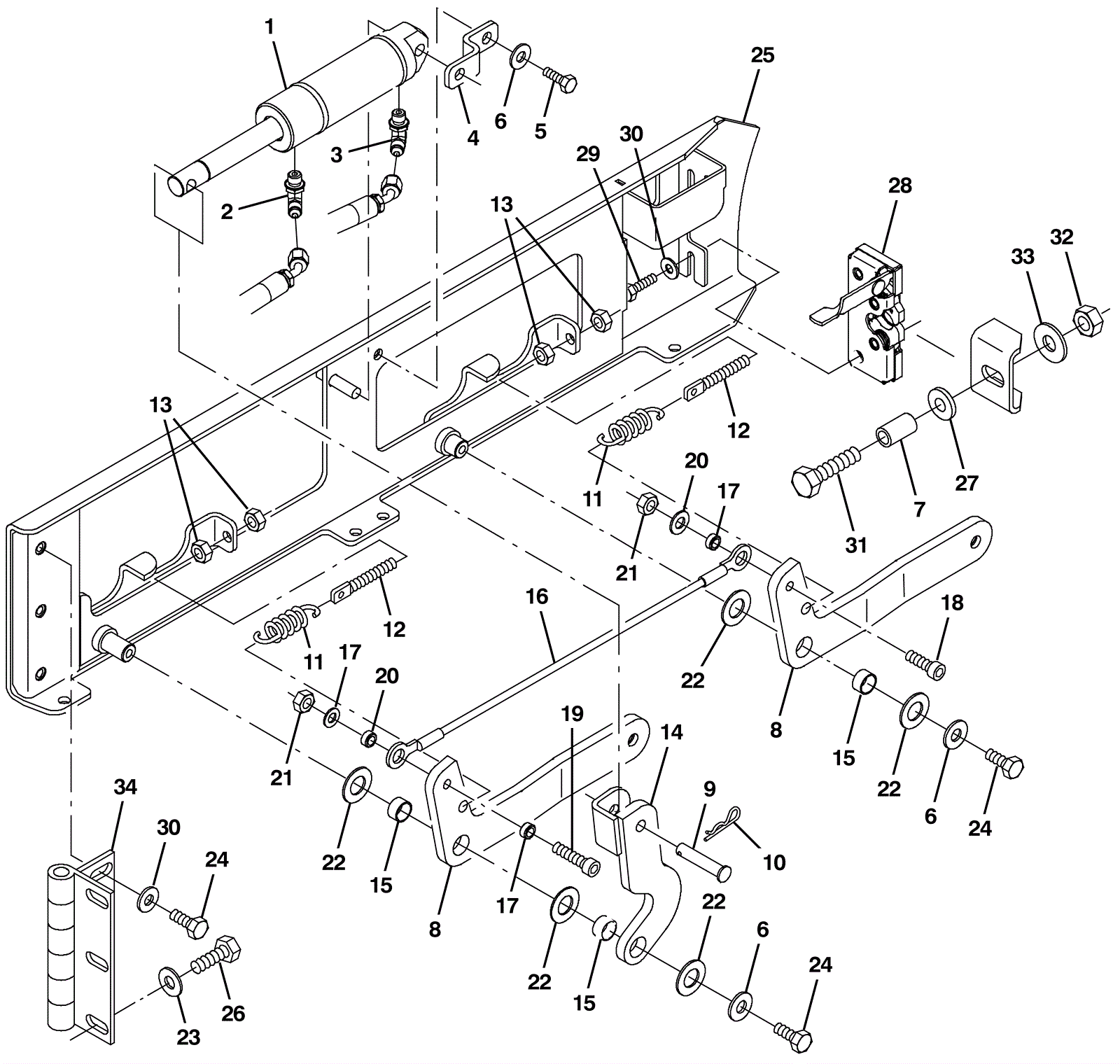

M30 Squeegee Lift Assembly - Right Side

#PartDescriptionPriceReqNotesAvailability
1 275-6034 Cylindrical head (Tennant Industrial) $582.83 1 usually ships 5-16 days
2 175-6919 Elbow fitting $12.70 1 usually ships 5-16 days
3 275-9514 FITTING, HYD, RST, SPCL (Tennant Industrial) $112.39 1 usually ships 1-5 days
4 275-9515 BRACKET, MTG, CYL (Tennant Industrial) $35.07 1 usually ships 1-5 days
5 999-1312 Screw M6-1 x 20mm hex head stainless steel $0.99 1 ships same day
6 999-9097 Washer M8 flat stainless steel $0.99 3 ships same day
7 275-9521 SLEEVE, 0.48B 0.68D 1.2L, CHAM [304SS] (Tennant Industrial) $16.87 1 usually ships 1-5 days
8 275-9516 ARM, SQGE, SIDE, RH (Tennant Industrial) $94.86 2 usually ships 1-5 days
9 175-2592 Clevis Pin 0.37 D X 1.75 L $3.60 1 ships same day
10 175-3281 Cotter pin $2.20 1 usually ships 5-16 days
11 175-0770 Extension spring $4.50 2 usually ships 5-16 days
12 175-0772 BOLT, EYE, M8 X 1.25 X 070MM, 05.50 EYE (Tennant Industrial $36.57 2 usually ships 1-5 days
13 999-1424 Nut M8-1.25 hex stainless steel $1.65 4 usually ships 11-24 days
14 275-9517 ARM WLDT, SQGE, LIFT, RH (Tennant Industrial) $99.87 1 usually ships 1-5 days
15 175-3349 Sleeved bushing $11.20 3 ships same day
16 275-0850 Side brush cable $22.80 1 usually ships 5-16 days
17 175-0550 Sleeve $3.40 3 ships same day
18 175-0602 Screw M8-1.25 x 25mm socket $3.00 1 usually ships 5-16 days
19 175-6821 SCREW, SOC, M8 X 1.25 X 35, 12.9 (Tennant Industrial) $5.64 1 ships same day
20 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 2 ships same day
21 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 2 ships same day
22 175-3347 Washer .61 thrust $4.40 5 ships same day
23 175-2305 Washer $3.60 3 ships same day
24 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel $1.85 5 ships same day
25 275-9518 DOOR WLDT, BRUSH, RH (Tennant Industrial) $519.37 1 usually ships 5-16 days
26 999-1372 Bolt M10-1.5 x 25mm hex head stainless steel $3.56 3 ships same day
27 275-0464 Washer 1/2 flat belleville $3.60 1 usually ships 5-16 days
28 275-6022 LATCH, HOOK (Tennant Industrial) $120.24 1 usually ships 5-16 days
29 999-1087 Bolt M6-1 x 25mm hex head stainless steel $0.99 2 ships same day
30 275-0092 Washer 1/4 flat belleville $2.90 5 usually ships 5-16 days
31 275-9519 SCREW, HEX, M12 X 1.75 X 55, SS (Tennant Industrial) $11.36 1 usually ships 1-5 days
32 999-0503 Nut M12-1.75 hex stainless steel $1.91 1 ships same day
33 999-0114 Washer 1/2 SAE flat $0.99 1 ships same day
34 275-9520 HINGE, .50PIN .19 4.0W 06.0L, 3/0.44SL (Tennant Industrial) $115.73 1 usually ships 5-16 days
