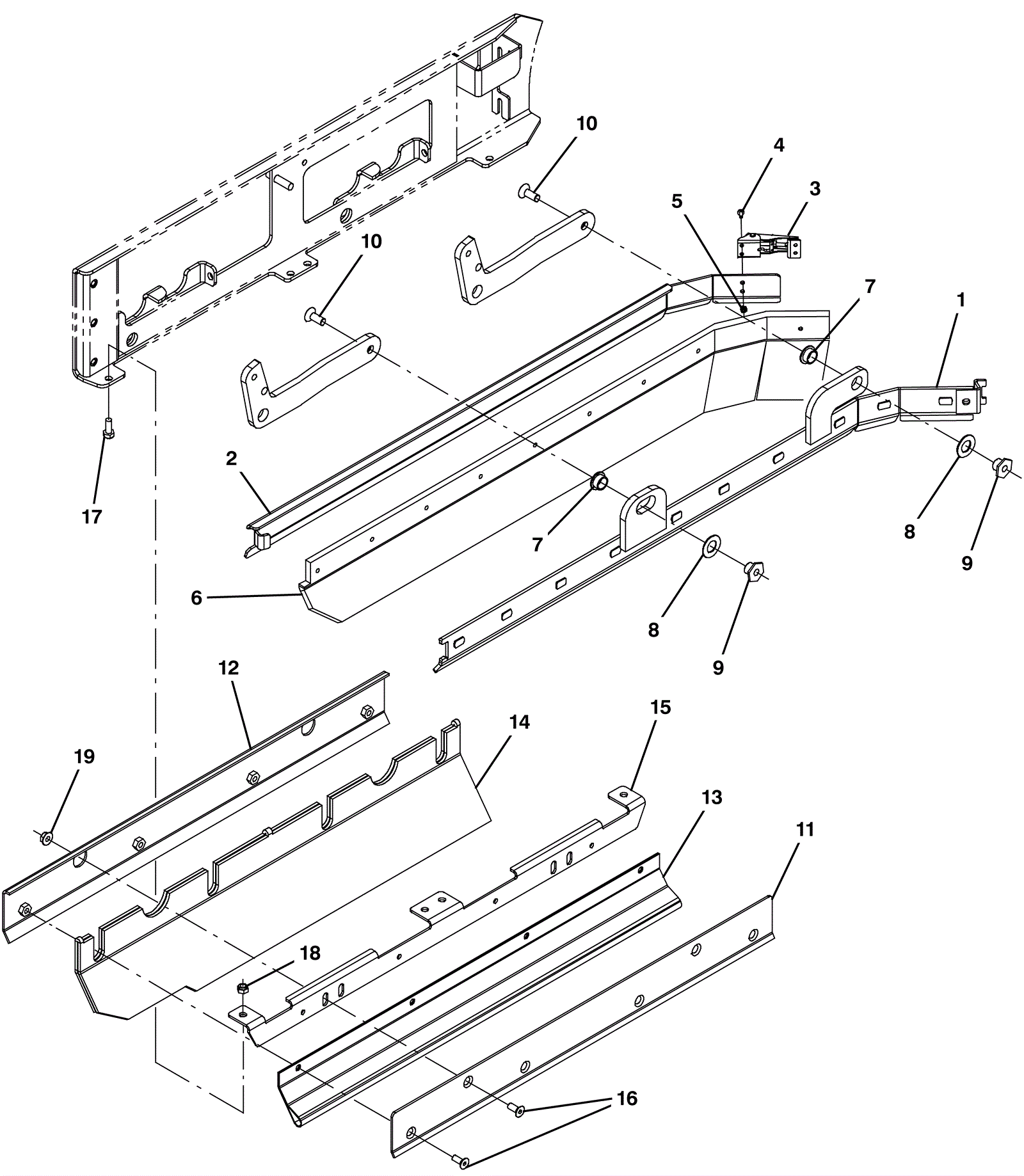

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
275-9503
|
FRAME WLDT, SQGE, RH (Tennant Industrial) |
1 |
|
|
2 |
275-9504
|
Right side squeegee retainer (Tennant Industrial) |
1 |
|
|
3 |
175-5324
|
Door latch |
1 |
|
|
4 |
999-0534
|
Screw M4-.7 x 10mm pan head slotted zinc |
2 |
|
|
5 |
999-0954
|
Nut M4-.7 nylon insert lock stainless steel |
2 |
|
|
6a |
275-9505
|
Squeegee blade linatex (Tennant Industrial) |
1 |
|
|
6b |
275-9506
|
BLADE, SQGE, .38 3.55W 038.3L, URE (Tennant Industrial) |
1 |
|
|
7 |
175-3460
|
Flanged bushing |
2 |
|
|
8 |
175-3347
|
Washer .61 thrust |
2 |
|
|
9 |
275-9507
|
NUT, T, M10 X 1.50 X 15.80OD X 13.0L (Tennant Industrial) |
2 |
|
|
10 |
275-9508
|
SCREW, FLT, SOC, M10 X 1.50 X 25, 10.9 (Tennant Industrial) |
2 |
|
|
11 |
275-9509
|
Brush door skirt mounting bracket ( Tennant Industrial) |
1 |
|
|
12 |
275-9510
|
BRACKET, MTG, SKIRT, DOOR (Tennant Industrial) |
1 |
|
|
13 |
275-9511
|
SKIRT, NEO, .06, 06.85W 27.95L, 08/ HOLE (Tennant Industria |
1 |
|
|
14 |
275-9512
|
SKIRT, NEO, .18, 10.37W 27.95L, 12/ H&S (Tennant Industrial |
1 |
|
|
15 |
275-9513
|
Brush door skirt mounting bracket ( Tennant Industrial) |
1 |
|
|
16 |
999-1324
|
Screw M8-1.25 x 20mm flat head stainless steel |
6 |
|
|
17 |
175-4927
|
Screw M8-1.25 x 20mm button head |
4 |
|
|
18 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
4 |
|
|
19 |
999-0665
|
Nut M8-1.25 flange lock |
2 |
|
|
