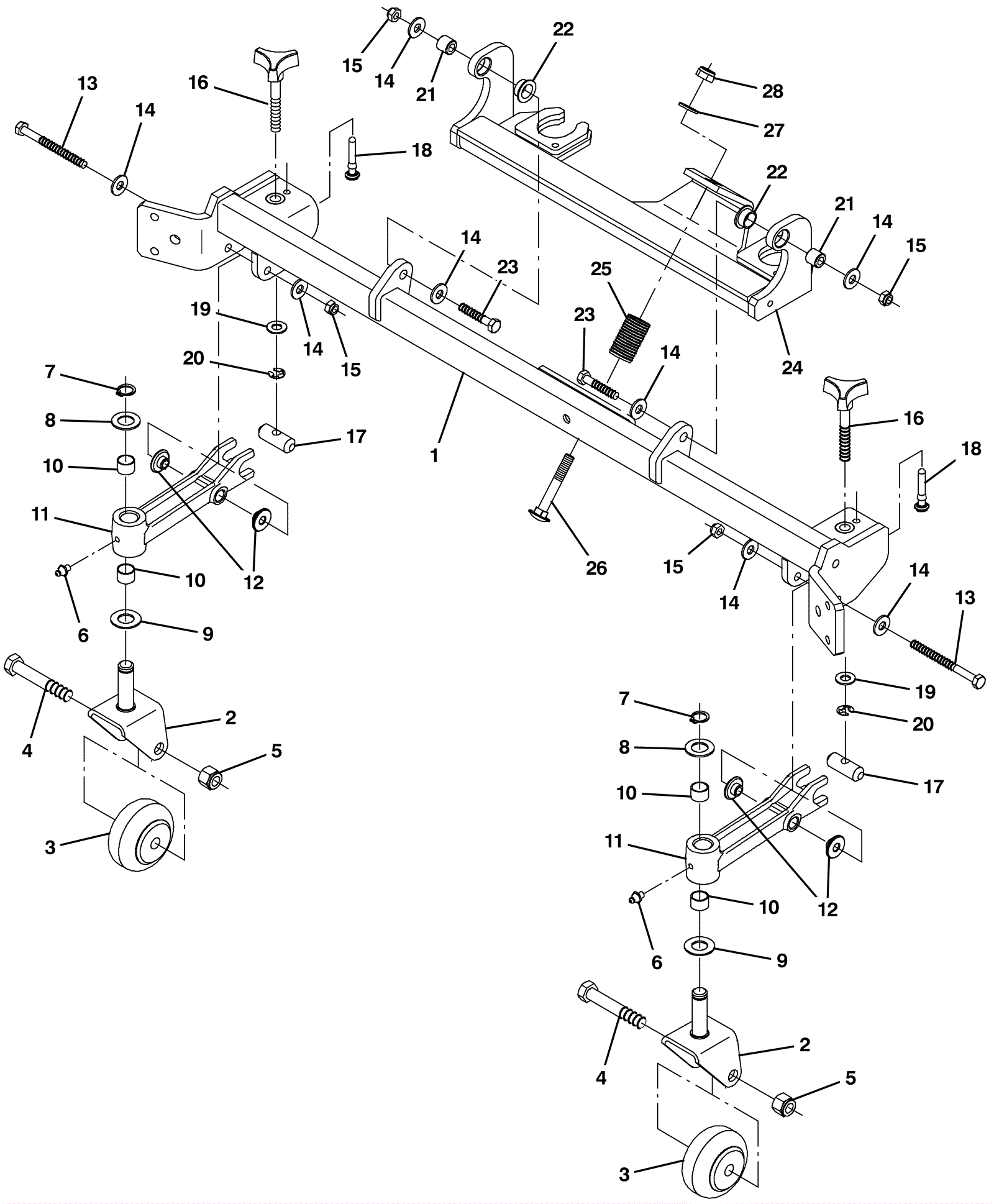

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
375-0802
|
Crossmember weldment (Tennant Industrial) |
1 |
|
|
2 |
275-9496
|
BRACKET WLDT, MTG, CASTER (Tennant Industrial) |
2 |
|
|
3 |
175-3481
|
WHEEL, 03.0D 1.38W 0.50B (Tennant Industrial) |
2 |
|
|
4 |
999-0640
|
Bolt 1/2-13 x 3 18-8 hex head stainless steel |
2 |
|
|
5 |
999-1208
|
Nut 1/2-13 nylon insert lock stainless steel |
2 |
|
|
6 |
175-3248
|
Grease fitting |
2 |
|
|
7 |
175-9236
|
Heavy duty retainer ring |
2 |
|
|
8 |
275-5101
|
WASHER, FLAT, 0.69B 1.19D .06, STL, PL (Tennant Industrial) |
2 |
|
|
9 |
175-3347
|
Washer .61 thrust |
2 |
|
|
10 |
175-5333
|
Sleeve bushing |
4 |
|
|
11 |
375-0803
|
Pivot caster (Tennant Industrial) |
2 |
|
|
12 |
675-9890
|
Flanged bushing |
4 |
|
|
13 |
275-0444
|
SCREW, HEX, M8 X 1.25 X 90, 8.8 (Tennant Industrial) |
2 |
|
|
14 |
999-9097
|
Washer M8 flat stainless steel |
8 |
|
|
15 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
4 |
|
|
16 |
275-9498
|
KNOB ASSY, STAR, 1.12D 3EAR M10 (Tennant Industrial) |
2 |
|
|
17 |
275-9499
|
PIN, 0.63D 01.8L, 1/M10H, 2CHAM (Tennant Industrial) |
2 |
|
|
18 |
275-9502
|
STOP, ROTATION (Tennant Industrial) |
2 |
|
|
19 |
999-0120
|
Washer 3/8 SAE flat |
2 |
|
|
20 |
175-0814
|
Retaining ring (Tennant Industrial) |
2 |
|
|
21 |
175-9347
|
Sleeve |
2 |
|
|
22 |
175-3460
|
Flanged bushing |
2 |
|
|
23 |
175-2854
|
Screw M8-1.25 x 45mm hex head stainless steel |
2 |
|
|
24 |
275-9492
|
BRACKET WLDT, MTG, SQGE (Tennant Industrial) |
1 |
|
|
25 |
275-9493
|
SPRING, DSL, 1.00OD 0.50ID 1.70L (Tennant Industrial) |
1 |
|
|
26 |
275-9494
|
BOLT, CARRIAGE, M10 X 1.50 X 70 (Tennant Industrial) |
1 |
|
|
27 |
275-1169
|
Washer .40 x 12mm flat |
1 |
|
|
28 |
999-1120
|
Nut M10-1.5 nylon insert lock stainless steel |
1 |
|
|
