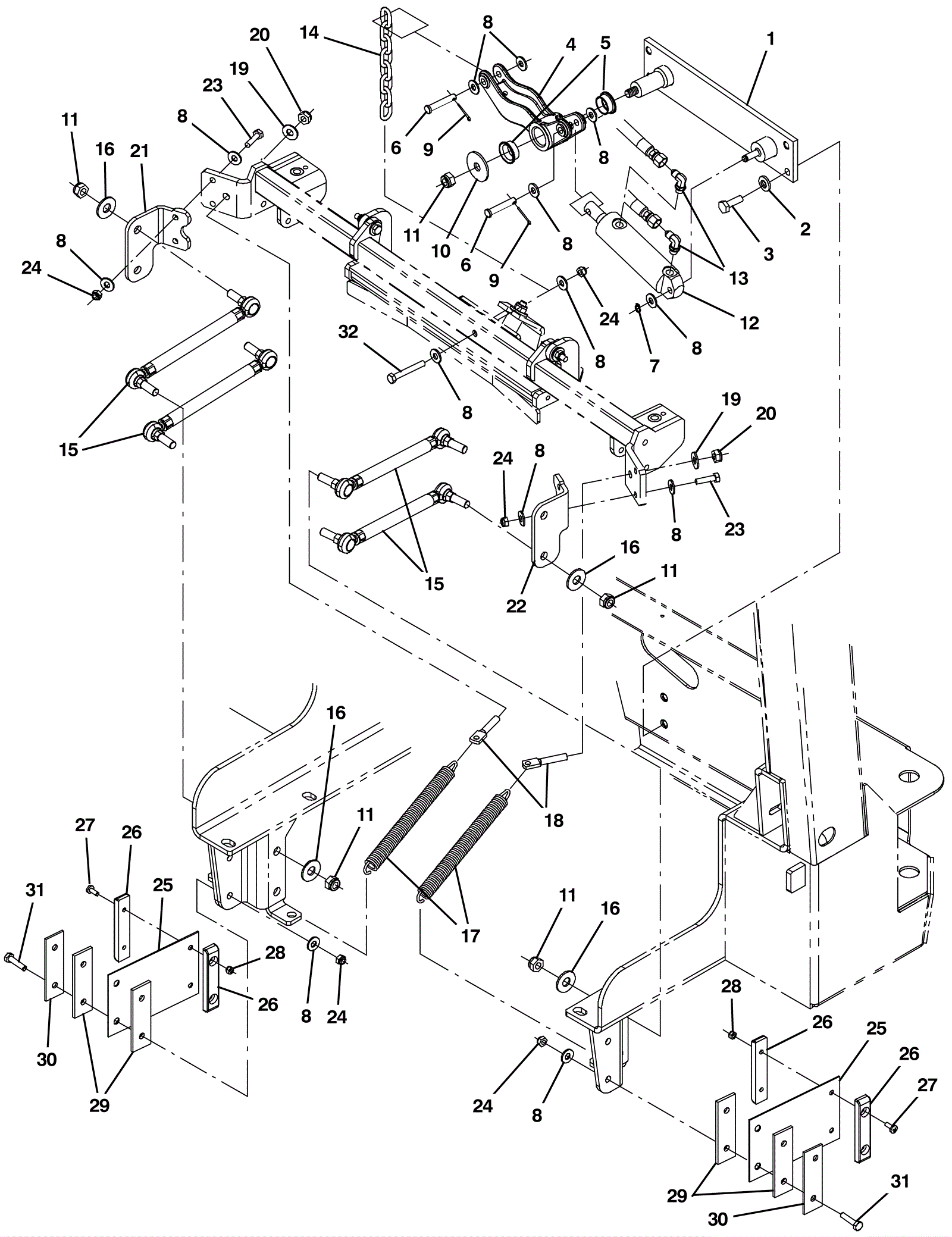

Squeegee Lift Assembly - Rear

#PartDescription ReqNotesAvailability
1 275-9485 PLATE WLDT, LIFT, SQGE (Tennant Industrial) 1
2 175-2305 Washer 4
3 999-0774 Bolt M10-1.5 x 30mm hex head stainless steel full thread 4
4 275-9483 BELLCRANK, LIFT, SQGE (Tennant Industrial) 1
5 275-3054 BUSHING, FLNG, 1.00B 1.13D 0.50L (Tennant Industrial) 2
6 173-1595 Clevis pin 2
7 175-6752 RING, RETAINING, EXT, 0.38D, [SELFLOCK] (Tennant Industrial 1
8 999-9097 Washer M8 flat stainless steel 19
9 175-2588 Cotter pin 2
10 175-3470 Washer .53b 1.88d .12 steel plated 1
11 999-0519 Nut M12-1.75 nylon insert lock stainless steel 9
12 275-6034 Cylindrical head (Tennant Industrial) 1
13 175-6919 Elbow fitting 2
14 275-9484 CHAIN, STR, 4/0, 08 LINK (Tennant Industrial) 1
15 275-9474 LINK ASSY, ROD-END, M12 (Tennant Industrial) 4
16 999-0114 Washer 1/2 SAE flat 8
17 275-9475 SPRING, EXTN, 0.88OD 0.14WIR 09.0L (Tennant Industrial) 2
18 175-0804 BOLT, EYE, M10 X 1.50 X 064MM, 07.10 EYE (Tennant Industria 2
19 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 2
20 999-1120 Nut M10-1.5 nylon insert lock stainless steel 2
21 275-9477 ANGLE, RH (Tennant Industrial) 1
22 275-9478 ANGLE, LH (Tennant Industrial) 1
23 999-0785 Screw M8-1.25 x 30mm hex head stainless steel 4
24 999-0496 Nut M8-1.25 nylon insert lock stainless steel 8
25 275-9479 SPRING, FLAT, .08, 4.50W X 07.0L (Tennant Industrial) 2
26 275-9480 BLOCK, CENTERING (Tennant Industrial) 4
27 999-1257 Screw M6-1 x 16mm pan head Phillips 4
28 999-0497 Nut M6-1 nylon insert lock stainless steel 4
29 275-9481 SPACER, PAD, RBR (Tennant Industrial) 4
30 275-9482 RETAINER, SPRING (Tennant Industrial) 2
31 999-0786 Screw M8-1.25 x 35mm hex head stainless steel 4
32 175-3163 Screw M8-1.25 x 60mm hex head 1
