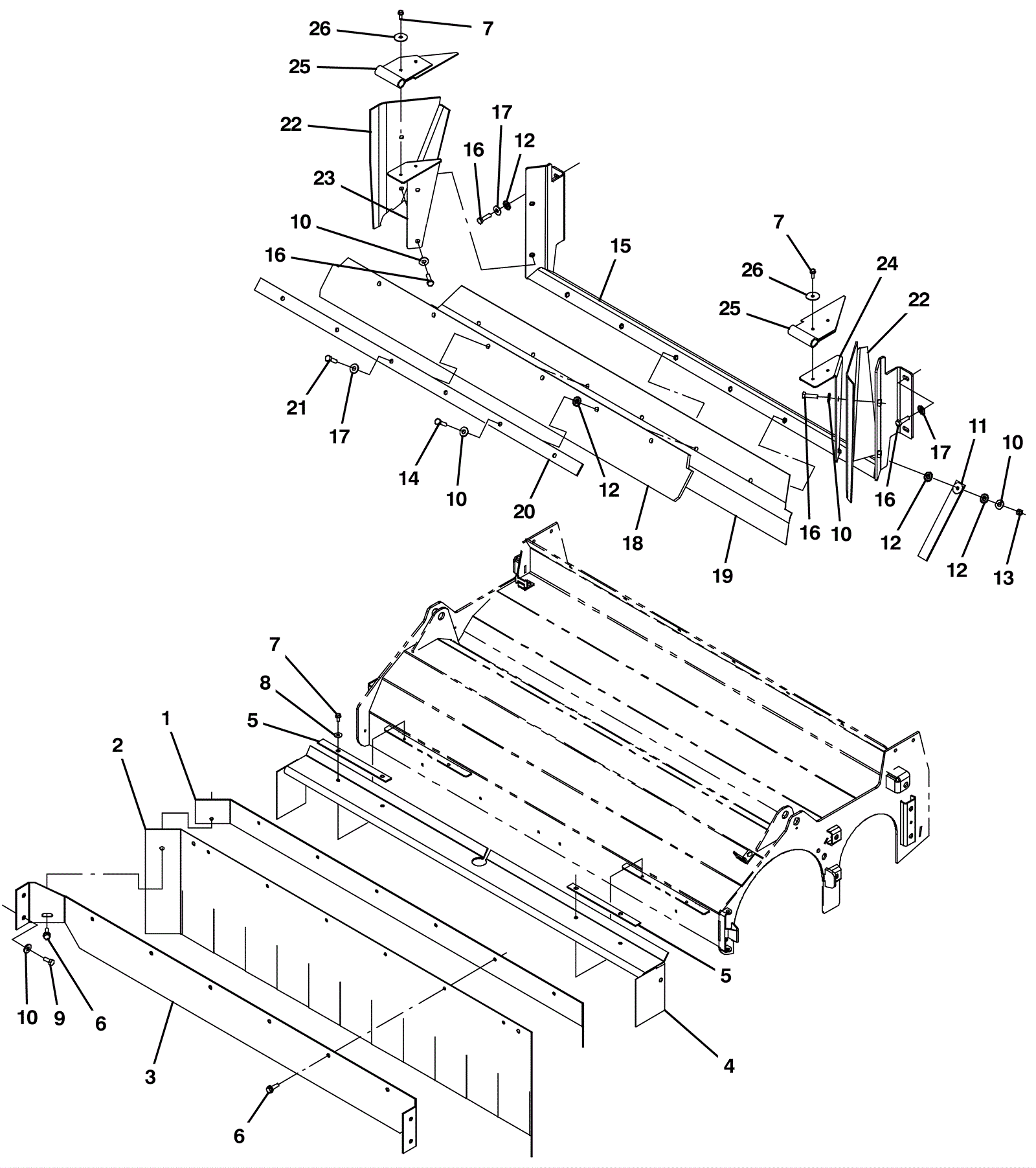

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
375-0786
|
Front skirt plate (Tennant Industrial) |
1 |
|
|
2 |
375-0787
|
10 hole skirt (Tennant Industrial) |
1 |
|
|
3 |
375-0788
|
Front skirt retainer (Tennant Industrial) |
1 |
|
|
4 |
375-0789
|
12 hole skirt (Tennant Industrial) |
1 |
|
|
5 |
275-9462
|
RETAINER, SKIRT, .12, 0.8W X 09.1L, GRAY (Tennant Industria |
2 |
|
|
6 |
175-2888
|
Bolt M8-1 1/4 x 25mm hex head |
8 |
|
|
7 |
175-3166
|
Bolt M6-1 x 16mm hex head |
10 |
|
|
8 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
6 |
|
|
9 |
999-0499
|
Bolt M8-1.25 x 20mm hex head full thread stainless steel |
4 |
|
|
10 |
999-9097
|
Washer M8 flat stainless steel |
10 |
|
|
11 |
275-9261
|
Static strip with grommet |
1 |
|
|
12 |
175-2893
|
Washer 5/16 internal/external locking |
4 |
|
|
13 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
1 |
|
|
14 |
275-2056
|
SCREW, HEX, M8 X 1.25 X 50, FL, SS (Tennant Industrial) |
1 |
|
|
15 |
375-0790
|
Recirculation bracket weldment (Tennant Industrial) |
1 |
|
|
16 |
999-0501
|
Bolt M8-1.25 x 25mm hex head full thread stainless steel |
8 |
|
|
17 |
999-0024
|
Washer 5/16 flat stainless steel |
9 |
|
|
18 |
375-0791
|
6 hole rubber skirt (Tennant Industrial) |
1 |
|
|
19 |
375-0792
|
6 hole skirt (Tennant Industrial) |
1 |
|
|
20 |
375-0793
|
Recirculation flap skirt (Tennant Industrial) |
1 |
|
|
21 |
999-0785
|
Screw M8-1.25 x 30mm hex head stainless steel |
5 |
|
|
22 |
375-0794
|
2 hole skirt (Tennant Industrial) |
2 |
|
|
23 |
375-0795
|
Right hand skirt retainer (Tennant Industrial) |
1 |
|
|
24 |
375-0796
|
Left hand skirt retainer (Tennant Industrial) |
1 |
|
|
25 |
375-0797
|
4 hole skirt (Tennant Industrial) |
2 |
|
|
26 |
999-1288
|
Washer 1/4 x 1 OD fender stainless steel |
4 |
|
|
