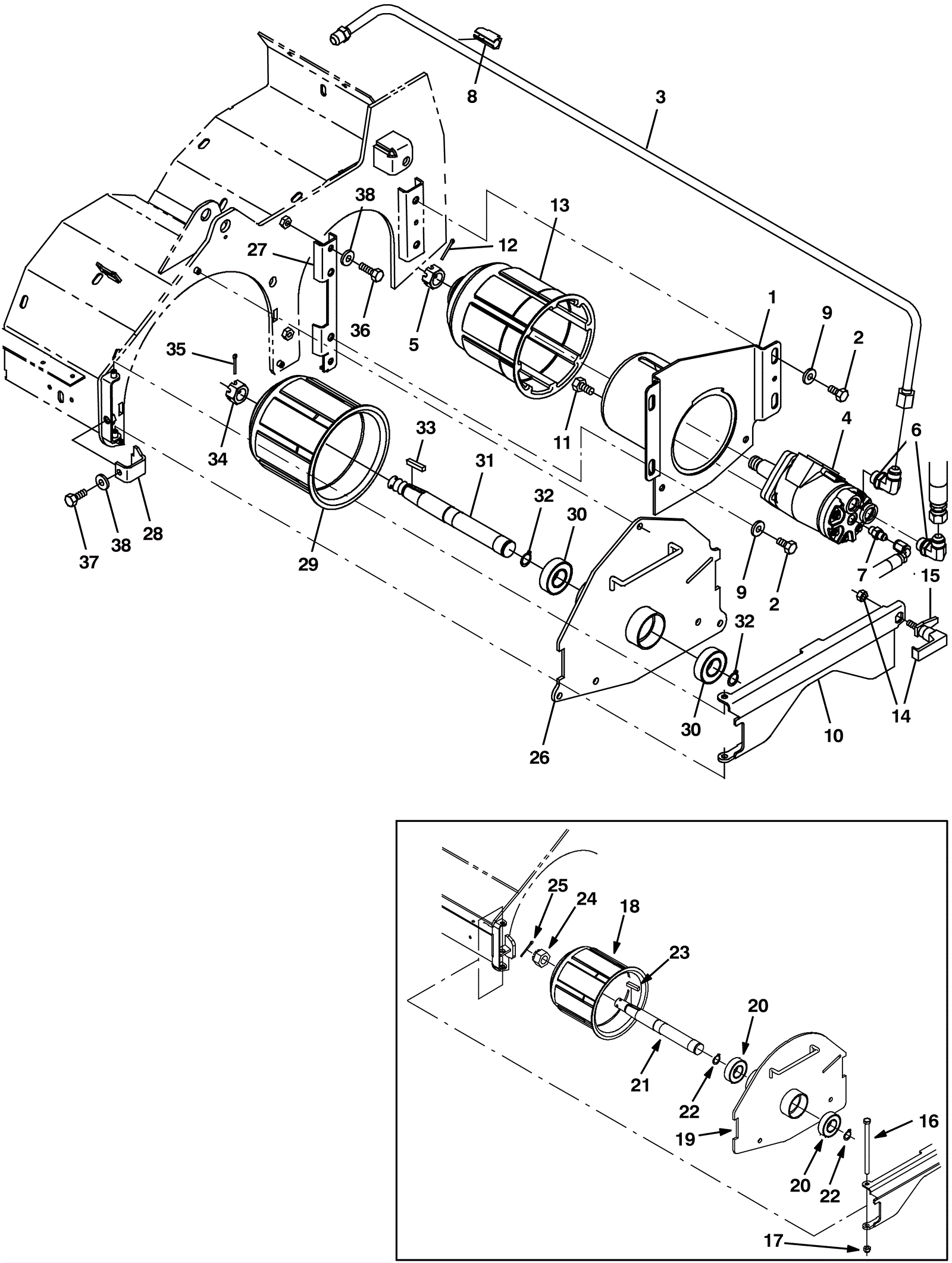

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
275-9425
|
HOUSING WLDT, BRUSH, DRIVE (Tennant Industrial) |
1 |
|
|
2 |
999-0784
|
Screw M8-1.25 x 16mm hex head stainless steel |
4 |
|
|
3 |
375-0772
|
Hydraulic tube (Tennant Industrial) |
1 |
|
|
4a |
N/A
|
Not available |
1 |
|
|
4b |
375-0773
|
Hydraulic gear motor (Tennant Industrial) |
1 |
(includes 5) |
|
5 |
275-4066
|
NUT, HEX, SLTD, .75-16 (Tennant Industrial) |
1 |
|
|
6 |
175-7165
|
FITTING, HYD, E90, JM08/OM08 (Tennant Industrial) |
2 |
|
|
7 |
175-8098
|
FITTING, HYD, STR, JM04/OM04 (Tennant Industrial) |
1 |
|
|
8 |
275-9429
|
CLAMP, HYD, 0.50D (Tennant Industrial) |
1 |
|
|
9 |
999-0024
|
Washer 5/16 flat stainless steel |
4 |
|
|
10 |
275-9430
|
Brush door weldment (Tennant Industrial) |
1 |
|
|
11 |
275-9428
|
SCREW, HEX, .38-16 X 0.75, NL (Tennant Industrial) |
4 |
|
|
12 |
175-4986
|
Cotter pin |
1 |
|
|
13a |
275-9432
|
PLUG WLDT, DRIVE, BRUSH (Tennant Industrial) |
1 |
|
|
13b |
375-0774
|
Brush drive plug weldment (Tennant Industrial) |
1 |
|
|
14 |
175-4985
|
Latch |
1 |
|
|
15 |
275-9433
|
PAWL, STR (Tennant Industrial) |
1 |
|
|
16 |
275-9434
|
SCREW, HEX, M8 X 1.25 X 130, 8.8 (Tennant Industrial) |
1 |
|
|
17a |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
11 |
|
|
17b |
275-9435
|
Replacement brush idler assembly (Tennant Industrial) |
1 |
(includes 18-25) |
|
18 |
275-5174
|
PLUG WLDT, DRIVE, BRUSH (Tennant Industrial) |
1 |
|
|
19 |
275-9436
|
DOOR WLDT, BRUSH, IDLER (Tennant Industrial) |
1 |
|
|
20 |
175-3293
|
Ball bearing |
2 |
|
|
21 |
275-9437
|
SHAFT, BRUSH, IDLER (Tennant Industrial) |
1 |
|
|
22 |
175-3294
|
Retaining ring |
2 |
|
|
23 |
275-0397
|
Square keyway |
1 |
|
|
24 |
275-9431
|
NUT, HEX, SLTD, M20 X 2.5, 8 (Tennant Industrial) |
1 |
|
|
25 |
175-4986
|
Cotter pin |
1 |
|
|
26 |
375-0775
|
Brush idler door weldment (Tennant Industrial) |
1 |
|
|
27 |
375-0776
|
Support bracket (Tennant Industrial) |
1 |
|
|
28 |
375-0777
|
Left hand retainer bracket (Tennant Industrial) |
1 |
|
|
29 |
275-5174
|
PLUG WLDT, DRIVE, BRUSH (Tennant Industrial) |
1 |
|
|
30 |
175-3293
|
Ball bearing |
2 |
|
|
31 |
275-9437
|
SHAFT, BRUSH, IDLER (Tennant Industrial) |
1 |
|
|
32 |
175-3294
|
Retaining ring |
2 |
|
|
33 |
275-0397
|
Square keyway |
1 |
|
|
34 |
275-9431
|
NUT, HEX, SLTD, M20 X 2.5, 8 (Tennant Industrial) |
1 |
|
|
35 |
175-4986
|
Cotter pin |
1 |
|
|
36 |
999-0501
|
Bolt M8-1.25 x 25mm hex head full thread stainless steel |
2 |
|
|
37 |
999-0499
|
Bolt M8-1.25 x 20mm hex head full thread stainless steel |
1 |
|
|
38 |
999-0024
|
Washer 5/16 flat stainless steel |
4 |
|
|
