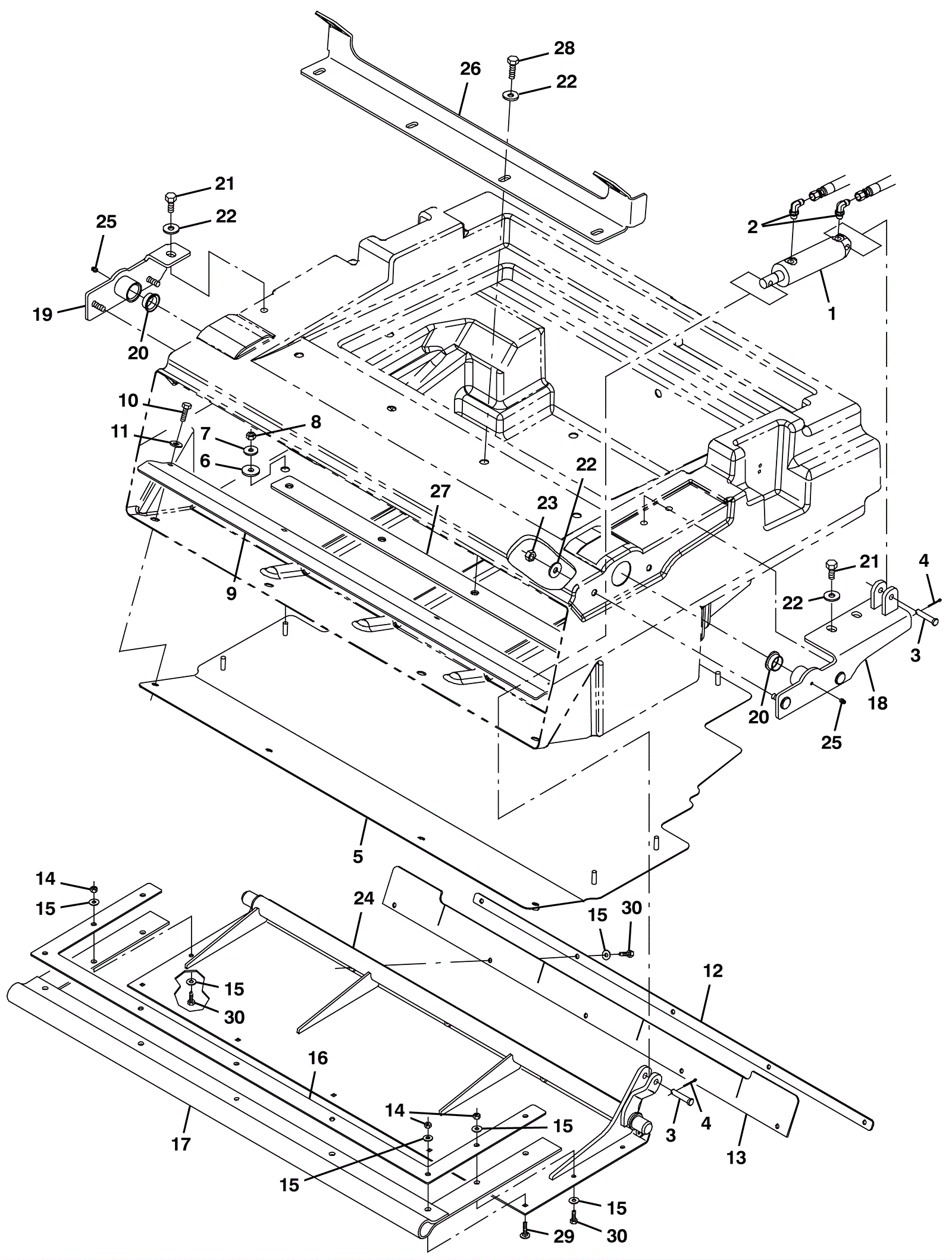

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
375-0759
|
Hydraulic cylinder (Tennant Industrial) |
1 |
|
|
2 |
175-6919
|
Elbow fitting |
2 |
|
|
3 |
175-2592
|
Clevis Pin 0.37 D X 1.75 L |
2 |
|
|
4 |
175-2588
|
Cotter pin |
2 |
|
|
5 |
375-0760
|
Bottom hopper plate (Tennant Industrial) |
1 |
|
|
6 |
175-2309
|
Washer |
4 |
|
|
7 |
175-7920
|
Washer M8 flat stainless steel |
4 |
|
|
8 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
4 |
|
|
9 |
375-0761
|
Lip bracket (Tennant Industrial) |
1 |
|
|
10 |
999-0501
|
Bolt M8-1.25 x 25mm hex head full thread stainless steel |
4 |
|
|
11 |
999-9097
|
Washer M8 flat stainless steel |
4 |
|
|
12 |
375-0762
|
Dump door strap (Tennant Industrial) |
1 |
|
|
13 |
375-0763
|
Dump door seal (Tennant Industrial) |
1 |
|
|
14 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
9 |
|
|
15 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
14 |
|
|
16 |
375-0764
|
Retainer plate (Tennant Industrial) |
1 |
|
|
17 |
375-0765
|
Dump door gasket (Tennant Industrial) |
1 |
|
|
18 |
375-0766
|
Left hand hopper door bracket weldment (Tennant Industrial) |
1 |
|
|
19 |
375-0767
|
Right hand bracket weldment (Tennant Industrial) |
1 |
|
|
20 |
275-3054
|
BUSHING, FLNG, 1.00B 1.13D 0.50L (Tennant Industrial) |
2 |
|
|
21 |
999-1170
|
Bolt M10-1.5 x 20mm hex head stainless steel |
3 |
|
|
22 |
275-1169
|
Washer .40 x 12mm flat |
11 |
|
|
23 |
999-1120
|
Nut M10-1.5 nylon insert lock stainless steel |
4 |
|
|
24 |
375-0768
|
Hopper door weldment (Tennant Industrial) |
1 |
|
|
25 |
175-3248
|
Grease fitting |
2 |
|
|
26 |
375-0769
|
Hopper cover bracket (Tennant Industrial) |
1 |
|
|
27 |
375-0770
|
Cover bracket (Tennant Industrial) |
1 |
|
|
28 |
999-0774
|
Bolt M10-1.5 x 30mm hex head stainless steel full thread |
4 |
|
|
29 |
375-0771
|
Bolt M6-1 x 30mm carriage (Tennant Industrial) |
5 |
|
|
30 |
999-1312
|
Screw M6-1 x 20mm hex head stainless steel |
9 |
|
|
