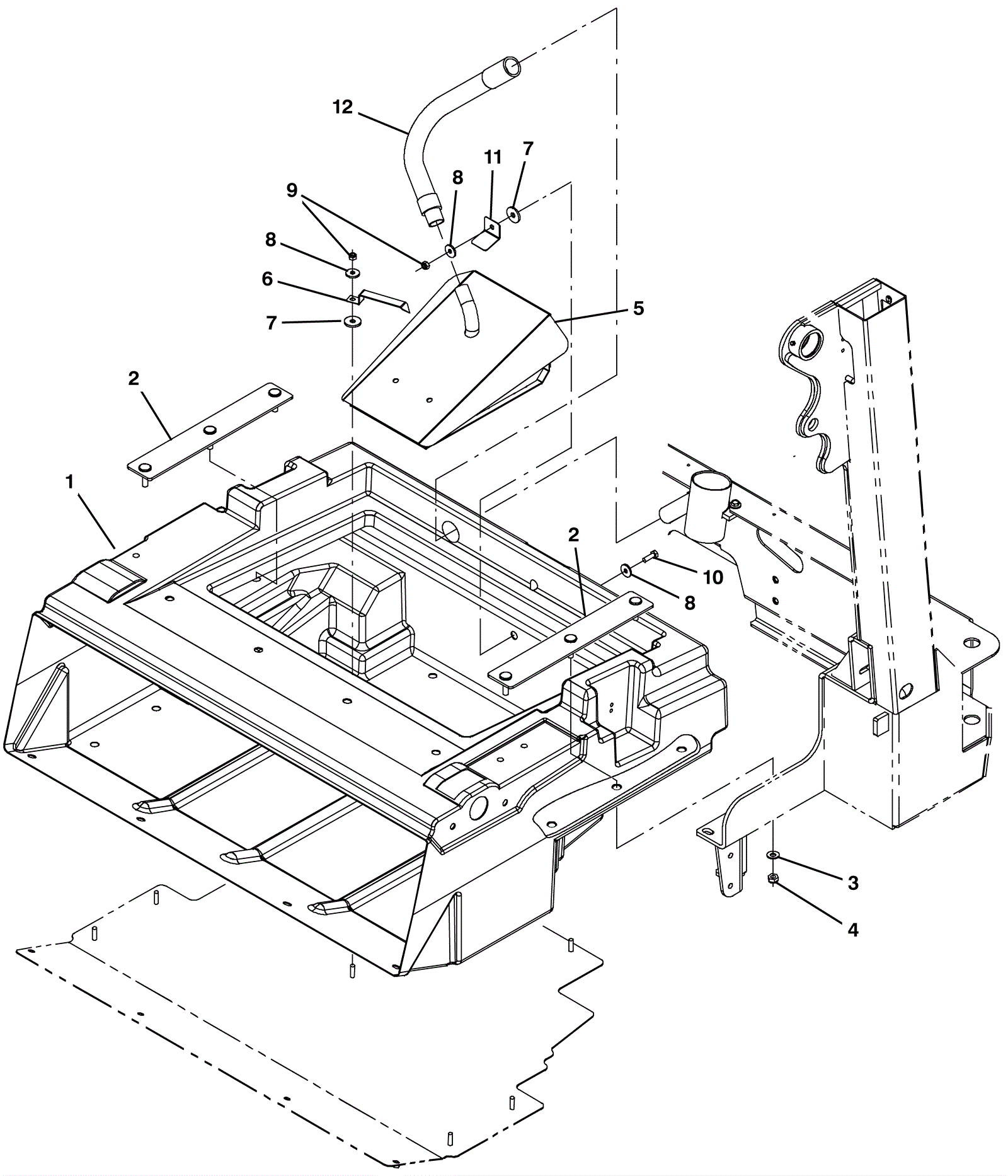

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
375-0733
|
Debris hopper (Tennant Industrial) |
1 |
|
|
2 |
375-0734
|
Hopper bar (Tennant Industrial) |
2 |
|
|
3 |
375-0735
|
Washer M10 flat Belleville (Tennant Industrial) |
6 |
|
|
4 |
999-1120
|
Nut M10-1.5 nylon insert lock stainless steel |
6 |
|
|
5 |
375-0736
|
Hopper screen weldment (Tennant Industrial) |
1 |
|
|
6 |
375-0737
|
Flat retainer spring (Tennant Industrial) |
1 |
|
|
7 |
175-2309
|
Washer |
2 |
|
|
8 |
175-7920
|
Washer M8 flat stainless steel |
3 |
|
|
9 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
2 |
|
|
10 |
999-0501
|
Bolt M8-1.25 x 25mm hex head full thread stainless steel |
1 |
|
|
11 |
375-0738
|
Retainer angle (Tennant Industrial) |
1 |
|
|
12 |
275-7303
|
Hose assembly (Tennant Industrial) |
1 |
|
|
