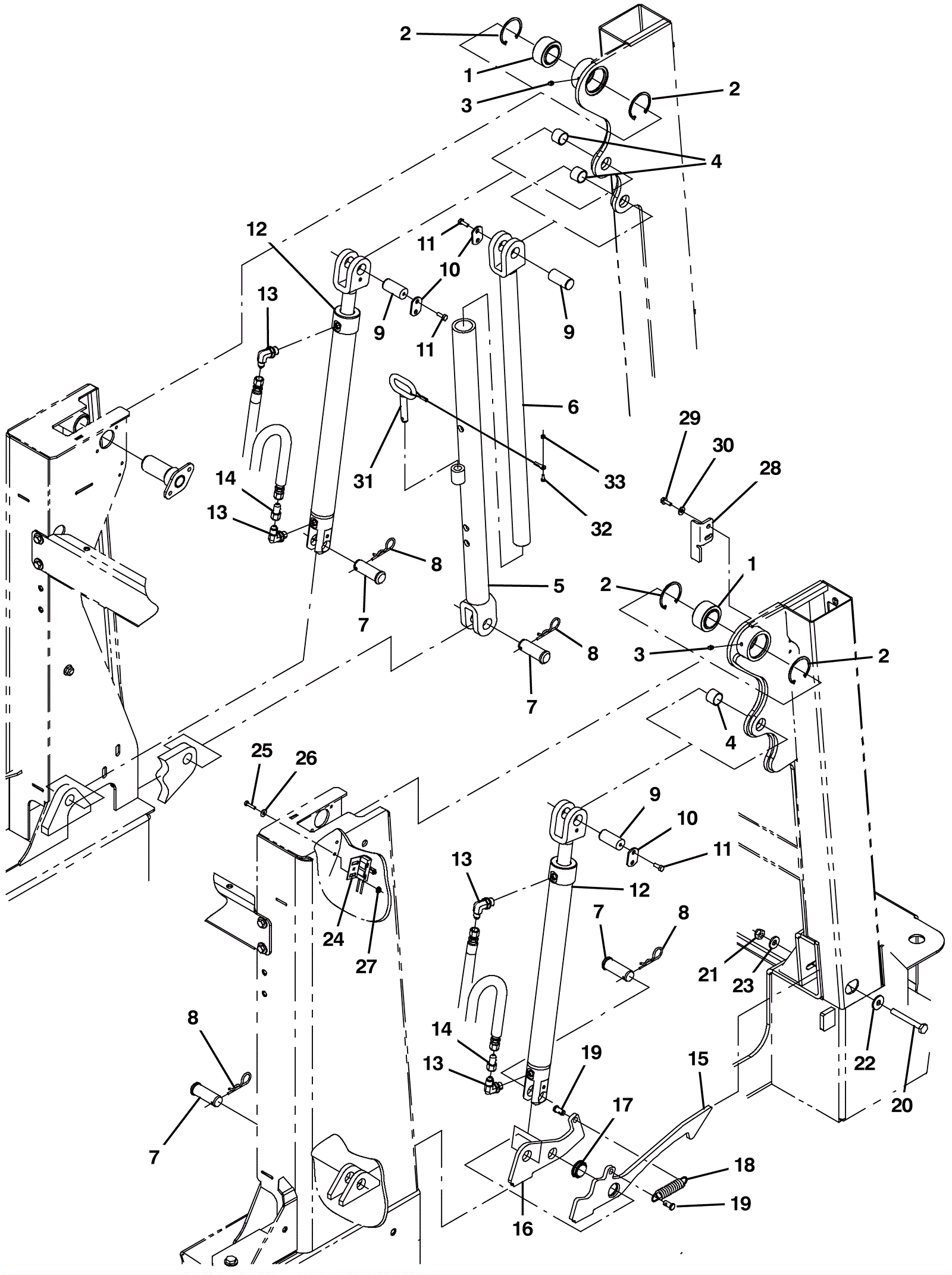

Hopper Lift Arms Assembly

#PartDescription ReqNotesAvailability
1 275-2505 Self align bearing (Tennant Industrial) 2
2 275-8454 RING, RETAINING, INT, 2.00D (Tennant Industrial) 4
3 175-3248 Grease fitting 2
4 275-8465 BUSHING, SLEEVE, 0.88B 1.00D 0.75L, BNZ (Tennant Industrial 3
5 375-0721 Safety arm tube weldment (Tennant Industrial) 1
6 375-0722 Safety arm rod weldment (Tennant Industrial) 1
7 375-0723 Clevis pin (Tennant Industrial) 4
8 175-2106 Cotter hair pin 4
9 375-0724 Pin (Tennant Industrial) 3
10 275-8468 PLATE, PIN, CLEVIS, UPPER (Tennant Industrial) 3
11 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 6
12 375-0725 Cylinder (Tennant Industrial) 2
13 175-6919 Elbow fitting 4
14 375-0726 Fitting (Tennant Industrial) 2
15 375-0727 Bellcrank lock plate (Tennant Industrial) 1
16 375-0728 Bellcrank plate (Tennant Industrial) 1
17 375-0729 Flanged bushing (Tennant Industrial) 1
18 175-0770 Extension spring 1
19 275-0146 PIN, CLEVIS, 0.37D X 0.75L (Tennant Industrial) 2
20 275-8451 SCREW, HEX, M10 X 1.50 X 80, 8.8 (Tennant Industrial) 1
21 999-1120 Nut M10-1.5 nylon insert lock stainless steel 1
22 275-1169 Washer .40 x 12mm flat 1
23 175-2305 Washer 1
24 375-0730 Snap switch (Tennant Industrial) 1
25 275-0923 Screw M5 - 7/8 hex lock 2
26 999-0006 Washer 3/16 flat zinc plated 2
27 275-8551 Nut M5-.8 x 16mm hex flange (Tennant Industrial) 2
28 375-0731 Switch bracket (Tennant Industrial) 1
29 175-3166 Bolt M6-1 x 16mm hex head 2
30 999-0016 Washer 1/4 flat plain finish 2
31 375-0732 Safety arm pin (Tennant Industrial) 1
32 999-0521 Screw M4-.7 x 12mm pan head phillips zinc 1
33 999-0954 Nut M4-.7 nylon insert lock stainless steel 1
