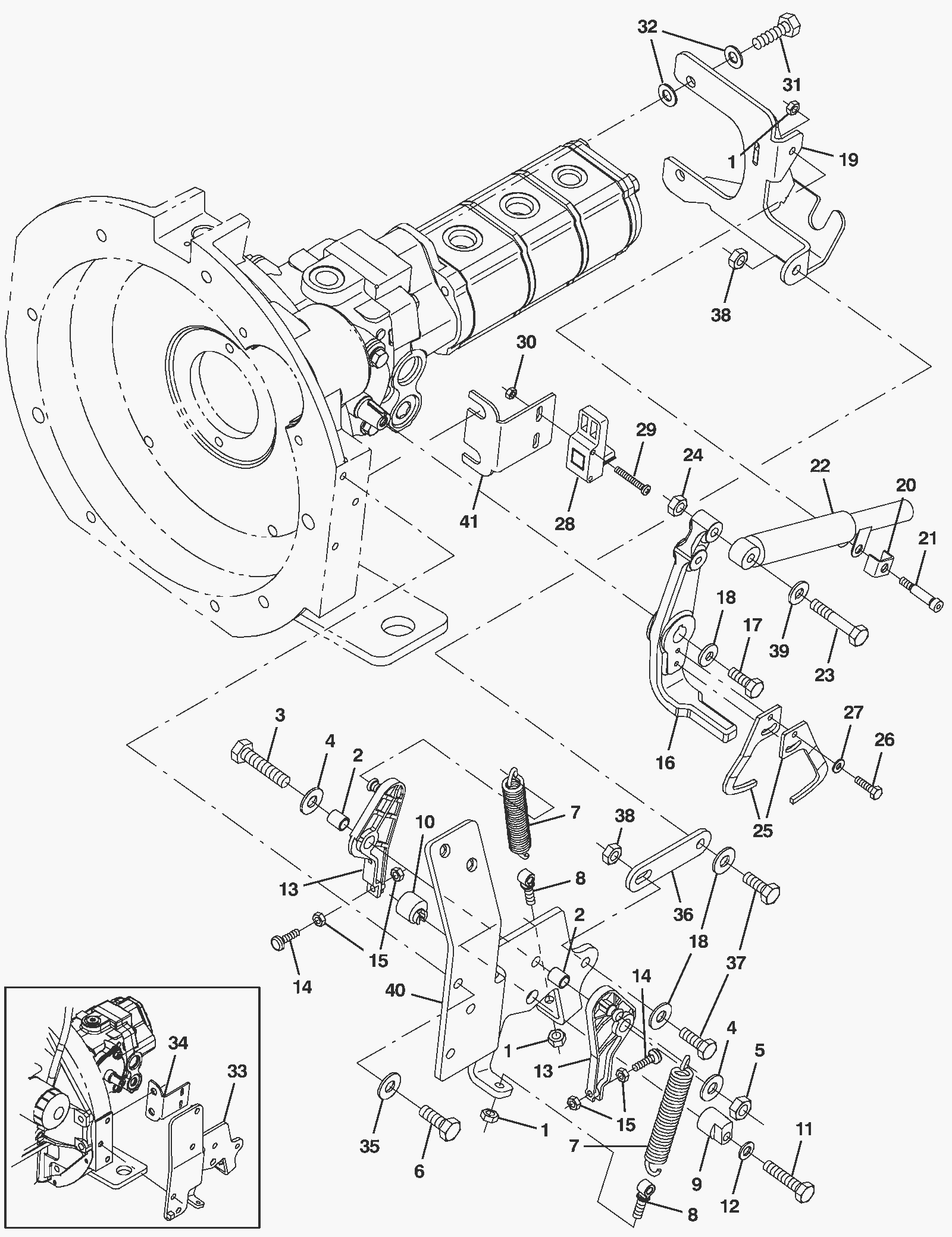

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-0152
|
Nut 1/4-20 nylon insert lock zinc plated |
3 |
|
|
2 |
375-0706
|
Stainless steel tube (Tennant Industrial) |
2 |
|
|
3 |
999-0550
|
Bolt 3/8-16 x 2 hex head stainless steel |
1 |
|
|
4 |
999-0032
|
Washer 3/8 USS flat plain finish |
2 |
|
|
5 |
999-0324
|
Nut 3/8-16 nylon insert lock jam zinc plated |
1 |
|
|
6 |
999-0038
|
Bolt 3/8-16 x 1 hex head grade 5 zinc plated |
2 |
|
|
7 |
275-3012
|
SPRING, EXTN, 0.75OD 0.12WIR 04.3L (Tennant Industrial) |
2 |
|
|
8 |
N/A
|
Not available |
1 |
|
|
9 |
375-0707
|
Centering pintle cam (Tennant Industrial) |
1 |
|
|
10 |
375-0708
|
Centering pintle cam (Tennant Industrial) |
1 |
|
|
11 |
999-0787
|
Bolt M8-1.25 x 40mm hex head full thread stainless steel |
1 |
|
|
12 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
1 |
|
|
13 |
375-0709
|
Centering pintle control arm (Tennant Industrial) |
2 |
|
|
14 |
375-0710
|
Rubber bumper (Tennant Industrial) |
2 |
|
|
15 |
275-3158
|
NUT, HEX, STD, M5 X 0.80, 8 (Tennant Industrial) |
4 |
|
|
16 |
375-0711
|
Pintle arm (Tennant Industrial) |
1 |
|
|
17 |
375-0712
|
Screw 5/16-24 x 3/4 hex head (Tennant Industrial) |
1 |
|
|
18 |
999-1407
|
Washer 5/16 belleville |
3 |
|
|
19 |
375-0713
|
Propel pintle bracket weldment (Tennant Industrial) |
1 |
|
|
20 |
275-3114
|
BRACKET, RETAINER, SAFETY (Tennant Industrial) |
1 |
|
|
21 |
175-3285
|
Bolt 1/4-20 x 5/16-1 shoulder |
1 |
|
|
22 |
275-3117
|
SHOCK ABSORBER, 2.3 STRK (Tennant Industrial) |
1 |
|
|
23 |
999-0309
|
Bolt M8-1.25 x 50mm hex head part thread zinc |
1 |
|
|
24 |
999-0471
|
Nut M8-1.25 nylon insert lock zinc plated |
1 |
|
|
25 |
375-0714
|
Positioning arm (Tennant Industrial) |
2 |
|
|
26 |
275-0923
|
Screw M5 - 7/8 hex lock |
2 |
|
|
27 |
999-0998
|
Washer #10 flat stainless steel |
2 |
|
|
28 |
375-0715
|
Sensor (Tennant Industrial) |
1 |
|
|
29 |
175-2079
|
Screw M4-.07 x 35mm pan head stainless steel |
2 |
|
|
30 |
999-0954
|
Nut M4-.7 nylon insert lock stainless steel |
2 |
|
|
31 |
275-3111
|
SCREW, HEX, .38-16 X 1.25, NL (Tennant Industrial) |
2 |
|
|
32 |
999-0120
|
Washer 3/8 SAE flat |
4 |
|
|
33 |
375-0716
|
Gas/LPG propel bracket (Tennant Industrial) |
1 |
|
|
34 |
375-0717
|
Bracket (Tennant Industrial) |
1 |
|
|
35 |
175-2305
|
Washer |
2 |
|
|
36 |
375-0718
|
Support strap (Tennant Industrial) |
1 |
|
|
37 |
999-0501
|
Bolt M8-1.25 x 25mm hex head full thread stainless steel |
2 |
|
|
38 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
2 |
|
|
39 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
1 |
|
|
40 |
375-0719
|
Propel bracket (Tennant Industrial) |
1 |
|
|
41 |
375-0720
|
Angle (Tennant Industrial) |
1 |
|
|
