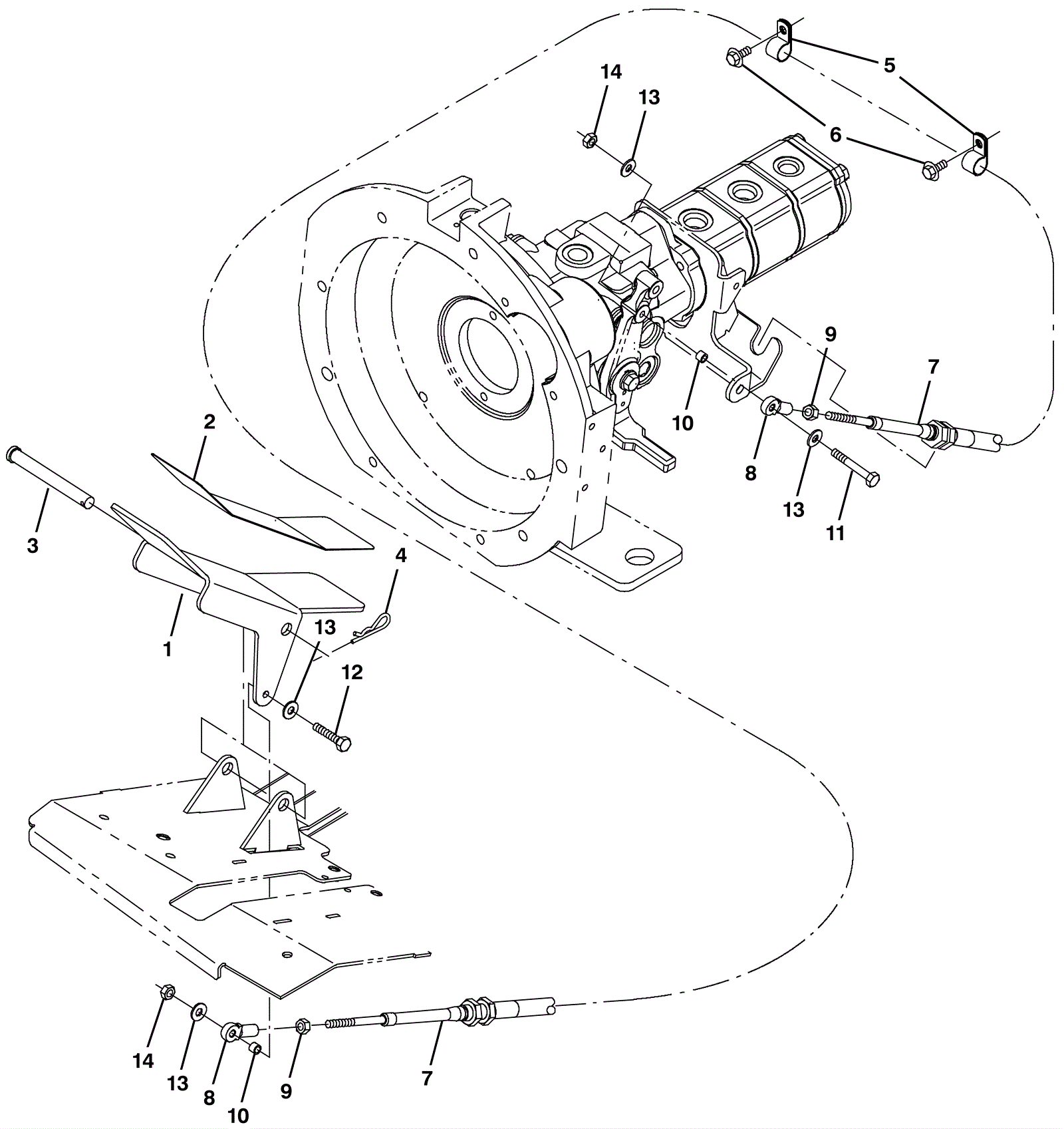

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
375-0704
|
Propel pedal (Tennant Industrial) |
1 |
|
|
2 |
275-0239
|
Non-skid tread 3w 11.6l |
1 |
|
|
3 |
175-5401
|
Clevis pin 1/2 x 4 1/2 |
1 |
|
|
4 |
175-3281
|
Cotter pin |
1 |
|
|
6 |
175-3166
|
Bolt M6-1 x 16mm hex head |
2 |
|
|
9 |
999-0651
|
Nut 1/4-28 hex stainless steel |
2 |
|
|
10 |
175-5327
|
Spacer |
2 |
|
|
11 |
999-1456
|
Bolt 1/4-20 x 2 1/4 hex head stainless steel |
1 |
|
|
12 |
999-0976
|
Bolt 1/4-20 x 1 3/4 hex cap stainless steel |
1 |
|
|
13 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
4 |
|
|
14 |
999-0152
|
Nut 1/4-20 nylon insert lock zinc plated |
2 |
|
|
