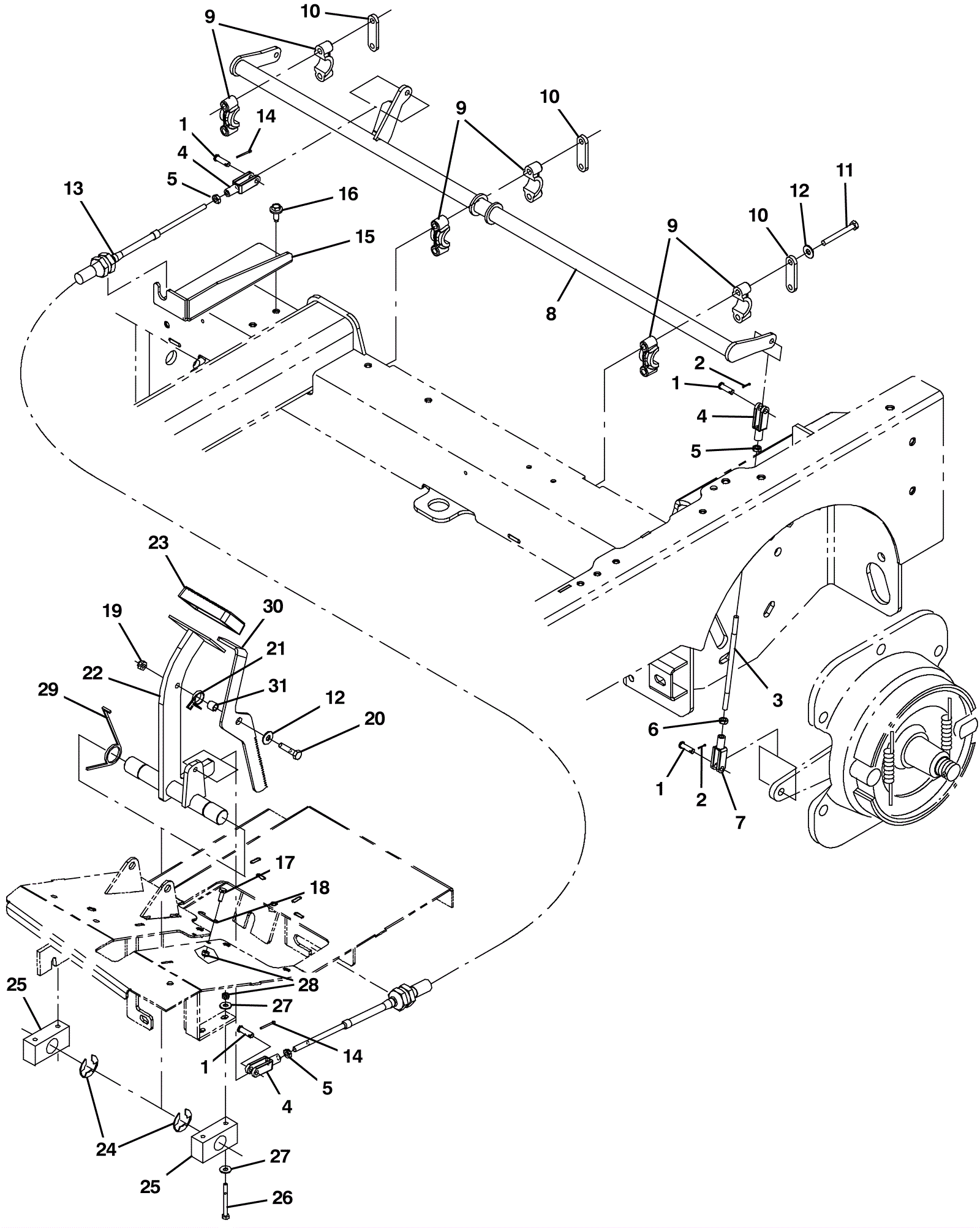

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
175-3351
|
Clevis pin |
6 |
|
|
2 |
175-3272
|
Cotter pin |
4 |
|
|
3 |
375-0694
|
Two end rod (Tennant Industrial) |
2 |
|
|
4 |
275-1663
|
CLEVIS, ADJ, 0.31PIN, 0.31-24 (Tennant Industrial) |
4 |
|
|
5 |
999-0763
|
Nut 5/16-24 hex jam plain finish |
4 |
|
|
6 |
375-0695
|
Left hand jam nut hex head |
2 |
|
|
7 |
375-0696
|
Left hand clevis pin (Tennant Industrial) |
2 |
|
|
8 |
375-0697
|
Brake shaft weldment (Tennant Industrial) |
1 |
|
|
9 |
175-6807
|
BEARING, SPLIT, 1.00B (Tennant Industrial) |
6 |
|
|
10 |
175-6806
|
PLATE, SPPT (Tennant Industrial) |
3 |
|
|
11 |
175-7120
|
Screw M8 x 1.25 x 50mm hex |
6 |
|
|
12 |
999-0024
|
Washer 5/16 flat stainless steel |
7 |
|
|
13 |
375-0698
|
Push/pull cable (Tennant Industrial) |
1 |
|
|
14 |
175-2588
|
Cotter pin |
2 |
|
|
15 |
375-0699
|
Cable bracket (Tennant Industrial) |
1 |
|
|
16 |
275-9575
|
SCREW, HEX, M8 X 1.25 X 25, 9.8, SEMS (Tennant Industrial) |
2 |
|
|
17 |
999-0507
|
Bolt M6-1 x 16mm hex head full thread plain finish |
2 |
|
|
18 |
375-0700
|
Parking brake spring (Tennant Industrial) |
1 |
|
|
19 |
999-0471
|
Nut M8-1.25 nylon insert lock zinc plated |
1 |
|
|
20 |
175-0634
|
Bolt M8-1 1/4 x 35mm hex head |
1 |
|
|
21 |
175-0633
|
Spring |
1 |
|
|
22 |
375-0701
|
Brake pedal shaft weldment (Tennant Industrial) |
1 |
|
|
23 |
175-3279
|
Pedal pad |
1 |
|
|
24 |
375-0702
|
Retainging ring (Tennant Industrial) |
2 |
|
|
25 |
275-2961
|
BEARING, PILLOWBLOCK, 1.02B [SOLID PYE] (Tennant Industrial |
2 |
|
|
26 |
999-1905
|
Screw M6-1 x 60mm hex head zinc plated |
4 |
|
|
27 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
8 |
|
|
28 |
999-0469
|
Nut M6-1 nylon insert lock zinc plated |
6 |
|
|
29 |
175-9984
|
Torsion spring |
2 |
|
|
30 |
375-0703
|
Brake lock pedal (Tennant Industrial) |
1 |
|
|
31 |
175-0632
|
Sleeve bushing |
1 |
|
|
