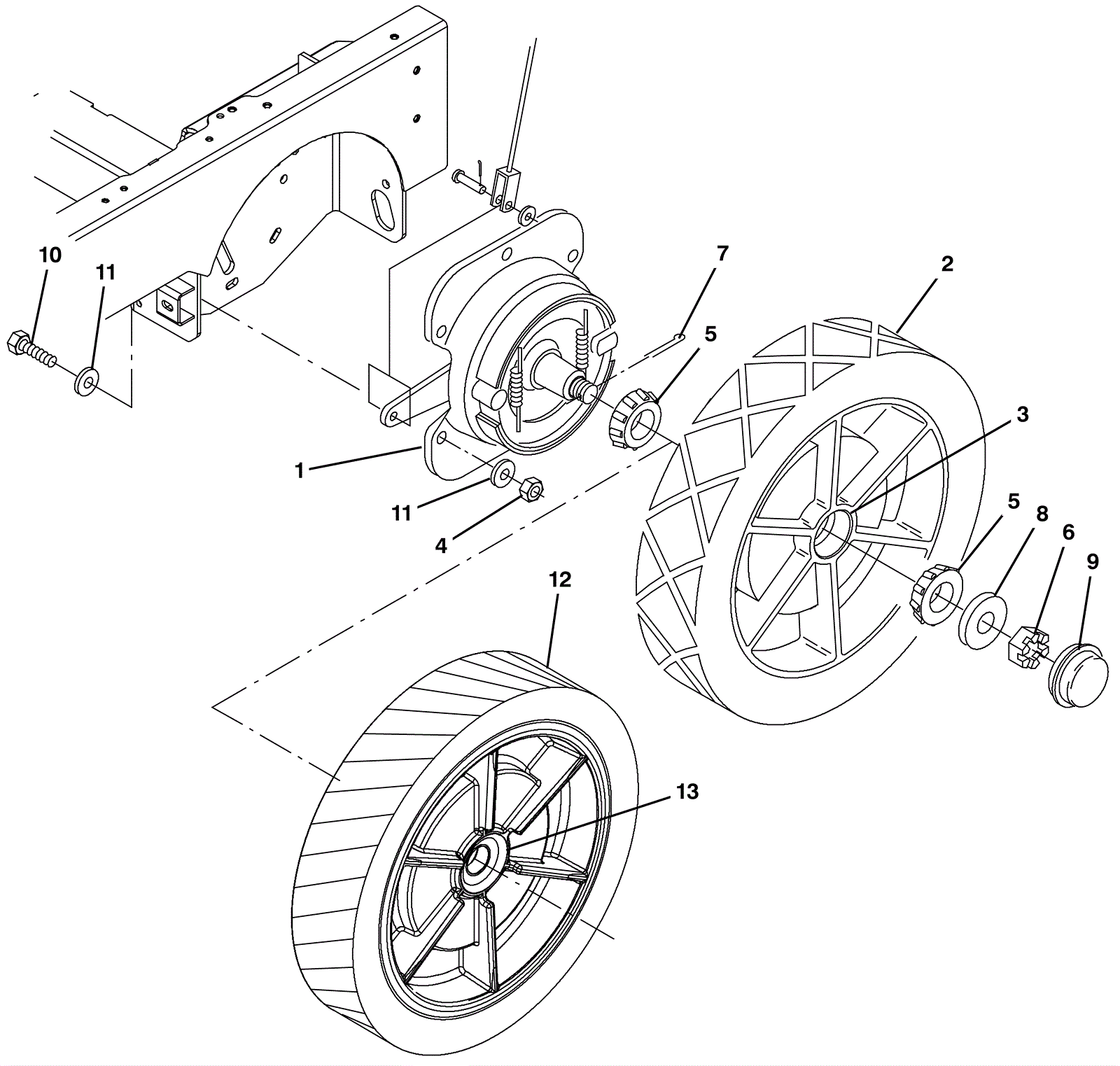

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
175-0642
|
BRAKE ASSY, DRUM, MECH, 07.9D [6600]] (Tennant Industrial) |
2 |
(includes 1b-1e) |
|
1b |
175-0643
|
SHOE SET, BRAKE [1PICK=1PKG] (Tennant Industrial) |
2 |
|
|
1c |
175-0644
|
VR, BRAKE KIT, REPAIR (Tennant Industrial) |
1 |
(includes 1d) |
|
1d |
175-0645
|
SHAFT (Tennant Industrial) |
1 |
|
|
1e |
175-0646
|
SPRING (Tennant Industrial) |
2 |
|
|
2a |
675-7014
|
TIRE ASSY, SOLID, 18.0 X 5.0, BLK (Tennant Industrial) |
2 |
(option) (includes item 3) |
|
2b |
275-7334
|
TIRE ASSY, SOLID, 18.0 X 5.0,HI TRACTION (Tennant Industrial |
2 |
(includes item 3) |
|
2c |
375-0691
|
Non-marking tire assembly (Tennant Industrial) |
2 |
(option) (includes item 3) |
|
3 |
175-0636
|
BEARING, CUP, 2.56D 0.55W (Tennant Industrial) |
2 |
|
|
4 |
999-0519
|
Nut M12-1.75 nylon insert lock stainless steel |
12 |
|
|
5 |
175-0638
|
BEARING, CONE, 1.38B 0.71W (Tennant Industrial) |
4 |
|
|
6 |
175-0640
|
NUT, HEX, SLTD, 1.00-20 (Tennant Industrial) |
2 |
|
|
7 |
375-0692
|
Cotter pin (Tennant Industrial) |
2 |
|
|
8 |
175-0639
|
WASHER, FLAT, 1.00, SAE (Tennant Industrial) |
2 |
|
|
9 |
175-0641
|
CAP, HUB, DUST, 2.57D 0.77L (Tennant Industrial) |
2 |
|
|
10 |
175-0647
|
SCREW, HEX, M12 X 1.75 X 40, 8.8 (Tennant Industrial) |
12 |
|
|
11 |
999-0114
|
Washer 1/2 SAE flat |
24 |
|
|
12 |
375-0693
|
Tire assembly (Tennant Industrial) |
2 |
(includes item 3) |
|
