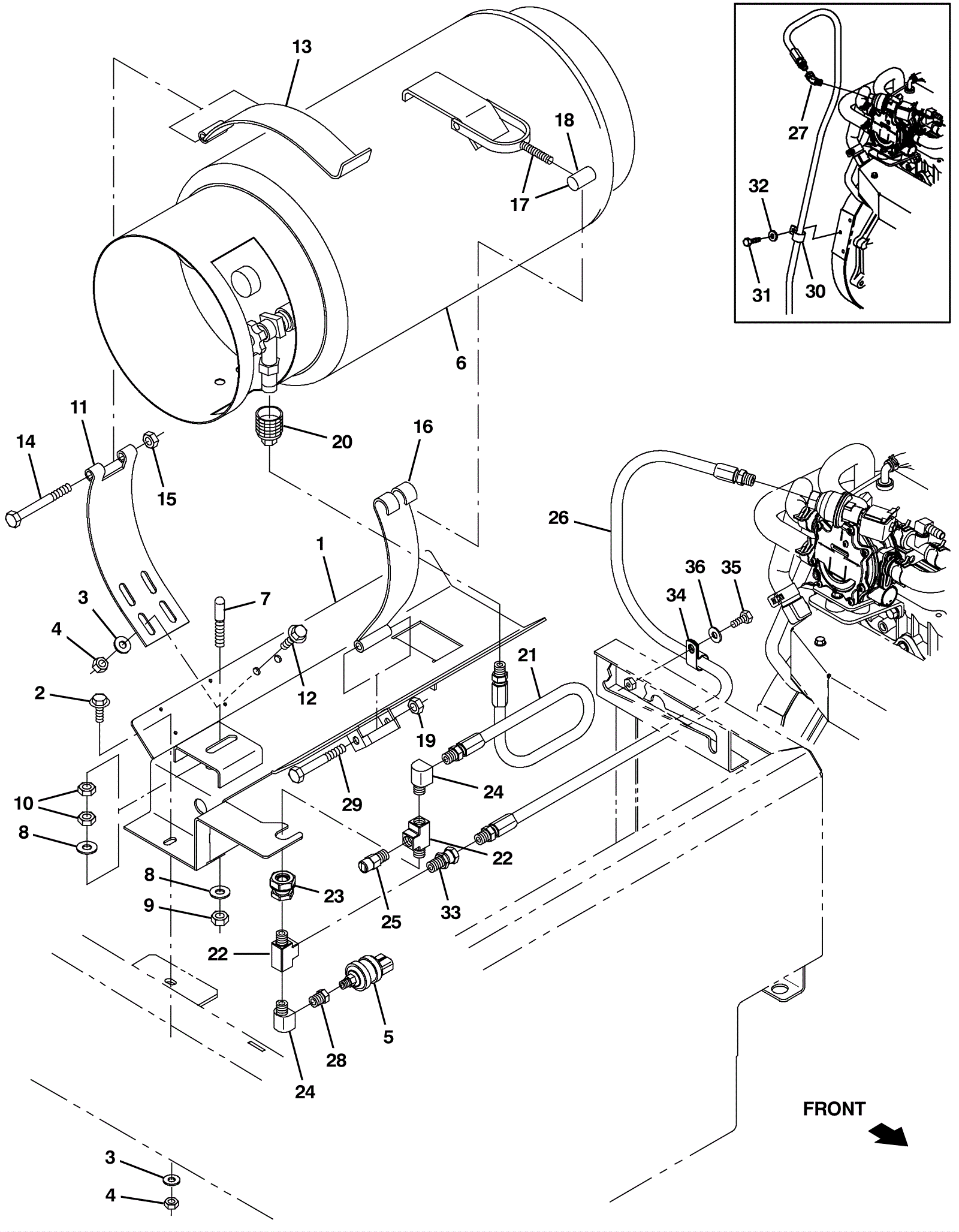

Engine Fuel Tank Assembly - LPG

#PartDescription ReqNotesAvailability
1 375-0647 LPG tray weldment (Tennant Industrial) 1
2 999-0785 Screw M8-1.25 x 30mm hex head stainless steel 2
3 999-0024 Washer 5/16 flat stainless steel 4
4 999-0471 Nut M8-1.25 nylon insert lock zinc plated 4
5 275-6654 Pressure switch (TENNANT INDUSTRIAL) 1
6 375-0648 LPG tank (Tennant Industrial) 1
7 375-0649 LPG locating pin (Tennant Industrial) 1
8 999-0032 Washer 3/8 USS flat plain finish 2
9 999-9133 Nut M10-1.5 nut hex head stainless steel 1
10 999-1625 Nut M10-1.5 hex jam stainless steel 2
11 375-0650 LPG tank strap (Tennant Industrial) 1
12 275-9575 SCREW, HEX, M8 X 1.25 X 25, 9.8, SEMS (Tennant Industrial) 2
13 375-0651 LPG tank strap (Tennant Industrial) 1
14 999-0796 Bolt 3/8-16 x 3 3/4 hex head stainless steel 1
15 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel 1
16 375-0652 LPG tank strap (Tennant Industrial) 1
17 154-0005 Propane tank strap 1 (includes 18)
18 275-0323 LPG tank mounting adjustment nut 1
19 999-0324 Nut 3/8-16 nylon insert lock jam zinc plated 1
20 275-0324 LPG female quick disconnect brass fitting 1
21 375-0653 LPG hose (Tennant Industrial) 1
22 175-6029 Straight tee 2
23 175-4814 Brass strainer fitting 1
24 175-2614 90 degree elbow fitting 2
25 275-0326 LPG pressure relief valve 1
26 375-0654 LPG hose (Tennant Industrial) 1
27 375-0655 Pipe fitting (Tennant Industrial) 1
28 275-0308 FITTING, HYD, STR, PF02/PM04 (Tennant Industrial) 1
29 999-9094 Screw 3/8-16 x 3 hex head stainless steel 1
30 175-2260 P clamp 1
31 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel 1
32 999-0024 Washer 5/16 flat stainless steel 1
33 275-0327 Straight pipe fitting 1
34 175-3168 P clamp 1
35 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 1
36 999-0016 Washer 1/4 flat plain finish 1
