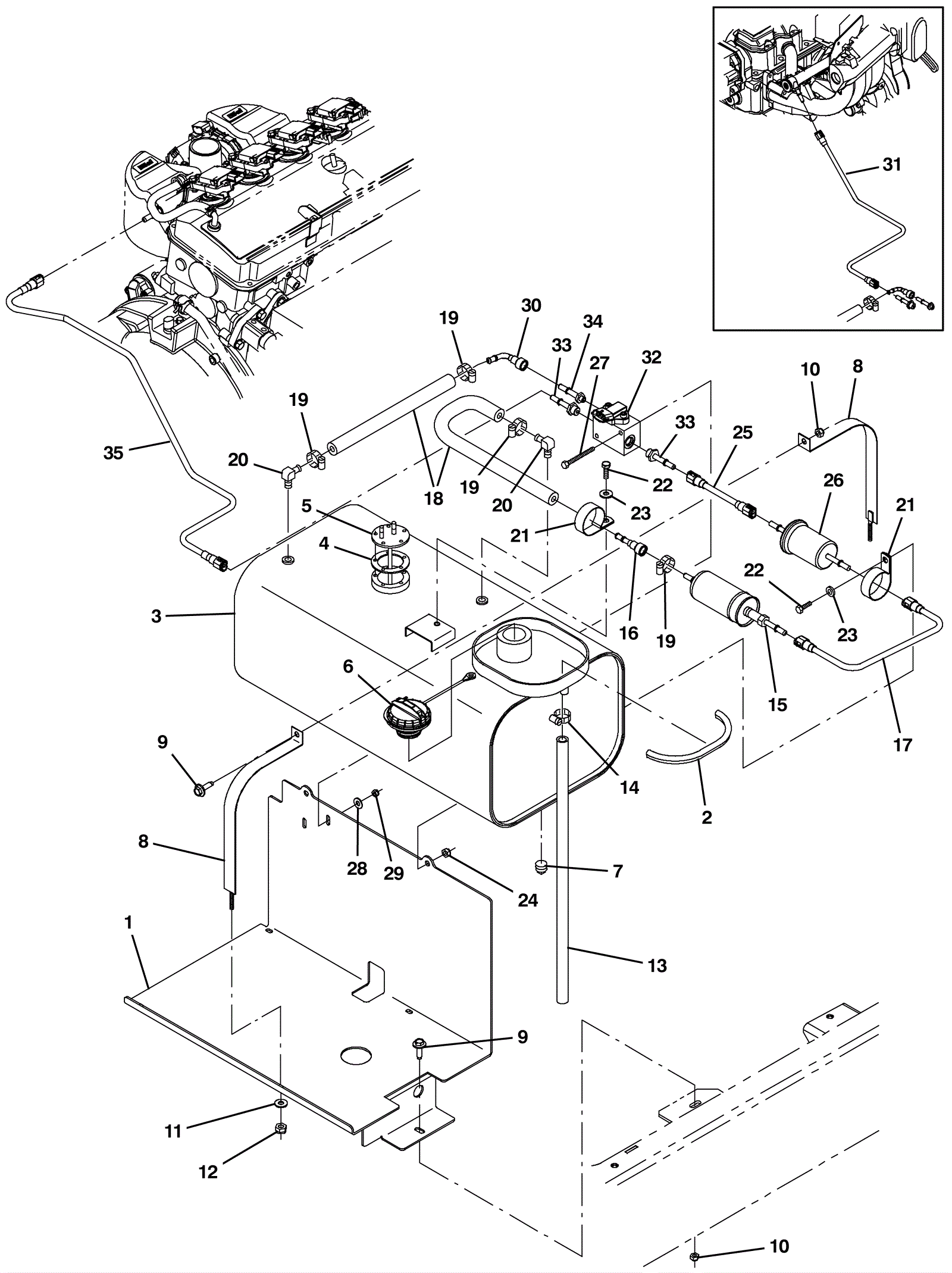

| # | Part | Description |
Req | Notes | Availability |
1 |
375-0627
|
Fuel tray weldment (Tennant Industrial) |
1 |
|
|
2 |
275-8075
|
Trim |
1 |
|
|
3 |
375-0629
|
Fuel tank (Tennant Industrial) |
1 |
(includes 4-7) |
|
4 |
275-0318
|
Fuel sender gasket (Tennant Industrial) |
1 |
|
|
5 |
375-0630
|
Fuel send-unit (Tennant Industrial) |
1 |
|
|
6 |
375-0631
|
Fuel tank cap (Tennant Industrial) |
1 |
|
|
7 |
375-0632
|
Plug fitting (Tennant Industrial) |
1 |
|
|
8 |
375-0633
|
Gas tank strap (Tennant Industrial) |
2 |
|
|
9 |
999-0785
|
Screw M8-1.25 x 30mm hex head stainless steel |
3 |
|
|
10 |
999-0471
|
Nut M8-1.25 nylon insert lock zinc plated |
3 |
|
|
11 |
999-0016
|
Washer 1/4 flat plain finish |
2 |
|
|
12 |
999-0152
|
Nut 1/4-20 nylon insert lock zinc plated |
2 |
|
|
13 |
375-0634
|
Fuel hose (Tennant Industrial) |
1 |
|
|
14 |
175-6081
|
Hose clamp |
1 |
|
|
15 |
375-0635
|
Fuel pump (Tennant Industrial) |
1 |
|
|
16 |
375-0636
|
Fuel connector (Tennant Industrial) |
1 |
|
|
17 |
375-0637
|
Fuel line (Tennant Industrial) |
1 |
|
|
18 |
375-0638
|
Fuel hose (Tennant Industrial) |
2 |
|
|
19 |
175-3594
|
Hose clamp |
4 |
|
|
20 |
375-0639
|
Brass fitting (Tennant Industrial) |
2 |
|
|
21 |
275-5543
|
Cable clamp (Tennant Industrial) |
2 |
|
|
22 |
999-1133
|
Bolt M8-1.25 x 20mm hex head full thread plain |
2 |
|
|
23 |
999-0024
|
Washer 5/16 flat stainless steel |
2 |
|
|
24 |
999-0471
|
Nut M8-1.25 nylon insert lock zinc plated |
1 |
|
|
25 |
375-0640
|
Fuel line (Tennant Industrial) |
1 |
|
|
26a |
275-6581
|
Fuel filter (TENNANT INDUSTRIAL) |
1 |
|
|
26b |
991-3065
|
Fuel filter |
1 |
(NON-OEM) |
|
27 |
275-0417
|
Screw M6-1 x 50 hex head |
2 |
|
|
28 |
999-0016
|
Washer 1/4 flat plain finish |
2 |
|
|
29 |
999-0469
|
Nut M6-1 nylon insert lock zinc plated |
2 |
|
|
30 |
375-0641
|
Fuel connector (Tennant Industrial) |
1 |
|
|
31 |
375-0642
|
Fuel line (Tennant Industrial) |
1 |
|
|
32 |
375-0643
|
Gas relief valve manifold (Tennant Industrial) |
1 |
|
|
33 |
375-0644
|
Fuel fitting (Tennant Industrial) |
2 |
|
|
34 |
375-0645
|
Fuel fitting (Tennant Industrial) |
1 |
|
|
35 |
375-0646
|
Fuel line (Tennant Industrial) |
1 |
|
|
