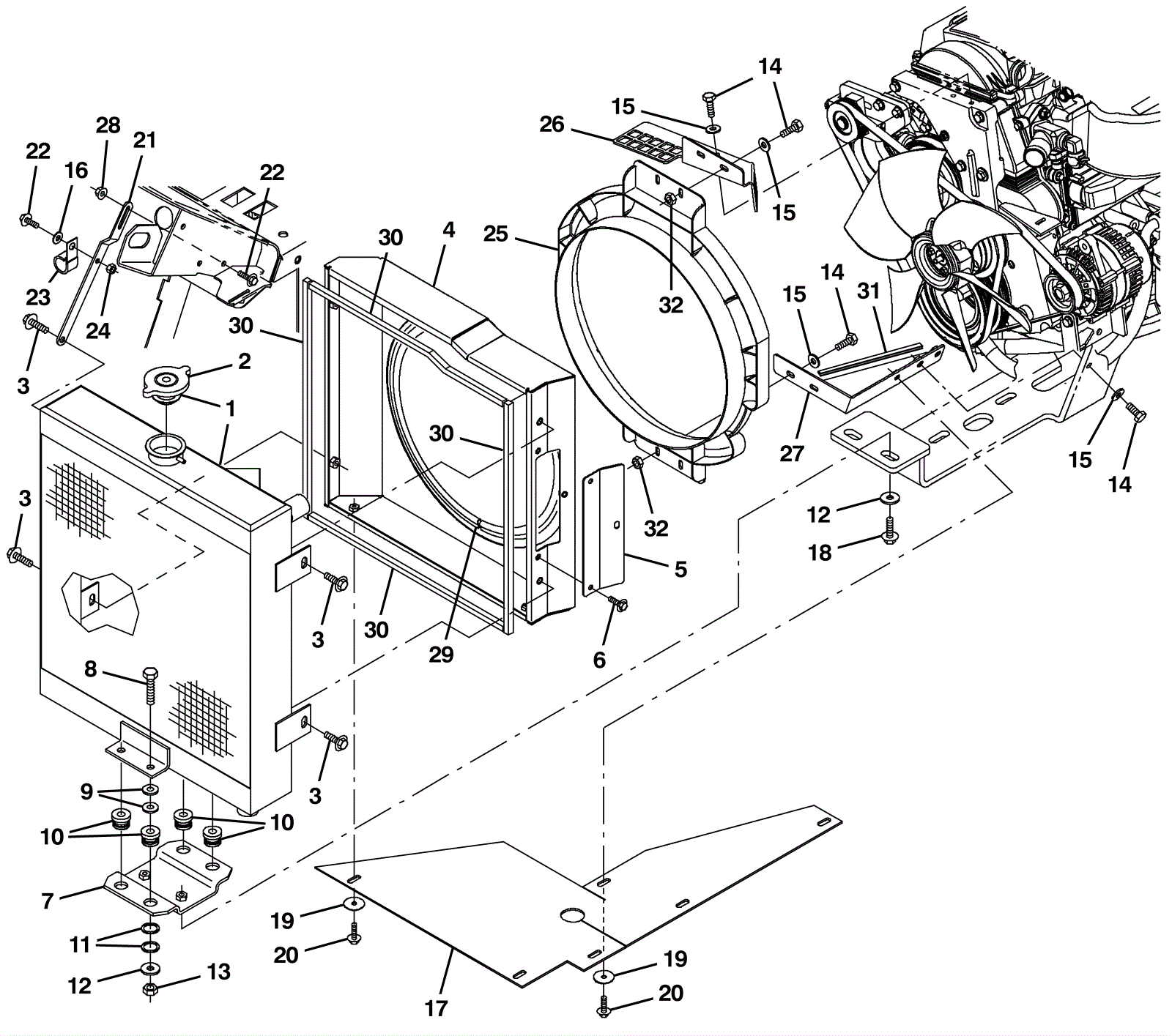

M30 Mitsubishi Engine Radiator and Mount Assembly

#PartDescriptionPriceReqNotesAvailability
1 375-0561 Radiator (Tennant Industrial) $2,498.15 1 (includes item 2) usually ships 1-5 days
2 275-6393 Radiator cap (Tennant Industrial) $18.20 1 usually ships 6-16 days
3 275-9575 SCREW, HEX, M8 X 1.25 X 25, 9.8, SEMS (Tennant Industrial) $4.04 4 ships same day
4 375-0614 Gas/LP replacement fan shroud weldment (Tennant Industrial) $141.78 1 usually ships 1-5 days
5 375-0615 Clean-out plate door (Tennant Industrial) $9.19 1 usually ships 1-5 days
6 999-0779 Screw M6-1 x 25mm hex head plain finish $0.99 3 ships same day
7 375-0564 Radiator bracket (Tennant Industrial) $38.74 1 usually ships 1-5 days
8 175-3259 Screw M10-1.5 x 45mm hex head $3.60 4 usually ships 1-5 days
9 999-0032 Washer 3/8 USS flat plain finish $0.99 8 ships same day
10 175-2429 Vibration isolator $3.62 4 ships same day
11 375-0546 Washer 13/16 x 1 1/16 x 1/16 flat steel (Tennant Industrial) $4.68 8 usually ships 1-5 days
12 275-1169 Washer .40 x 12mm flat $5.61 4 ships same day
13 999-9133 Nut M10-1.5 nut hex head stainless steel $1.25 4 usually ships 1-5 days
14 999-0581 Bolt M8-1.25 x 25mm hex head full thread zinc $0.90 8 ships same day
15 999-0024 Washer 5/16 flat stainless steel $1.34 11 ships same day
16 999-0123 Washer 1/4 SAE flat zinc plated $0.99 2 ships same day
17 375-0616 Gas/LP fan skirt (Tennant Industrial) $110.39 1 usually ships 1-5 days
18 999-0786 Screw M8-1.25 x 35mm hex head stainless steel $1.12 2 ships same day
19 999-1288 Washer 1/4 x 1 OD fender stainless steel $0.99 7 ships same day
20 999-0779 Screw M6-1 x 25mm hex head plain finish $0.99 7 ships same day
21 375-0617 Radiator bracket (Tennant Industrial) $26.89 1 usually ships 1-5 days
22 999-1312 Screw M6-1 x 20mm hex head stainless steel $0.99 2 ships same day
23 175-2108 P clamp $3.50 1 usually ships 1-5 days
24 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 1 ships same day
25 375-0618 Fan shroud (Tennant Industrial) $187.21 1 usually ships 1-5 days
26 375-0619 Upper gas/LPG support fan shroud bracket (Tennant Industrial $29.06 1 usually ships 1-5 days
27 375-0620 Lower gas/LPG support fan shroud bracket (Tennant Industrial $30.90 1 usually ships 1-5 days
28 999-6694 Nut M6-1 hex serrated flange stainless steel $0.99 1 ships same day
29 275-0294 SEAL, BULB, STR, 0.58D .06-.09GRIP 41.1L (Tennant Industria $77.15 1 usually ships 1-5 days
30 375-0621 Adhesive seal (Tennant Industrial) $9.02 4 usually ships 1-5 days
31 275-8203 Molding $40.20 1 usually ships 1-5 days
32 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 4 ships same day
