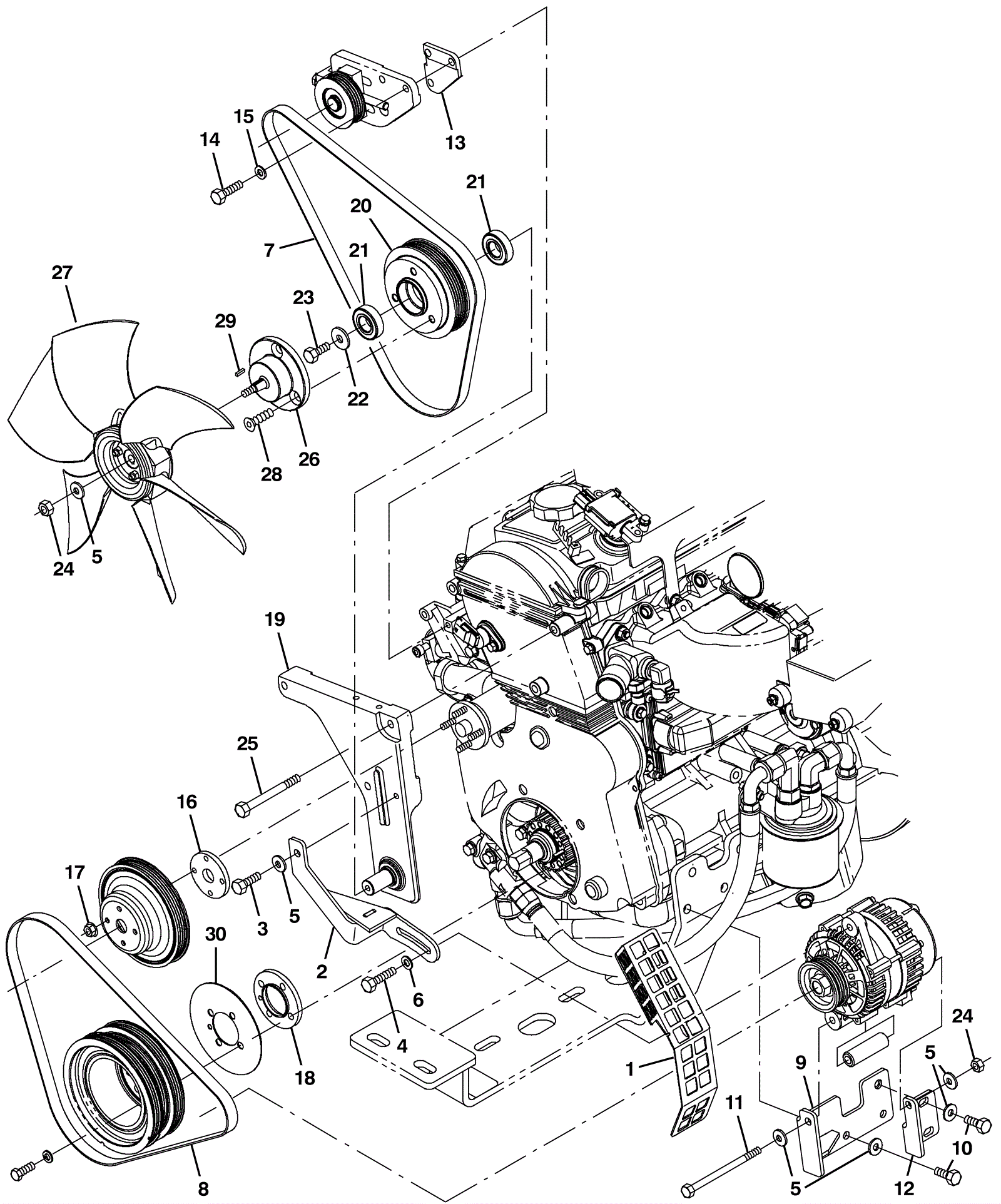

M30 Mitsubishi Engine Alternator and Fan Assembly

#PartDescriptionPriceReqNotesAvailability
1 375-0594 Fan side guard (Tennant Industrial) $32.73 1 usually ships 1-5 days
2 375-0595 Alternator arm weldment (Tennant Industrial) $43.25 1 usually ships 1-5 days
3 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain $0.99 1 ships same day
4 275-3036 SCREW, HEX, M8 X 1.25 X 40, 8.8, FL (Tennant Industrial) $6.01 1 usually ships 1-5 days
5 999-0024 Washer 5/16 flat stainless steel $1.34 7 ships same day
6 999-1407 Washer 5/16 belleville $3.04 1 ships same day
7 375-0596 Ribbed fan belt (Tennant Industrial) $79.33 1 usually ships 5-16 days
8 375-0597 Ribbed alternator belt (Tennant Industrial) $80.49 1 usually ships 5-16 days
9 375-0598 Alternator bracket weldment (Tennant Industrial) $42.92 1 usually ships 1-5 days
10 999-0581 Bolt M8-1.25 x 25mm hex head full thread zinc $0.99 3 ships same day
11 999-1384 Screw M8-1.25 x 120mm hex head full thread 8.8 grade $3.76 1 ships same day
12 375-0599 Alternator bracket (Tennant Industrial) $6.51 1 usually ships 1-5 days
13 375-0600 Spacer block (Tennant Industrial) $62.96 1 usually ships 1-5 days
14 999-0248 Bolt M8-1.25 x 30mm hex head full thread plain finish $0.99 2 ships same day
15 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 2 ships same day
16 375-0601 Water pump spacer (Tennant Industrial) $12.86 1 usually ships 1-5 days
17 999-6694 Nut M6-1 hex serrated flange stainless steel $0.99 4 ships same day
18 375-0602 Crankshaft spacer (Tennant Industrial) $136.27 1 usually ships 1-5 days
19 375-0603 Fan shaft plate weldment (Tennant Industrial) $348.53 1 (Shaft Extended) usually ships 1-5 days
20 375-0604 Machine sheave (Tennant Industrial) $129.09 1 usually ships 1-5 days
21 375-0533 Ball bearing (Tennant Industrial) $18.70 2 usually ships 5-16 days
22 175-7920 Washer M8 flat stainless steel $3.00 1 ships same day
23 999-0783 Screw M8-1.25 x 16mm hex head $0.99 1 ships same day
24 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 2 ships same day
25 275-0444 SCREW, HEX, M8 X 1.25 X 90, 8.8 (Tennant Industrial) $6.01 3 ships same day
26 375-0605 Fan taper spacer (Tennant Industrial) $82.16 1 usually ships 1-5 days
27 375-0606 Cooling fan (Tennant Industrial) $262.02 1 usually ships 1-5 days
28 375-0607 Screw 3/8-16 x 1 flat socket alloy (Tennant Industrial) $7.52 3 usually ships 1-5 days
29 175-9158 Square key 1/8 x 1/8 inch $3.00 1 usually ships 1-5 days
30 375-0608 Dust shield plate (Tennant Industrial) $23.38 1 usually ships 1-5 days
