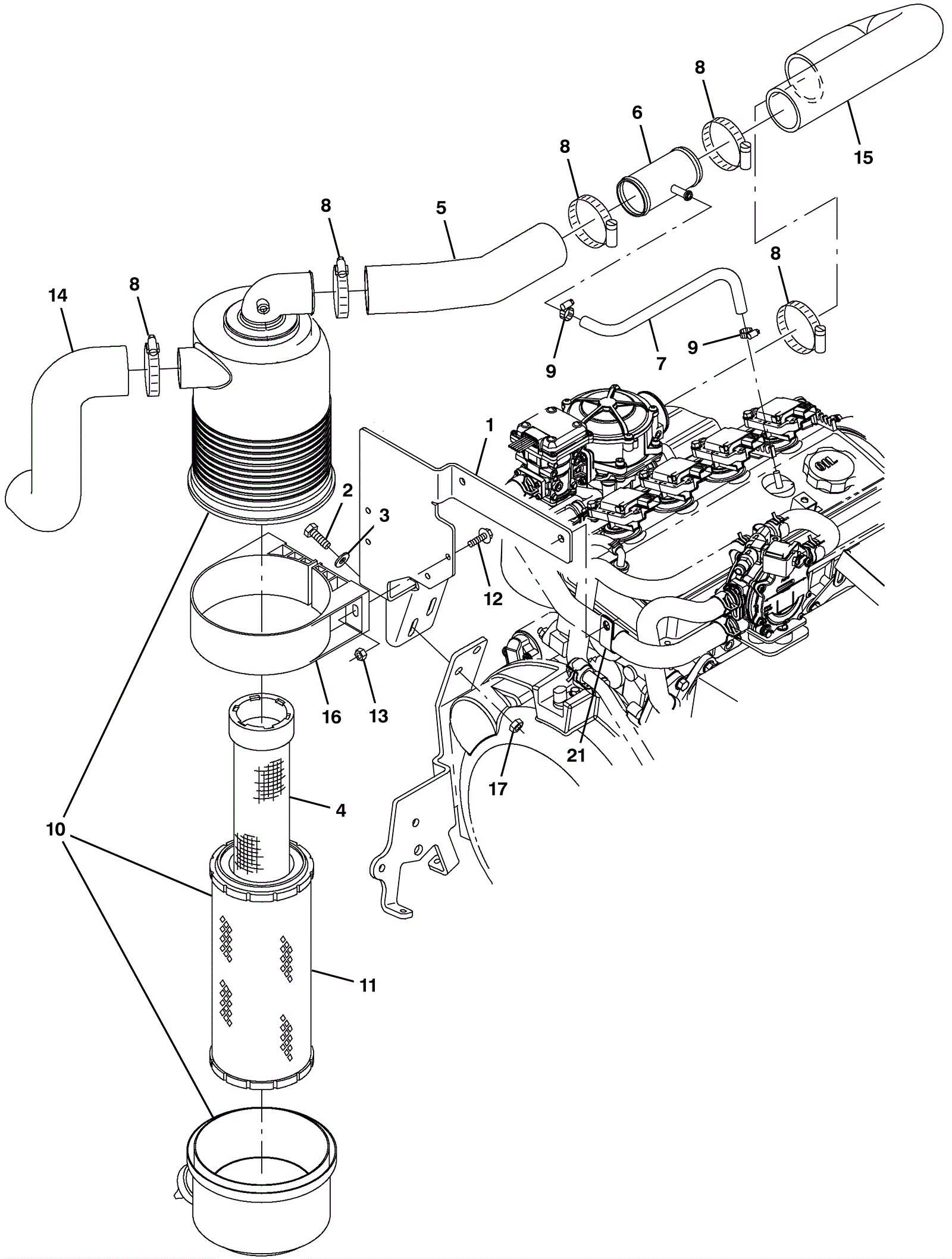

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
375-0588
|
Air filter bracket (Tennant Industrial) |
1 |
|
|
2 |
999-0581
|
Bolt M8-1.25 x 25mm hex head full thread zinc |
2 |
|
|
3 |
999-0024
|
Washer 5/16 flat stainless steel |
2 |
|
|
4a |
275-5791
|
VR, ELEMENT, FLTR, AIR, SAFETY (Tennant Industrial) |
1 |
|
|
4b |
991-3072
|
Air filter element |
1 |
(NON-OEM) |
|
5 |
375-0589
|
Mold intake hose (Tennant Industrial) |
1 |
|
|
6 |
375-0590
|
Tee tube weldment (Tennant Industrial) |
1 |
|
|
7 |
375-0591
|
Radiator overflow drain hose (Tennant Industrial) (OBSOLETE) |
1 |
|
|
8 |
997-2006
|
Hose clamp |
5 |
|
|
9 |
175-6081
|
Hose clamp |
2 |
|
|
10 |
275-6660
|
Air filter assembly (TENNANT INDUSTRIAL) |
1 |
(includes 11) |
|
11a |
275-5790
|
VR, ELEMENT, FLTR, AIR [DN] (Tennant Industrial) |
1 |
|
|
11b |
991-3072
|
Air filter element |
1 |
(NON-OEM) |
|
12 |
999-0779
|
Screw M6-1 x 25mm hex head plain finish |
2 |
|
|
13 |
999-0469
|
Nut M6-1 nylon insert lock zinc plated |
2 |
|
|
14 |
375-0526
|
Mold intake hose (Tennant Industrial) |
1 |
|
|
15 |
375-0593
|
LPG mold intake hose (Tennant Industrial) |
1 |
|
|
16 |
275-6661
|
Air filter mounting clamp (TENNANT INDUSTRIAL) |
1 |
|
|
17 |
999-0471
|
Nut M8-1.25 nylon insert lock zinc plated |
2 |
|
|
21 |
175-2260
|
P clamp |
1 |
|
|
