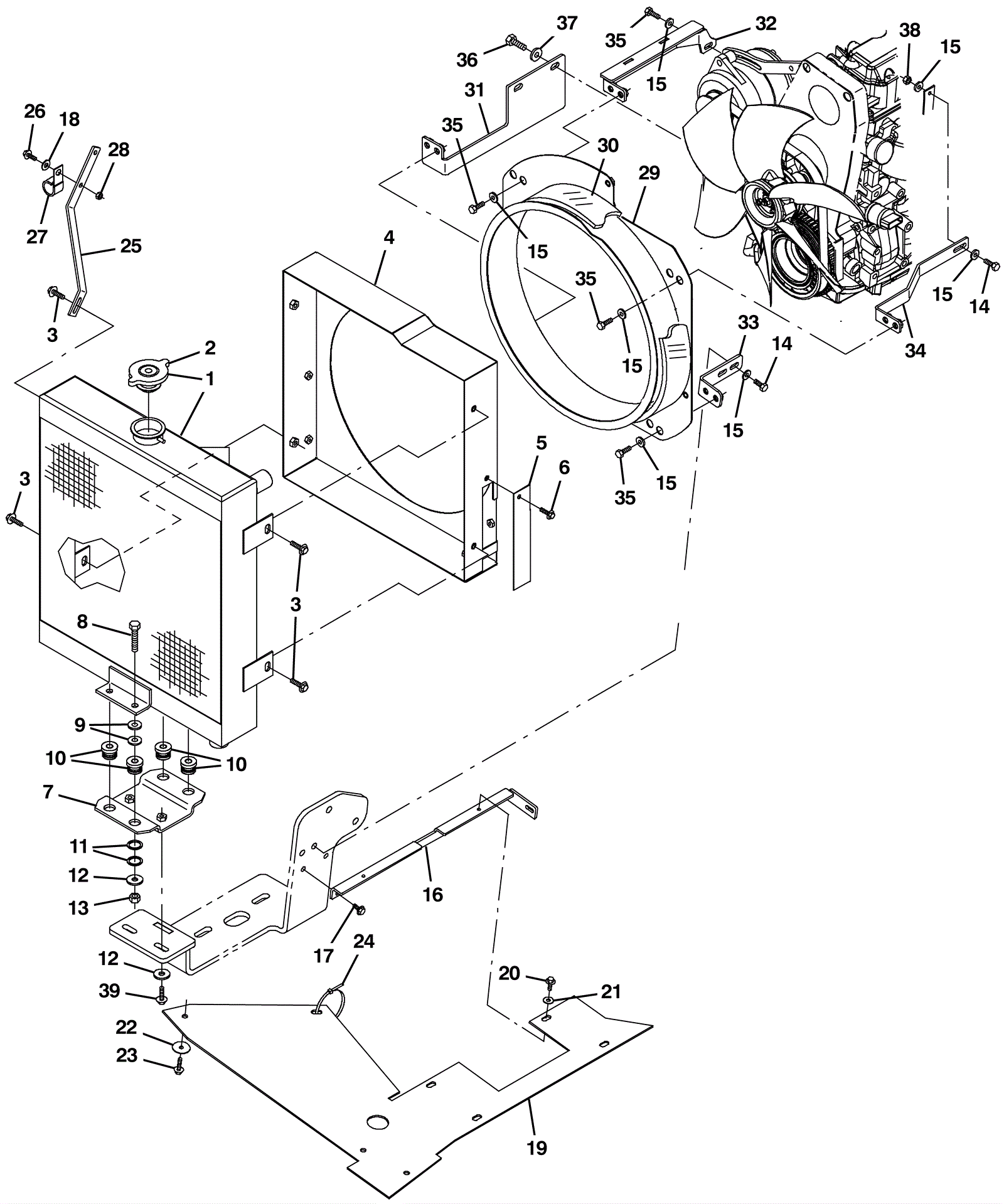

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
375-0561
|
Radiator (Tennant Industrial) |
1 |
(includes item 2) |
|
2 |
275-6393
|
Radiator cap (Tennant Industrial) |
1 |
|
|
3 |
275-9575
|
SCREW, HEX, M8 X 1.25 X 25, 9.8, SEMS (Tennant Industrial) |
4 |
|
|
4 |
375-0563
|
Gas/LP replacement fan shroud weldment (Tennant Industrial) |
1 |
|
|
5 |
375-0558
|
Cover bracket (Tennant Industrial) |
1 |
|
|
6 |
999-0779
|
Screw M6-1 x 25mm hex head plain finish |
2 |
|
|
7 |
375-0564
|
Radiator bracket (Tennant Industrial) |
1 |
|
|
8 |
175-3259
|
Screw M10-1.5 x 45mm hex head |
4 |
|
|
9 |
999-0032
|
Washer 3/8 USS flat plain finish |
8 |
|
|
10 |
175-2429
|
Vibration isolator |
4 |
|
|
11 |
375-0546
|
Washer 13/16 x 1 1/16 x 1/16 flat steel (Tennant Industrial) |
8 |
|
|
12 |
275-1169
|
Washer .40 x 12mm flat |
6 |
|
|
13 |
999-9133
|
Nut M10-1.5 nut hex head stainless steel |
4 |
|
|
14 |
999-0581
|
Bolt M8-1.25 x 25mm hex head full thread zinc |
3 |
|
|
15 |
999-0024
|
Washer 5/16 flat stainless steel |
12 |
|
|
16 |
375-0548
|
Rubber skirt bracket (Tennant Industrial) |
1 |
|
|
17 |
999-1312
|
Screw M6-1 x 20mm hex head stainless steel |
2 |
|
|
18 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
1 |
|
|
19 |
375-0565
|
Radiator debris skirt (Tennant Industrial) |
1 |
|
|
20 |
175-3166
|
Bolt M6-1 x 16mm hex head |
2 |
|
|
21 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
2 |
|
|
22 |
999-1288
|
Washer 1/4 x 1 OD fender stainless steel |
3 |
|
|
23 |
999-0779
|
Screw M6-1 x 25mm hex head plain finish |
3 |
|
|
24 |
175-2162
|
Nylon wire tie |
1 |
|
|
25 |
375-0566
|
Radiator bracket (Tennant Industrial) |
1 |
|
|
26 |
999-0507
|
Bolt M6-1 x 16mm hex head full thread plain finish |
2 |
|
|
27 |
175-2108
|
P clamp |
1 |
|
|
28 |
999-0469
|
Nut M6-1 nylon insert lock zinc plated |
1 |
|
|
29 |
375-0567
|
Fan shroud weldment (Tennant Industrial) |
1 |
|
|
30 |
375-0559
|
Accoustic insulation (Tennant Industrial) |
1 |
|
|
31 |
375-0552
|
Right hand fan bracket (Tennant Industrial) |
1 |
|
|
32 |
375-0553
|
Upper fan bracket weldment (Tennant Industrial) |
1 |
|
|
33 |
375-0550
|
Left hand fan bracket (Tennant Industrial) |
1 |
|
|
34 |
375-0551
|
Upper left hand fan bracket (Tennant Industrial) |
1 |
|
|
35 |
999-1133
|
Bolt M8-1.25 x 20mm hex head full thread plain |
9 |
|
|
36 |
275-0025
|
Screw M10-1.5 x 25 hex head 8.8 |
2 |
|
|
37 |
999-0032
|
Washer 3/8 USS flat plain finish |
2 |
|
|
38 |
275-4518
|
NUT, HEX, STOVER, M8 X 1.25 (Tennant Industrial) |
1 |
|
|
39 |
999-0786
|
Screw M8-1.25 x 35mm hex head stainless steel |
2 |
|
|
