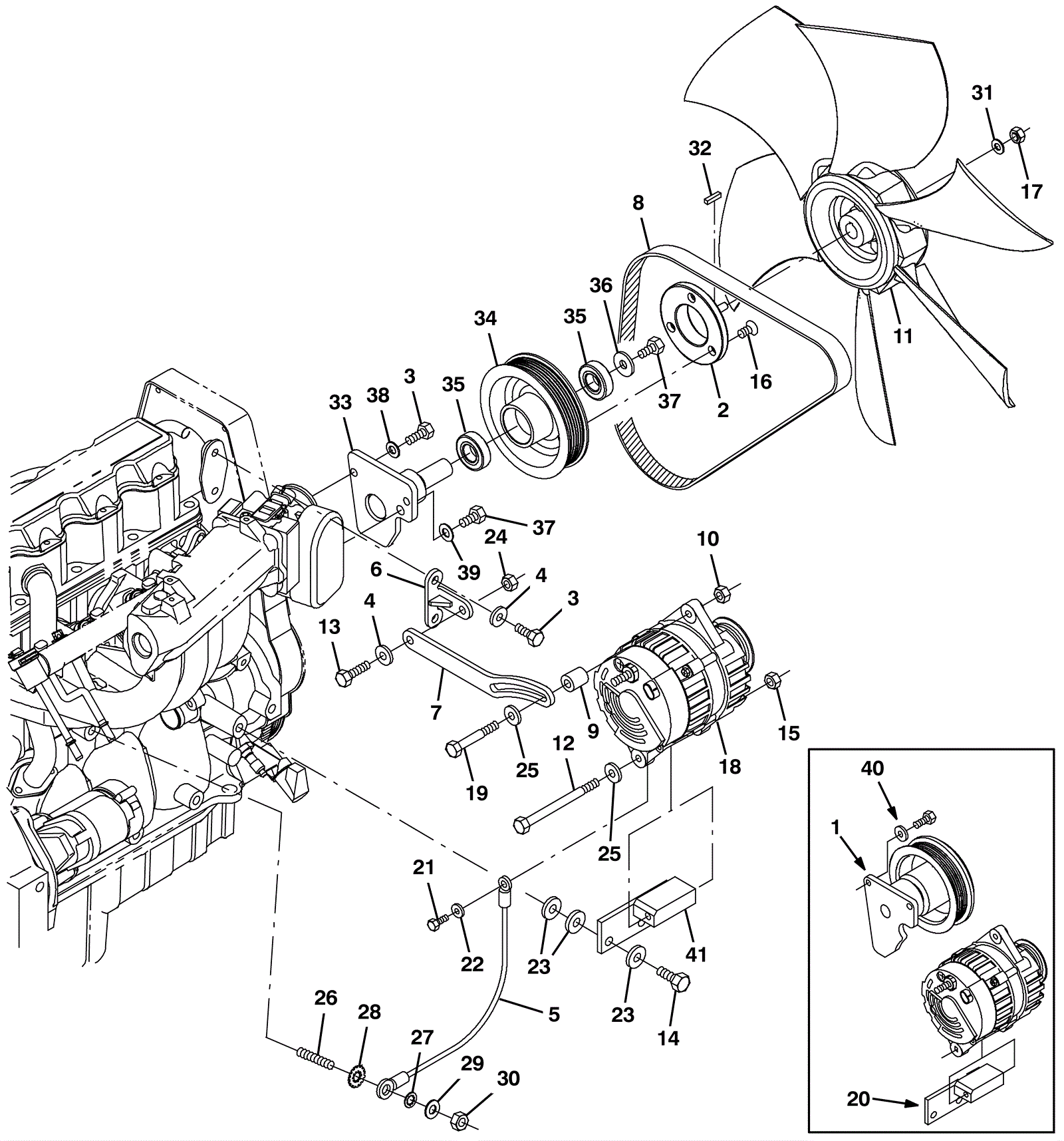

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
275-6646
|
Sheave kit assembly (TENNANT INDUSTRIAL) (OBSOLETE) |
1 |
|
|
2 |
375-0529
|
Taper fan spacer (Tennant Industrial) |
1 |
|
|
3 |
999-1133
|
Bolt M8-1.25 x 20mm hex head full thread plain |
4 |
|
|
4 |
275-6670
|
Washer flat (TENNANT INDUSTRIAL) |
7 |
|
|
5 |
275-6665
|
Ground wire (TENNANT INDUSTRIAL) |
1 |
|
|
6 |
275-6671
|
Anchor bracket (TENNANT INDUSTRIAL) |
1 |
|
|
7 |
275-6672
|
Adjustment strap (TENNANT INDUSTRIAL) |
1 |
|
|
8a |
275-7305
|
Belt (Tennant Industrial) |
1 |
|
|
8b |
991-3074
|
Belt |
1 |
(NON-OEM) |
|
9 |
275-6676
|
Spacer (TENNANT INDUSTRIAL) |
1 |
|
|
10 |
999-0579
|
Nut M8-1.25 hex coarse thread zinc |
1 |
|
|
11 |
375-0530
|
Blade cooling fan (Tennant Industrial) |
1 |
|
|
12 |
275-2115
|
SCREW, HEX, .31-18 X 4.50, G5 (Tennant Industrial) |
1 |
|
|
13 |
275-6698
|
SCREW, HEX, .31-18 X 1.75 G5 (TENNANT INDUSTRIAL) |
1 |
|
|
14 |
175-6774
|
Screw M10-1 1/2 x 20 hex |
2 |
|
|
15 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
1 |
|
|
16 |
275-1130
|
SCREW, FLT, SOC, .38-16 X 0.75, AL (Tennant Industrial) |
3 |
|
|
17 |
999-0471
|
Nut M8-1.25 nylon insert lock zinc plated |
1 |
|
|
18 |
275-6682
|
Alternator (TENNANT INDUSTRIAL) |
1 |
|
|
19 |
175-5337
|
Screw M8 x 1.25 x 60mm hex |
1 |
|
|
20 |
275-6675
|
Alternator bracket kit (TENNANT INDUSTRIAL) |
1 |
|
|
21 |
175-0691
|
SCREW, HEX, 10-24 X 0.50, SS (Tennant Industrial) |
1 |
|
|
22 |
999-0006
|
Washer 3/16 flat zinc plated |
1 |
|
|
23 |
999-0120
|
Washer 3/8 SAE flat |
4 |
|
|
24 |
275-2899
|
NUT, HEX, STD, .31-18 (Tennant Industrial) |
1 |
|
|
25 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
2 |
|
|
26 |
275-0706
|
STUD, M10 X 1.50 [35] (Tennant Industrial) |
1 |
|
|
27 |
999-0201
|
Washer 3/8 internal star lock |
1 |
|
|
28 |
175-8943
|
Washer 3/8 lock internal-external |
1 |
|
|
29 |
999-0120
|
Washer 3/8 SAE flat |
1 |
|
|
30 |
999-1625
|
Nut M10-1.5 hex jam stainless steel |
1 |
|
|
31 |
999-0024
|
Washer 5/16 flat stainless steel |
1 |
|
|
32 |
175-9158
|
Square key 1/8 x 1/8 inch |
1 |
|
|
33 |
375-0531
|
Fan plate weldment (Tennant Industrial) |
1 |
|
|
34 |
375-0532
|
Sheave (Tennant Industrial) (OBSOLETE) |
1 |
|
|
35 |
375-0533
|
Ball bearing (Tennant Industrial) |
2 |
|
|
36 |
275-1169
|
Washer .40 x 12mm flat |
1 |
|
|
37 |
275-2831
|
SCREW, HEX, .38-16 X 0.75, G5 (Tennant Industrial) |
2 |
|
|
38 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
2 |
|
|
39 |
999-0120
|
Washer 3/8 SAE flat |
1 |
|
|
40 |
275-6670
|
Washer flat (TENNANT INDUSTRIAL) |
2 |
|
|
41 |
375-0534
|
Lower alternator bracket weldment (Tennant Industrial) |
1 |
|
|
