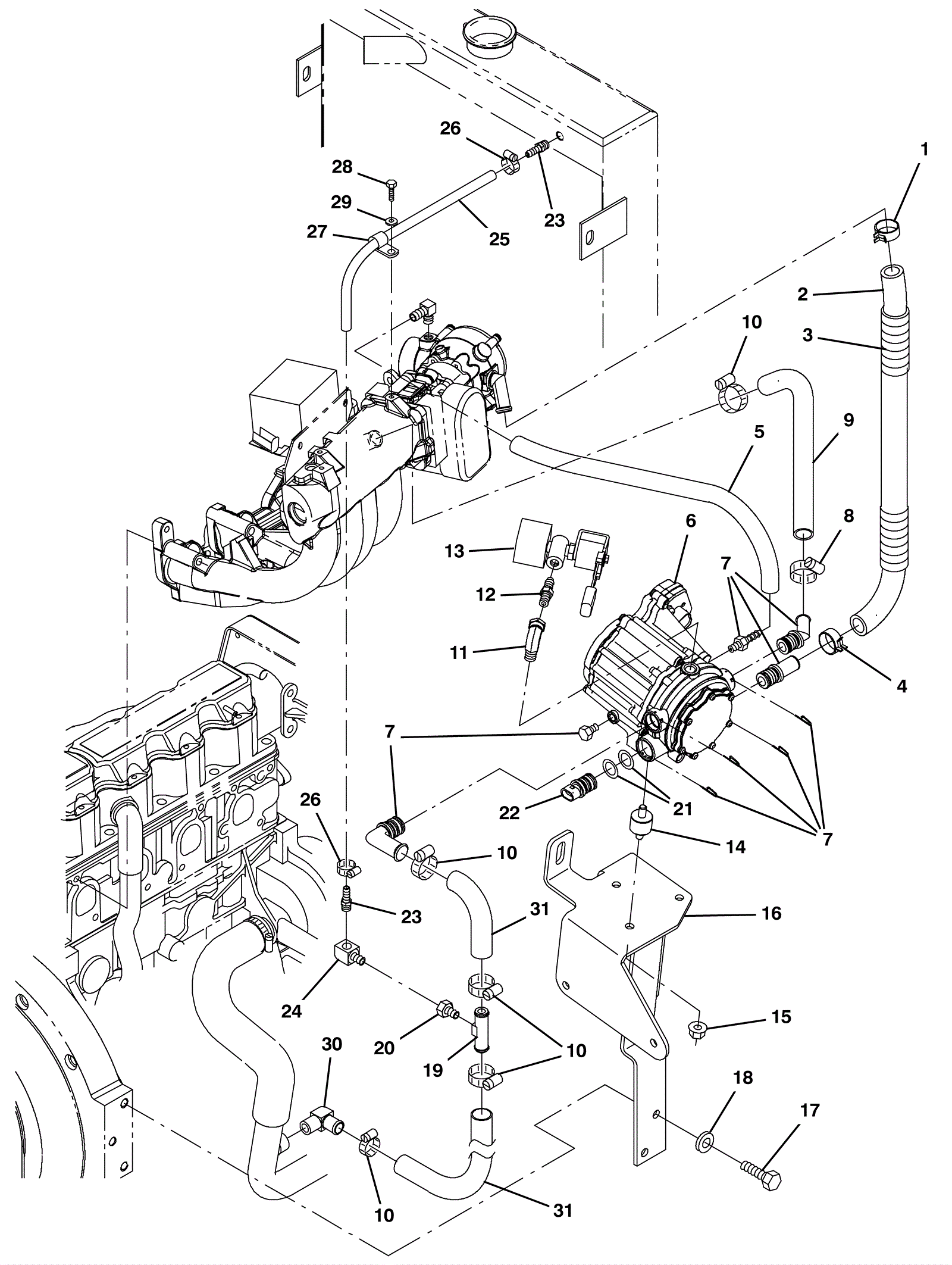

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
375-0505
|
Spring hose clamp (Tennant Industrial) |
1 |
|
|
2 |
375-0506
|
Hose (Tennant Industrial) |
1 |
|
|
3 |
375-0507
|
Hose cover (Tennant Industrial) |
1 |
|
|
4 |
375-0508
|
Spring hose clamp (Tennant Industrial) |
1 |
|
|
5 |
375-0509
|
Gas supply hose (Tennant Industrial) |
1 |
|
|
6 |
275-6104
|
VR, REGULATOR [EP] (Tennant Industrial) |
1 |
|
|
7 |
275-6105
|
VR, FITTING KIT [EPR] (Tennant Industrial) |
1 |
|
|
8 |
375-0510
|
Hose clamp (Tennant Industrial) |
1 |
|
|
9 |
375-0511
|
Hose (Tennant Industrial) |
1 |
|
|
10 |
175-0199
|
Hose clamp |
5 |
|
|
11 |
275-6647
|
Fitting |
1 |
|
|
12 |
375-0512
|
Nipple fitting (Tennant Industrial) |
1 |
|
|
13a |
375-3539
|
Fuel lock valve wire connector (Tennant Industrial) |
1 |
(includes 13b) |
|
13b |
375-0513
|
Gas fuelock filter kit (Tennant Industrial) |
1 |
|
|
14 |
375-0514
|
Isolator (Tennant Industrial) |
3 |
|
|
15 |
999-0665
|
Nut M8-1.25 flange lock |
3 |
|
|
16 |
375-0515
|
LPG regulator bracket weldment (Tennant Industrial) |
1 |
|
|
17 |
375-0516
|
Screw (Tennant Industrial) |
2 |
|
|
18 |
275-6674
|
Washer flat (TENNANT INDUSTRIAL) |
2 |
|
|
19 |
375-0482
|
Air bleed tube (Tennant Industrial) |
1 |
|
|
20 |
375-0483
|
Brass fitting (Tennant Industrial) |
1 |
|
|
21 |
375-0517
|
Temperature sensor seal (Tennant Industrial) |
2 |
|
|
22 |
275-6107
|
VR, SENSOR, TEMP [EPR] (Tennant Industrial) |
1 |
|
|
23 |
175-2613
|
Straight brass fitting |
2 |
|
|
24 |
175-2614
|
90 degree elbow fitting |
1 |
|
|
25 |
375-0484
|
Heater hose (Tennant Industrial) |
1 |
|
|
26 |
175-6081
|
Hose clamp |
2 |
|
|
27 |
175-3168
|
P clamp |
1 |
|
|
28 |
999-0507
|
Bolt M6-1 x 16mm hex head full thread plain finish |
1 |
|
|
29 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
1 |
|
|
30 |
275-6686
|
FITTING, BRS, E90 (TENNANT INDUSTRIAL) |
1 |
|
|
31 |
375-0518
|
Mold hose (Tennant Industrial) |
1 |
(cut in 2) |
|
