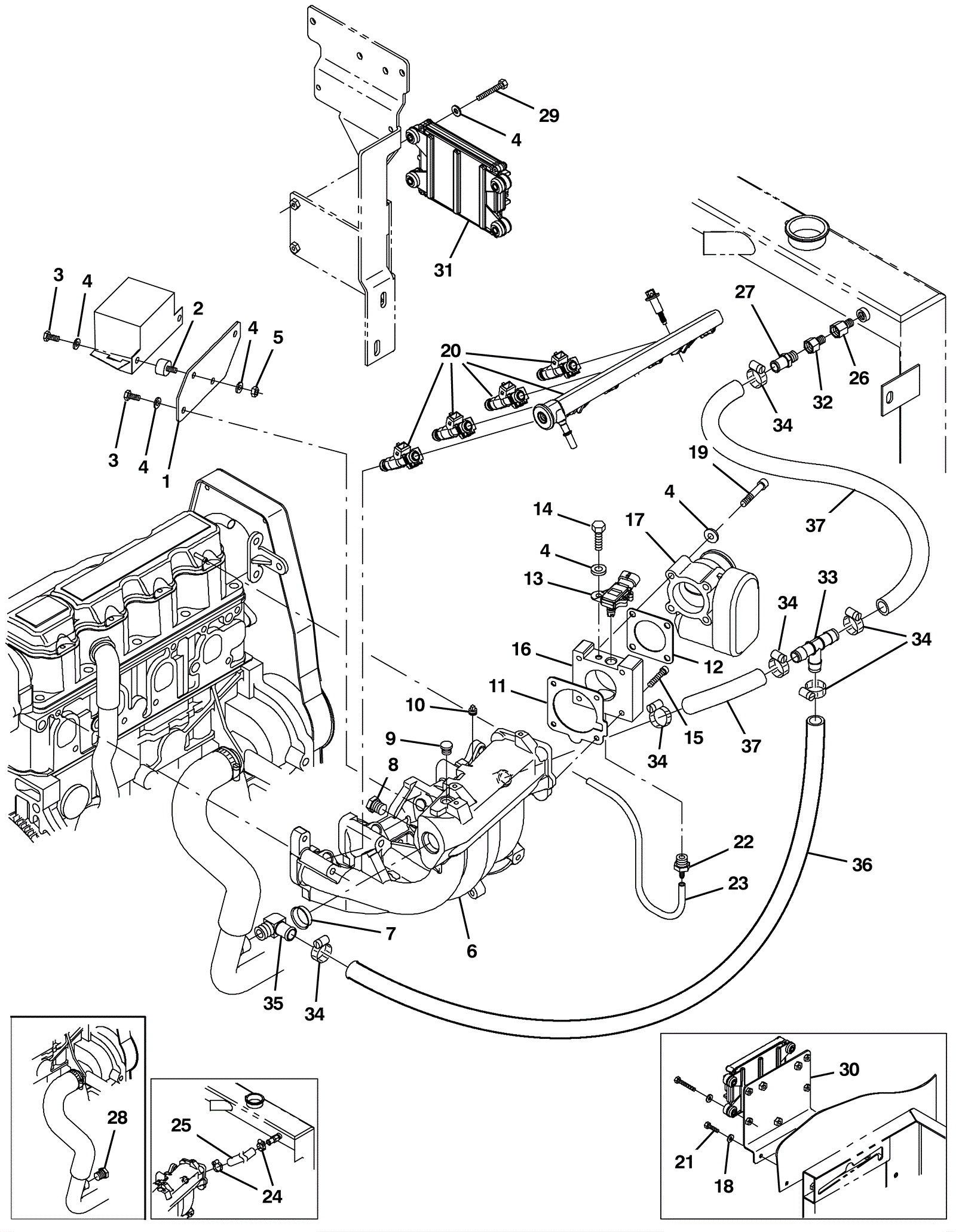

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
375-0465
|
Relay plate (Tennant Industrial) |
1 |
|
|
2 |
375-0466
|
Relay box isolator (Tennant Industrial) |
2 |
|
|
3 |
999-0821
|
Bolt 1/4-20 x 1/2 hex head grade 9 yellow zinc |
4 |
|
|
4 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
13 |
|
|
5 |
999-0190
|
Nut 1/4-20 hex plain finish |
2 |
|
|
6 |
375-0467
|
Intake manifold (Tennant Industrial) |
1 |
|
|
7 |
375-0468
|
Intake manifold plug (Tennant Industrial) |
1 |
|
|
8 |
375-0469
|
Intake manifold plug fitting (Tennant Industrial) |
1 |
|
|
9 |
375-0470
|
Sensor port plug (Tennant Industrial) |
1 |
|
|
10a |
375-0471
|
12 npt plug stainless steel (Tennant Industrial) |
1 |
|
|
10b |
375-0472
|
Gas gasket repair kit (Tennant Industrial) |
1 |
(includes 11 and 12) |
|
11 |
375-0473
|
Intake manifold gasket (Tennant Industrial) |
1 |
|
|
12 |
375-0474
|
Throttle body gasket (Tennant Industrial) |
1 |
|
|
13 |
675-5159
|
VR, SENSOR, SPD, TIMING WHEEL [3.0L] (Tennant Industrial) |
1 |
|
|
14 |
999-0020
|
Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated |
1 |
|
|
15 |
275-2140
|
SCREW, SOC, M6 X 1.00 X 25, 12.9 (Tennant Industrial) |
4 |
|
|
16 |
375-0488
|
Adapter (Tennant Industrial) |
1 |
|
|
17 |
675-6474
|
VR, THROTTLE BODY [MIT , BOSCH] (Tennant Industrial) |
1 |
|
|
18 |
999-0016
|
Washer 1/4 flat plain finish |
2 |
|
|
19 |
275-6576
|
Screw M6-1 x 45mm (Tennant Industrial) |
4 |
|
|
20 |
375-0478
|
Plastic fuel injector rail (Tennant Industrial) |
1 |
|
|
21 |
999-0507
|
Bolt M6-1 x 16mm hex head full thread plain finish |
2 |
|
|
22 |
375-0479
|
Vacuum fitting (Tennant Industrial) |
1 |
|
|
23 |
375-0480
|
Vacuum hose (Tennant Industrial) |
1 |
|
|
24 |
175-0199
|
Hose clamp |
2 |
|
|
25 |
375-0493
|
2 foot rubber heater hose (Tennant Industrial) |
1 |
|
|
26 |
375-0463
|
Brass fitting (Tennant Industrial) |
1 |
|
|
27 |
375-0490
|
Brass fitting (Tennant Industrial) |
1 |
|
|
28 |
375-0491
|
Hydraulic plug fitting (Tennant Industrial) |
1 |
|
|
29 |
175-0574
|
Bolt 6mm-1 x 35 hex head |
4 |
|
|
30 |
375-0487
|
Bracket (Tennant Industrial) |
1 |
|
|
31 |
375-0492
|
Gas module (Tennant Industrial) |
1 |
|
|
32 |
375-0486
|
Orifice adapter fitting (Tennant Industrial) |
1 |
|
|
33 |
175-0747
|
Plastic fitting tee (Tennant Industrial) |
1 |
|
|
34 |
175-0199
|
Hose clamp |
7 |
|
|
35 |
275-6686
|
FITTING, BRS, E90 (TENNANT INDUSTRIAL) |
1 |
|
|
36 |
375-0493
|
2 foot rubber heater hose (Tennant Industrial) |
1 |
|
|
37 |
275-6149
|
Radiator hose (TENNANT INDUSTRIAL) |
1 |
(cut in two) |
|
